Product Details

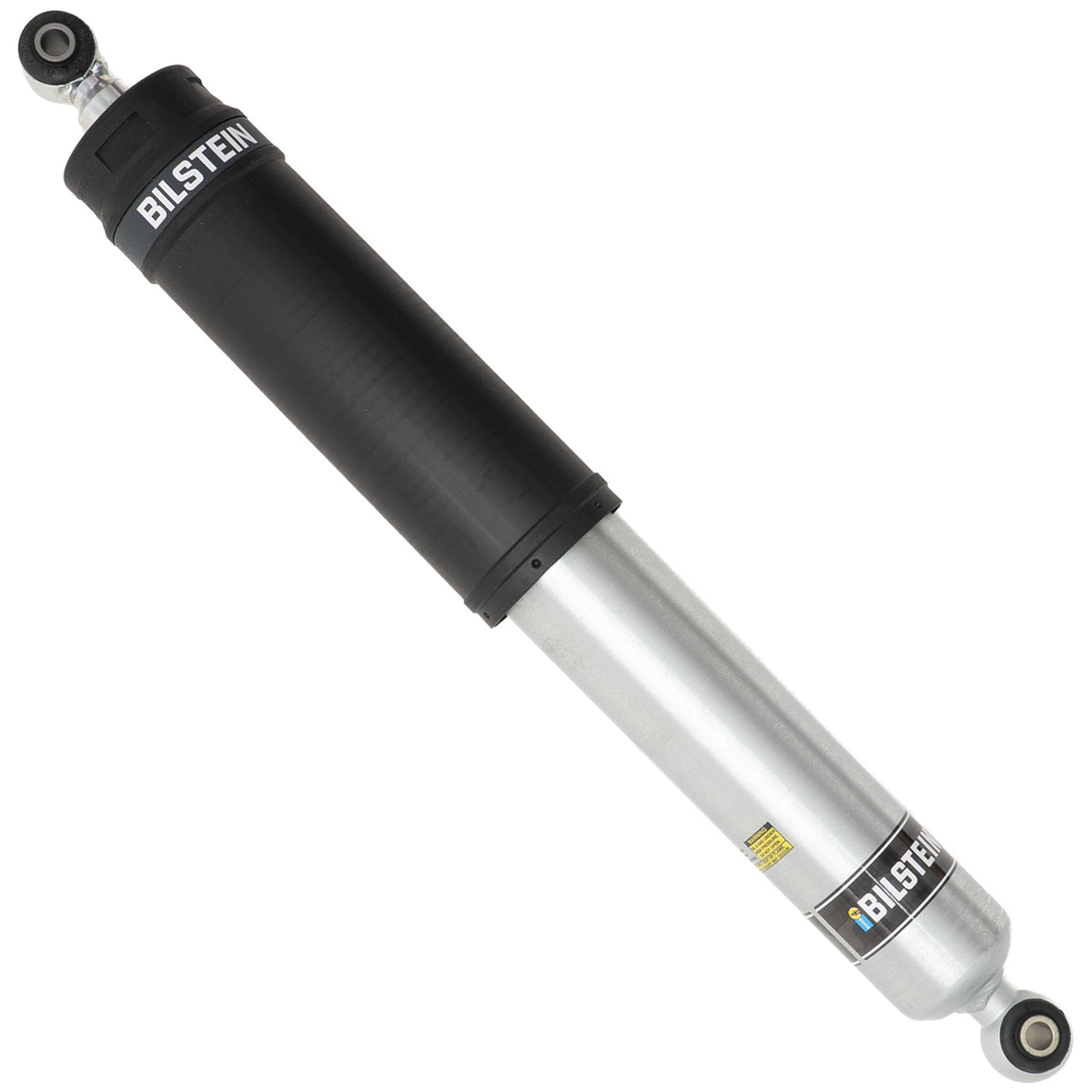

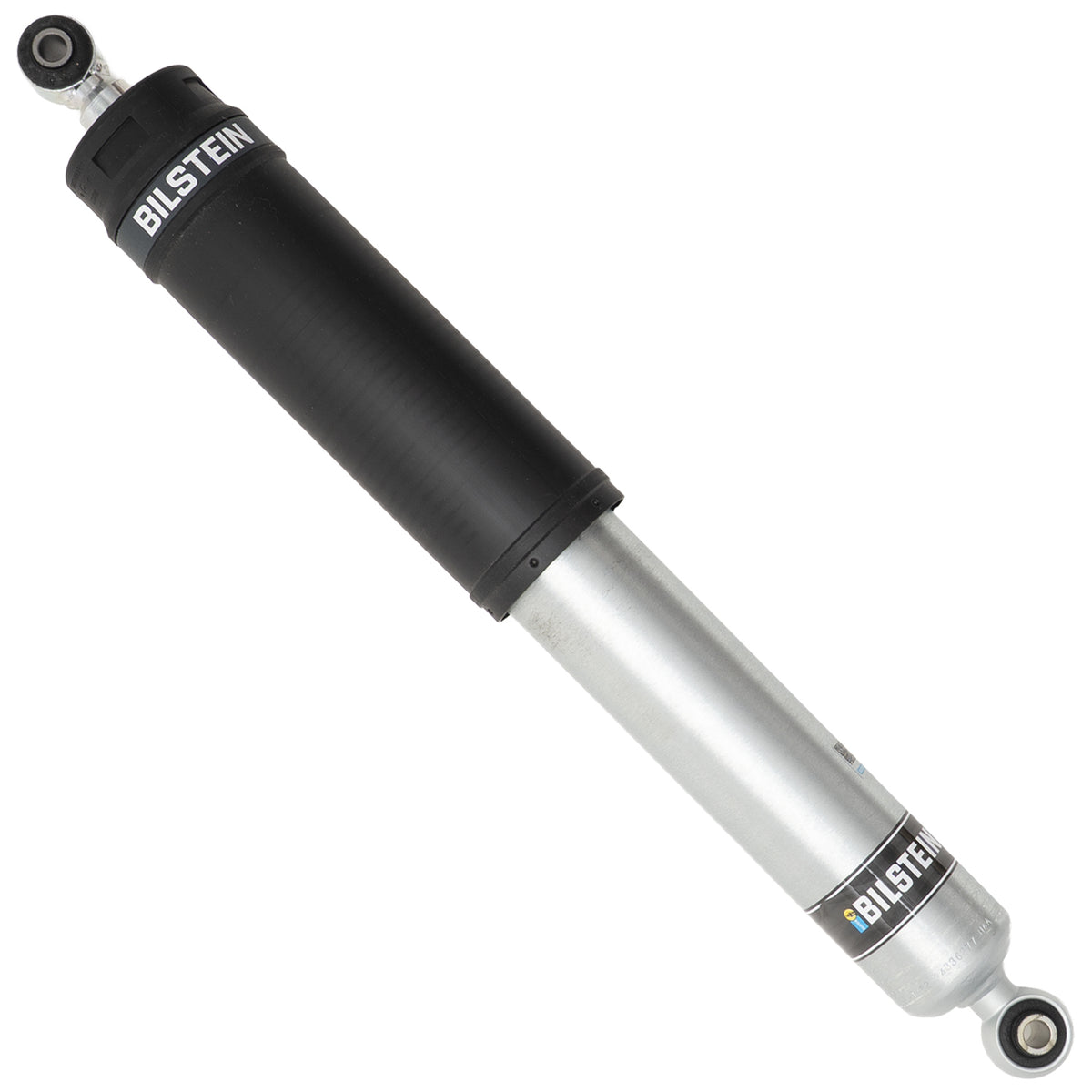

Lifting a 2024-2026 Ford Ranger changes what the dampers must do. The Bilstein B8 rear shock absorber is built for that and stay composed on rough ground.
The B8 6100 is a monotube gas shock with a 2.65 in. body and 60mm digressive piston, which carries more oil for heat dissipation and less foaming, for control over rough terrain.
Bilstein invented the monotube gas damper and has built suspension in Germany since 1954. The same engineering that goes into their original-equipment contracts goes into this part, and it carries a limited lifetime warranty.
Features
- 60mm digressive piston improves ride comfort and control over rough terrain
- Vehicle specific tuning
- Large 60mm body for increased oil capacity, cooling, and long-term durability
Specifications
| Part Number | 24-336277 |
| Part Name | Rear Shock Absorber |
| Vehicle | 2024-2026 Ford Ranger |
| Vehicle Placement | Rear |
| Series | B8 6100 |
| Quantity | 2 per Vehicle |
| Weight | 9.00 lb |
| Collapsed Length | 16.22 in. |
| Extended Length | 24.41 in. (620mm) |
| Stroke | 8.19 in. (208.1mm) |
| Body Design | Smooth Body (Non-coilover) |
| Internal Design | Monotube |
| Piston Diameter | 60mm |
| Shaft Diameter | 18mm |
| Upper Mount Type | Eye 12.1mm |
| Lower Mount Type | Eye 12.1mm |
| Boot Included | Black Straight |
| Spring Seat Included | No |
| Reservoir | No |
| Damping Adjustable | No |
| Finish | Zinc Plated |
| Segment | Light Truck |
| Notes | - |
