Product Details

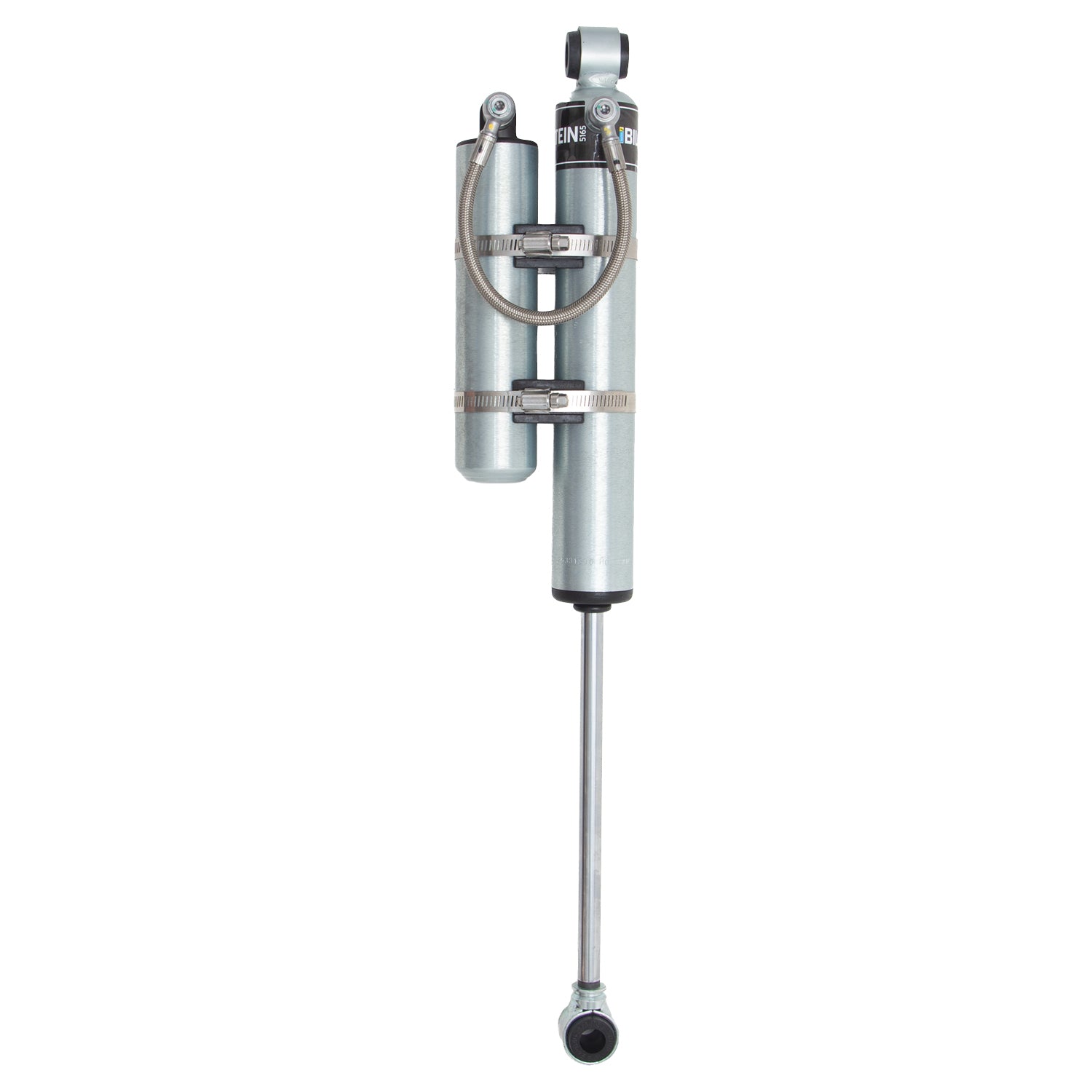

The Bilstein B8 5165 shock absorber is specified by dimension rather than by vehicle, here at 22.04 in. extended. It is the part you reach for when the build does not match a catalog application and you need a damper sized to the car you actually have.
Inside is Bilstein's monotube design, gas and oil separated by a floating piston. That is what keeps the damping honest when the surface turns rough and the temperature climbs.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
- Remote reservoir increases shock oil capacity for greater heat dissipation
Specifications
| Part Number | 25-331837 |
| Part Name | Shock Absorber |
| UPC | 651860910185 |
| Body Design | Smooth Body (Non-Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | No |
| Collapsed Length (Rounded) | 13 in. |
| Collapsed Length | 13.25 in. (336.5 mm) |
| Compression @ 0.52m/s | 2265 |
| Damping Adjustable | No |
| Extended Length (Rounded) | 22 in. |
| Extended Length | 22.04 in. (559.7 mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 5/8 in. |
| Mount Type | Stem-to-Eye |
| Optional Reservoir Clamp | 11-176015 |
| Rebound @ 0.52m/s | 3590 |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 5165 |
| Spring Seat Included | No |
| Upper Mount Type | Stem |
| Quantity | Sold Individually |
