Product Details

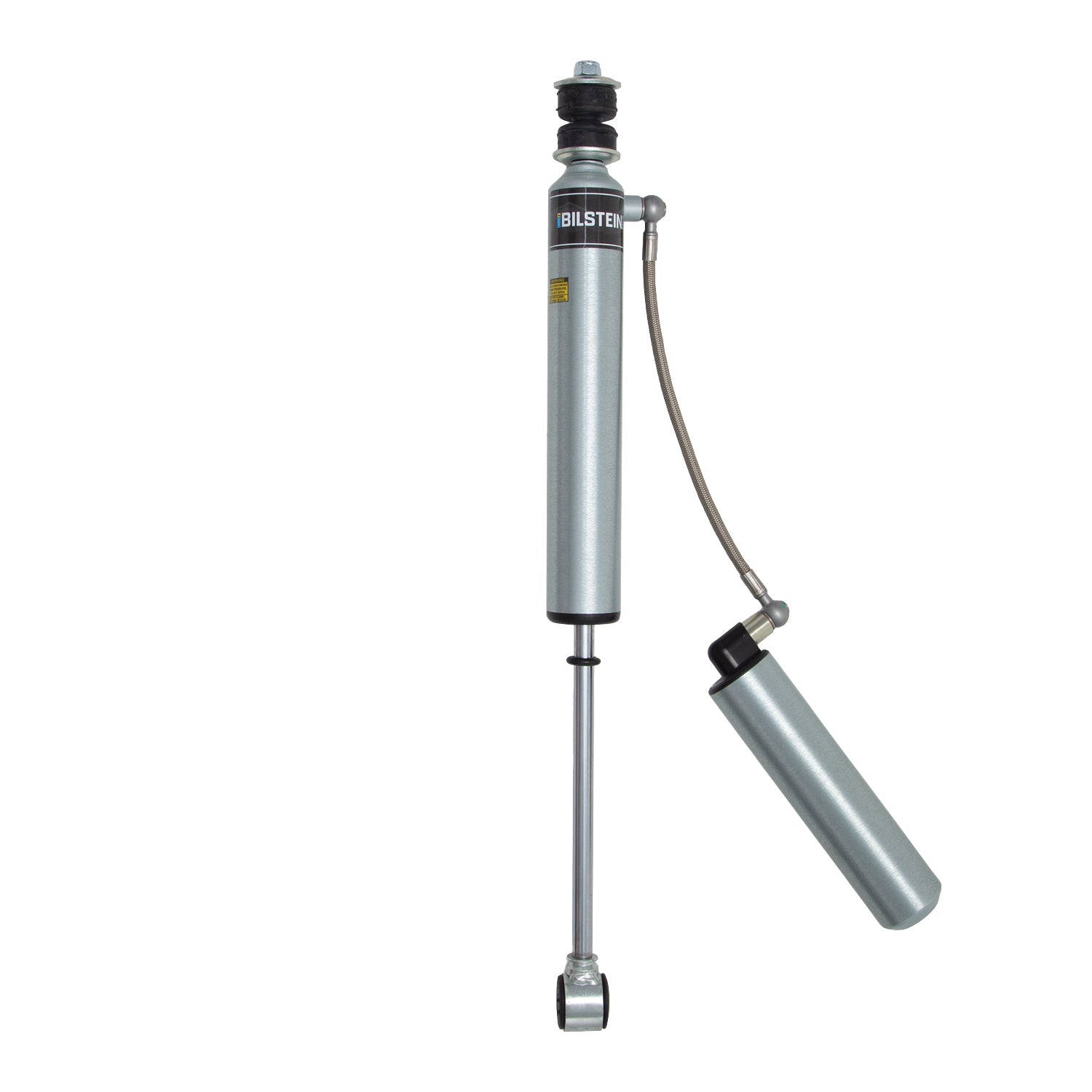

The Bilstein B8 shocks are built for a 2001-2006 Chevrolet Silverado 3500 that has been lifted or leveled, valved for the taller ride height rather than fighting it.
Inside is Bilstein's monotube design, with the gas and oil separated by a floating piston. That keeps damping consistent when the road turns rough and the unit gets hot, where a lesser damper would go soft.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
- Remote reservoir increases shock oil capacity for greater heat dissipation
Specifications
| Part Number | 25-311839 |
| Part Name | Shock Absorber |
| Vehicle | 2001-2006 Chevrolet Silverado 3500 |
| Drivetrain | 4WD |
| UPC | 651860911465 |
| Front Lift Height | 4 - 6 in. |
| Billet Reservoir Clamp Included | No |
| Body Design | Smooth Body (Non-Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | No |
| Collapsed Length | 13.48 in. (342.5 mm) |
| Damping Adjustable | No |
| Extended Length | 22.51 in. (571.7 mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.1 mm |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 5160 |
| Spring Seat Included | No |
| Upper Mount Type | Stem |
| Quantity | Sold Individually |
| Notes | Without ZX3 Electronic Suspension Package and Quadrasteer |
