Product Details

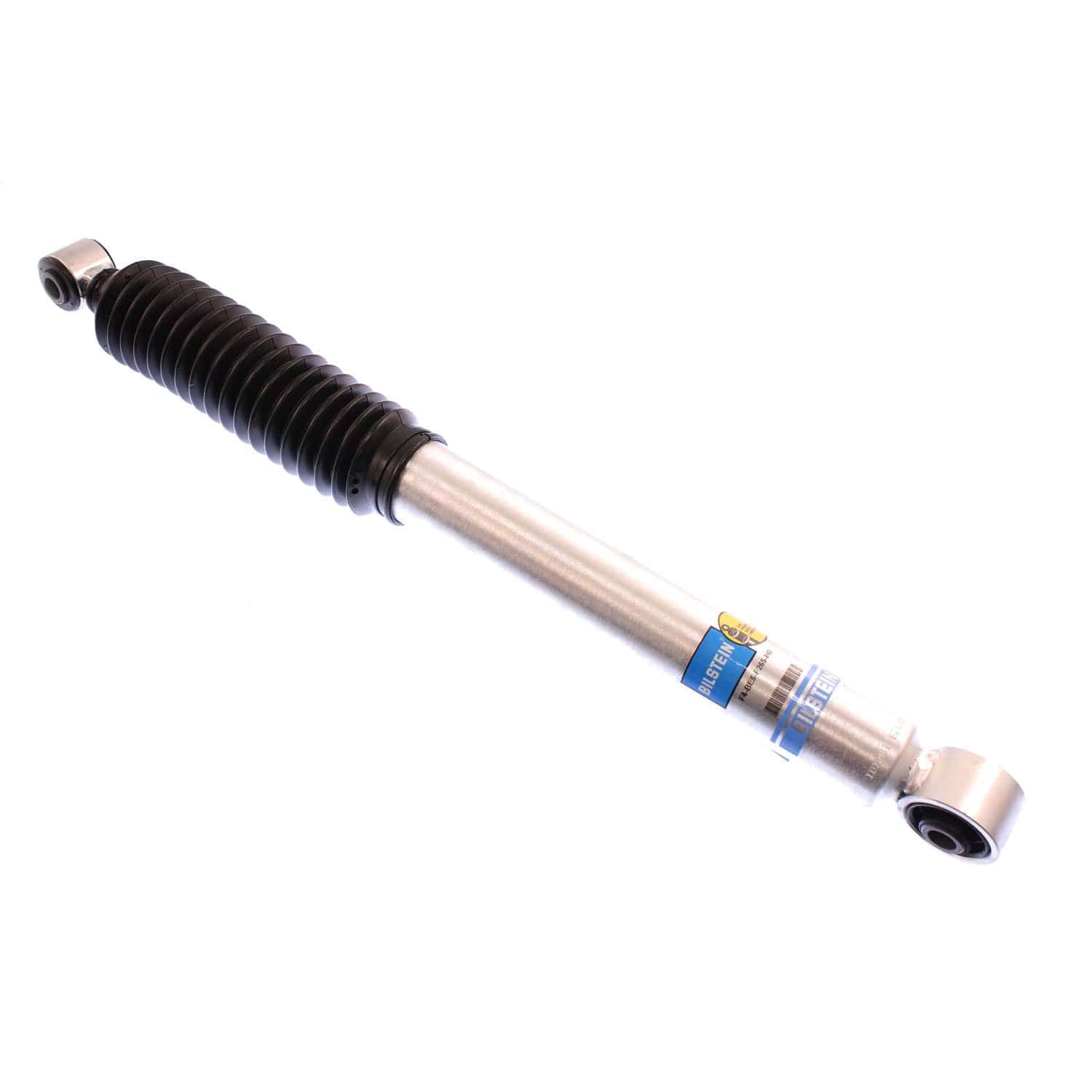

The Bilstein B8 shocks are built for a 2007-2013 Chevrolet Avalanche that has been lifted or leveled, valved for the taller ride height rather than fighting it.
The B8 5100 is Bilstein's direct fit monotube shock for lifted trucks and SUVs. Its velocity sensitive, digressive piston gives consistent, fade-free damping, and each shock is tuned for its application.
The monotube design is what sets Bilstein apart. A single high-pressure gas chamber keeps the oil from aerating, so the damping stays consistent on a rough road instead of fading as the unit heats up.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Part Number | 24-187237 |
| Part Name | Shock Absorber |
| Vehicle | 2007-2013 Chevrolet Avalanche |
| Drivetrain | RWD/4WD |
| UPC | 651860614243 |
| Rear Lift Height | 0 - 1 in. |
| Body Design | Smooth Body (Non-Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | Black Bellows |
| Collapsed Length | 15.55 in. (395.0 mm) |
| Damping Adjustable | No |
| Extended Length | 24.33 in. (618.0 mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.1 mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 |
| Spring Seat Included | No |
| Upper Mount Type | Eye 14.1 mm |
| Quantity | Sold Individually |
| Stroke | 8.78 in. (223mm) |
| Piston Diameter | 46mm |
| Shaft Diameter | 14mm |
| Notes | if using rear stock shock relocation bracket; Without Z55 Autoride Suspension Package; If vehicle is equipped with ZW7 Premium Smooth Ride Nivomat Suspension you must purchase Bilstein spring part number 199020 in addition to the damper |
