Product Details

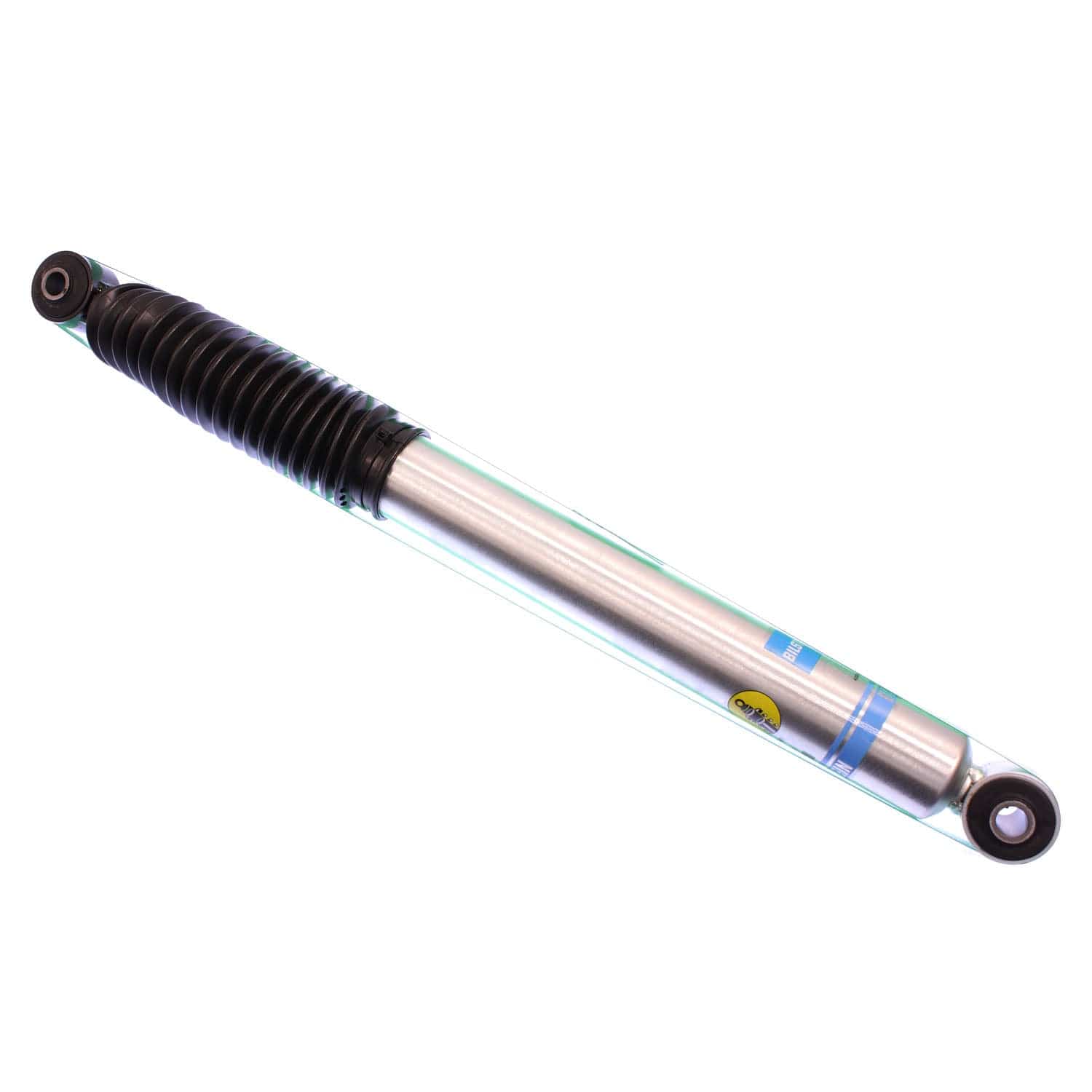

The Bilstein B8 shocks are built for a 2001-2006 GMC Sierra 3500 that has been lifted or leveled, valved for the taller ride height rather than fighting it.
This is a direct-fit part. It mounts in the original locations with the original hardware, so nothing needs modifying, and it carries Bilstein's limited lifetime warranty.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Part Number | 24-191203 |
| Part Name | Shock Absorber |
| Vehicle | 2001-2006 GMC Sierra 3500 |
| Drivetrain | RWD |
| UPC | 651860558202 |
| Rear Lift Height | 2 in. |
| Body Design | Smooth Body (Non-Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | Black Bellows |
| Collapsed Length | 16.95 in. (430.5 mm) |
| Damping Adjustable | No |
| Extended Length | 27.36 in. (695.0 mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.4 mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 |
| Spring Seat Included | No |
| Upper Mount Type | Eye 14.4 mm |
| Quantity | Sold Individually |
| Notes | Without ZX3 Electronic Suspension Package and Quadrasteer |
