Product Details

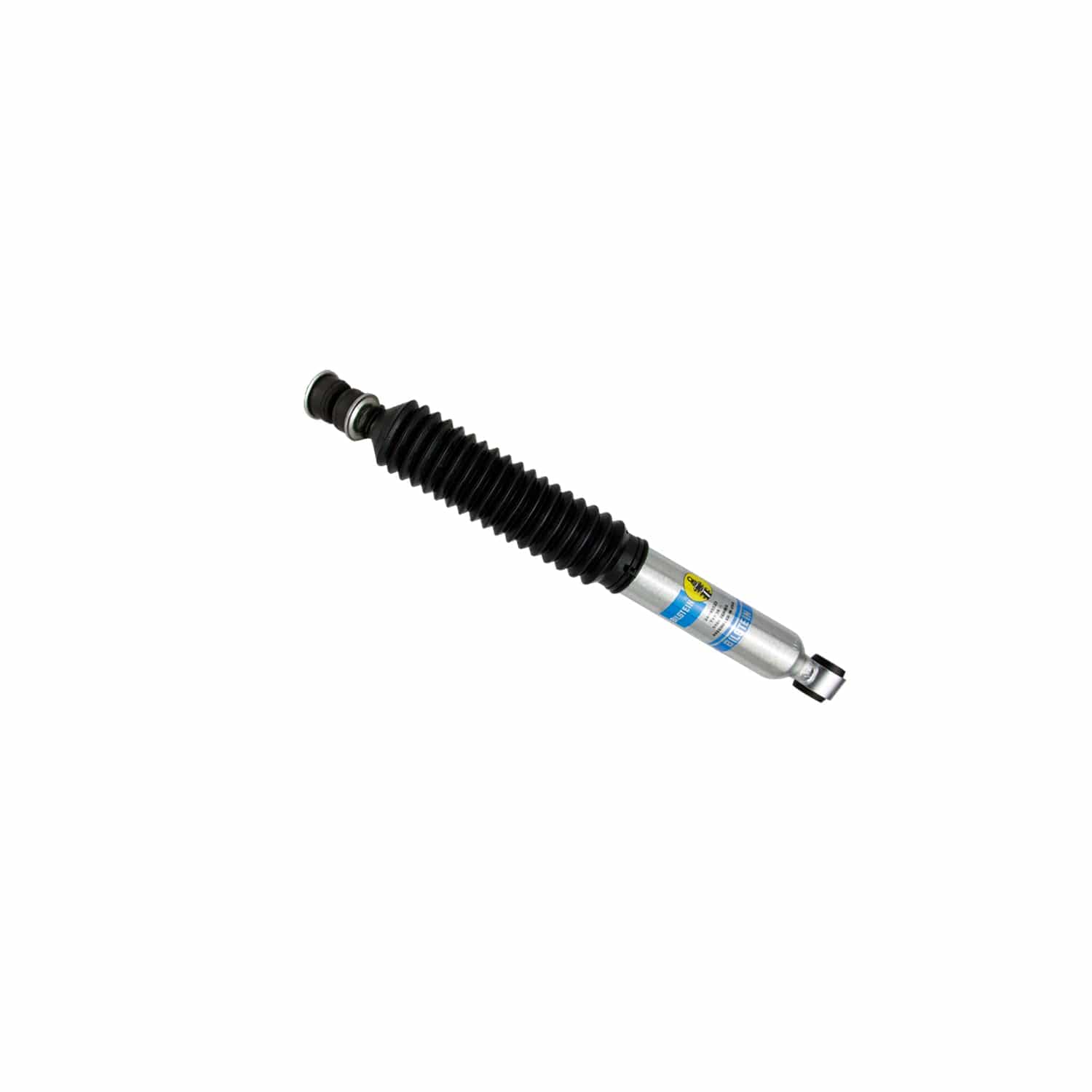

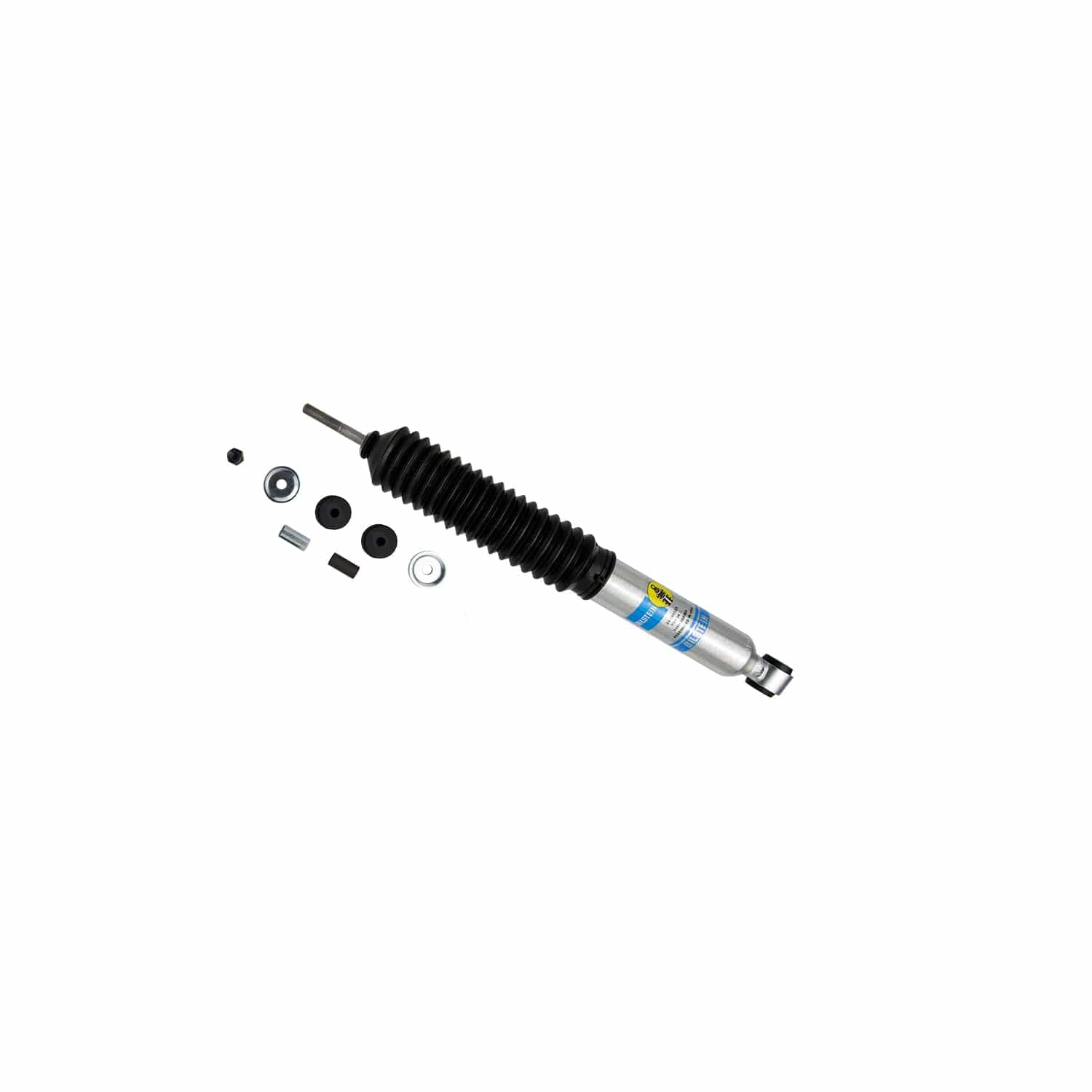

The Bilstein B8 shocks are built for a 1999-2016 Ford F-250 Super Duty that has been lifted or leveled, valved for the taller ride height rather than fighting it.
The monotube design is what sets Bilstein apart. A single high-pressure gas chamber keeps the oil from aerating, so the damping stays consistent on a rough road instead of fading as the unit heats up.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Part Number | 24-185523 |
| Part Name | Shock Absorber |
| Vehicle | 1999-2016 Ford F-250 Super Duty |
| Drivetrain | RWD |
| UPC | 651860453651 |
| Front Lift Height | 4 in. |
| Body Design | Smooth Body (Non-Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | Blue Straight |
| Collapsed Length | 12.17 in. (309.0 mm) |
| Damping Adjustable | No |
| Extended Length | 18.98 in. (482.2 mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 16 mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 |
| Spring Seat Included | No |
| Upper Mount Type | Stem |
| Quantity | Sold Individually |
| Notes | With Stock Radius Arms |
