Product Details

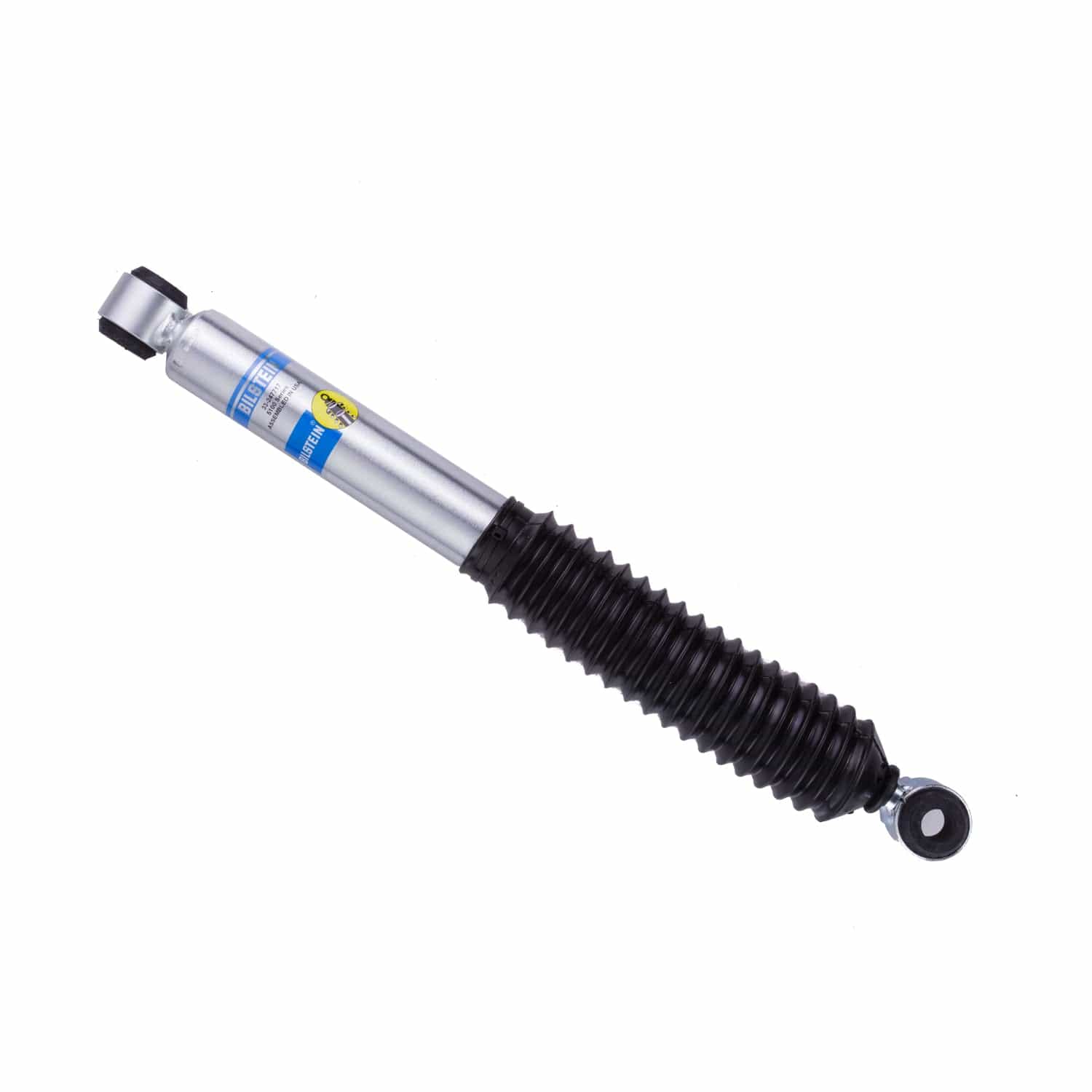

The Bilstein B8 shocks are built for a 1996-2004 Toyota Tacoma that has been lifted or leveled, valved for the taller ride height rather than fighting it.
Bilstein invented the monotube gas damper and has been building suspension in Germany since 1954. Every unit is built to the same standard the company supplies to the manufacturers themselves, and it is backed by a limited lifetime warranty.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Part Number | 33-247717 |
| Part Name | Shock Absorber |
| Vehicle | 1996-2004 Toyota Tacoma |
| Drivetrain | 4WD |
| UPC | 651860764603 |
| Rear Lift Height | 1 - 1.5 in. |
| Body Design | Smooth Body (Non-Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | Black Bellows |
| Collapsed Length | 14.07 in. (357.5 mm) |
| Damping Adjustable | No |
| Extended Length | 22.09 in. (561.0 mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 19 mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 |
| Spring Seat Included | No |
| Upper Mount Type | Eye 19 mm |
| Quantity | Sold Individually |
| Notes | A minimum 1" lift block is required for this application |
