Product Details

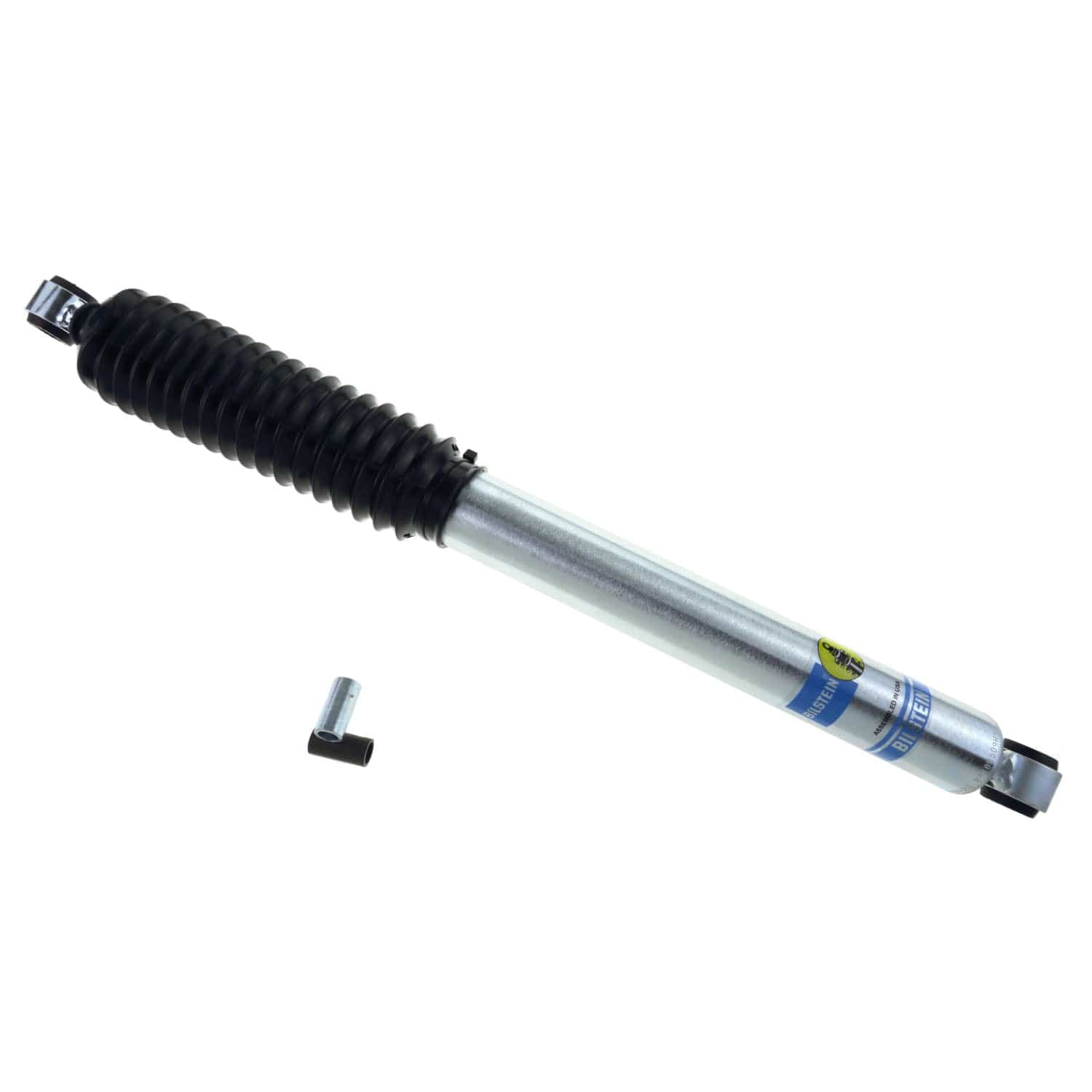

The Bilstein B8 shocks are built for a 1983-2011 Ford Ranger (TTB/SLA) that has been lifted or leveled, valved for the taller ride height rather than fighting it.
This is a direct-fit part. It mounts in the original locations with the original hardware, so nothing needs modifying, and it carries Bilstein's limited lifetime warranty.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Part Number | 24-185509 |
| Part Name | Shock Absorber |
| Vehicle | 1983-2011 Ford Ranger |
| Chassis Code | TTB/SLA |
| Drivetrain | RWD/4WD |
| UPC | 651860453590 |
| Rear Lift Height | 0 - 1 in. |
| Body Design | Smooth Body (Non-Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | Black Bellows |
| Collapsed Length | 16.14 in. (410.0 mm) |
| Damping Adjustable | No |
| Extended Length | 26.16 in. (664.5 mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 16 mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 |
| Spring Seat Included | No |
| Upper Mount Type | Eye 16 mm |
| Quantity | Sold Individually |
| Notes | - |
