Product Details
Lifting or leveling a 2022-2026 Nissan Frontier (D41) changes what the dampers have to do. The Bilstein B8 shocks are built for that taller stance and stay composed on rough ground.

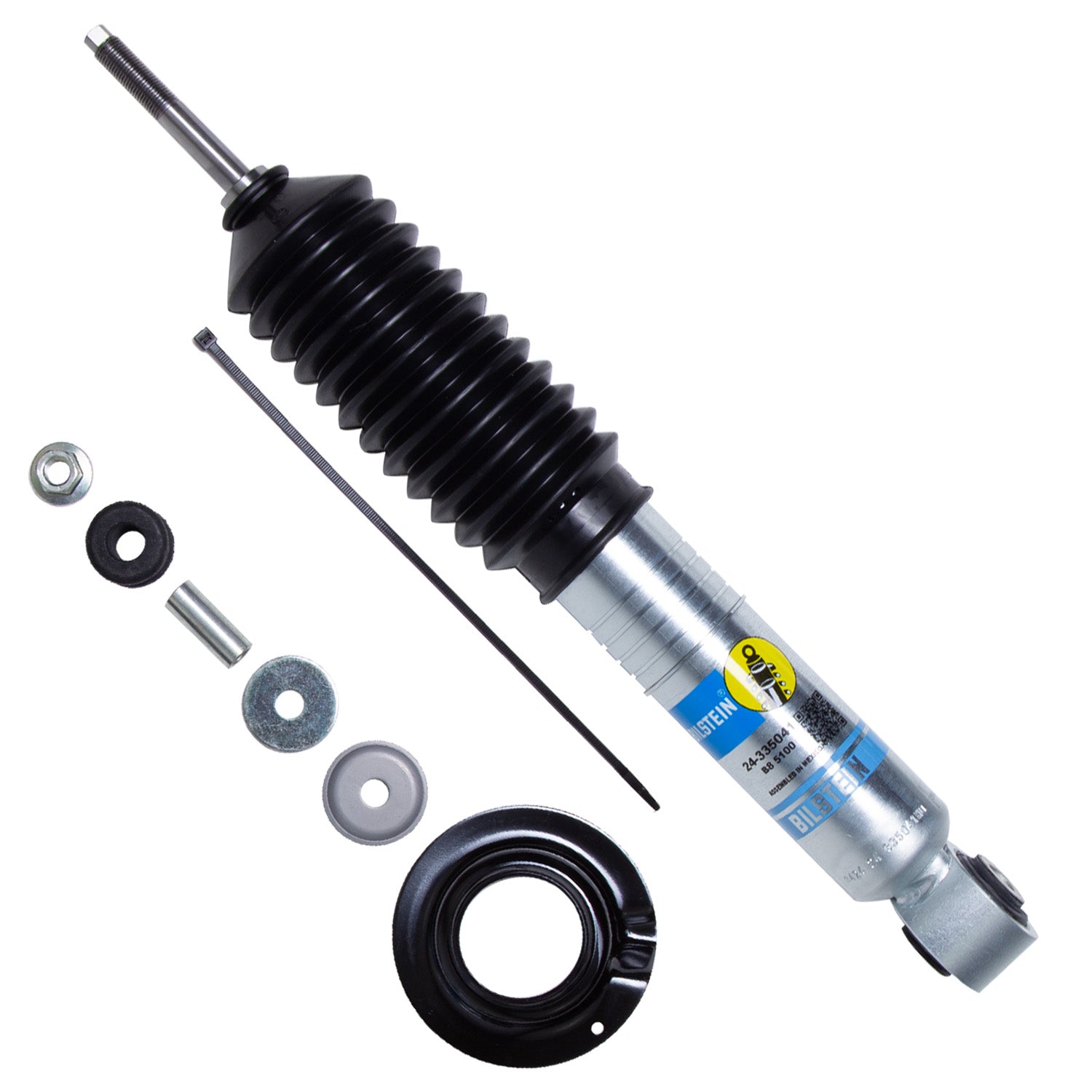

The B8 5100 ride height adjustable shock is for trucks and SUVs with a factory front coilover. Snap-ring grooves in the body set the spring seat height, giving front lift with the factory springs, the amount depending on the truck. It is an alternative to spring spacers with a 46mm monotube design and digressive piston.
This is a direct-fit part. It mounts in the original locations with the original hardware, so nothing needs modifying, and it carries Bilstein's limited lifetime warranty.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
Specifications
| Part Number | 24-335041 |
| Part Name | Shock Absorber |
| Vehicle | 2022-2026 Nissan Frontier |
| Chassis Code | D41 |
| UPC | 651860920108 |
| Front Lift Height | 0 - 2 in. |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | Black Bellows |
| Collapsed Length | 10.69 in. (271.5 mm) |
| Damping Adjustable | No |
| Extended Length | 15.18 in. (385.5 mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.1 mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 (Ride Height Adjustable) |
| Spring Seat Included | Yes |
| Upper Mount Type | Stem |
| Quantity | Sold Individually |
| Stroke | 4.49 in. (114.1mm) |
| Piston Diameter | 46mm |
| Shaft Diameter | 14mm |
| Notes | - |
