Product Details

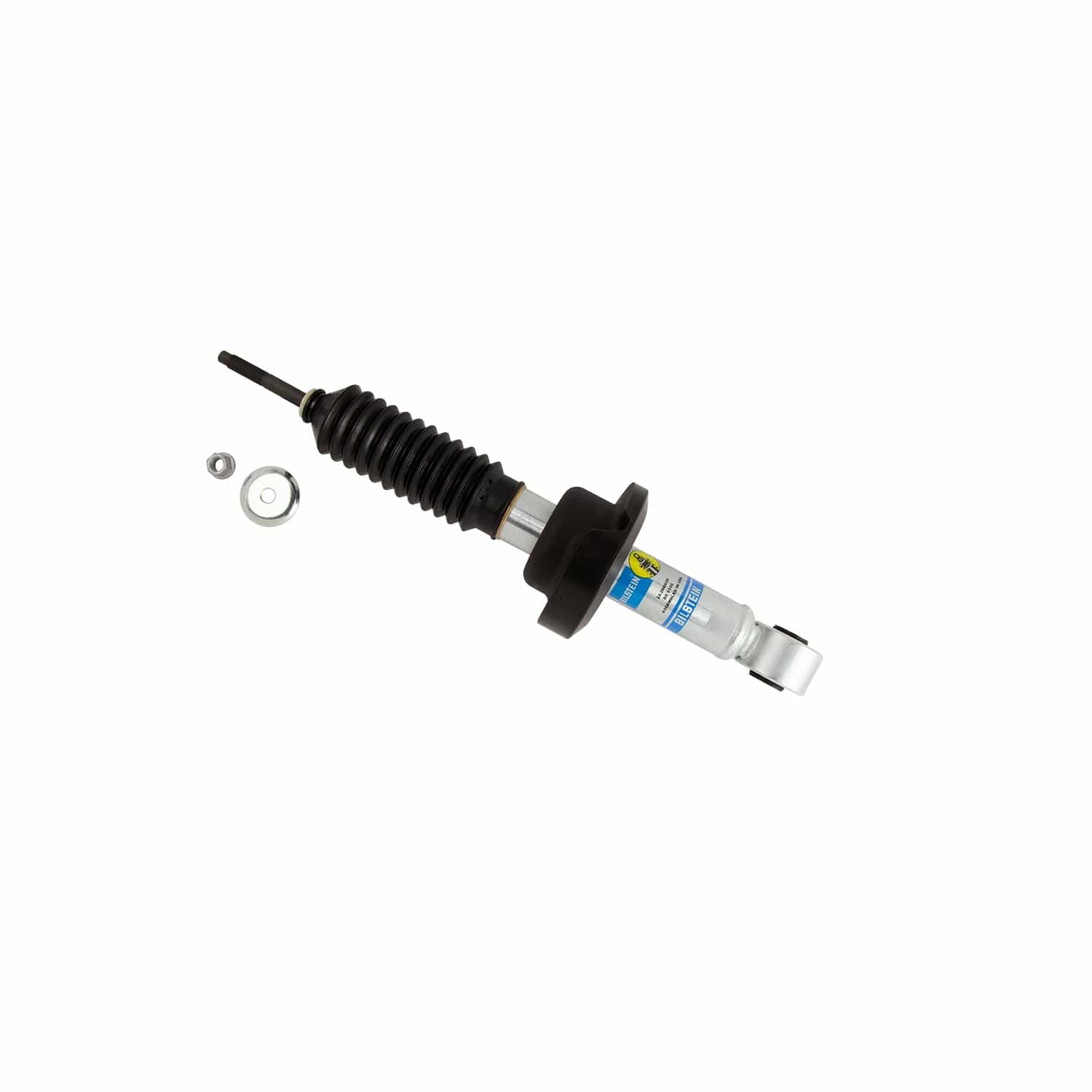

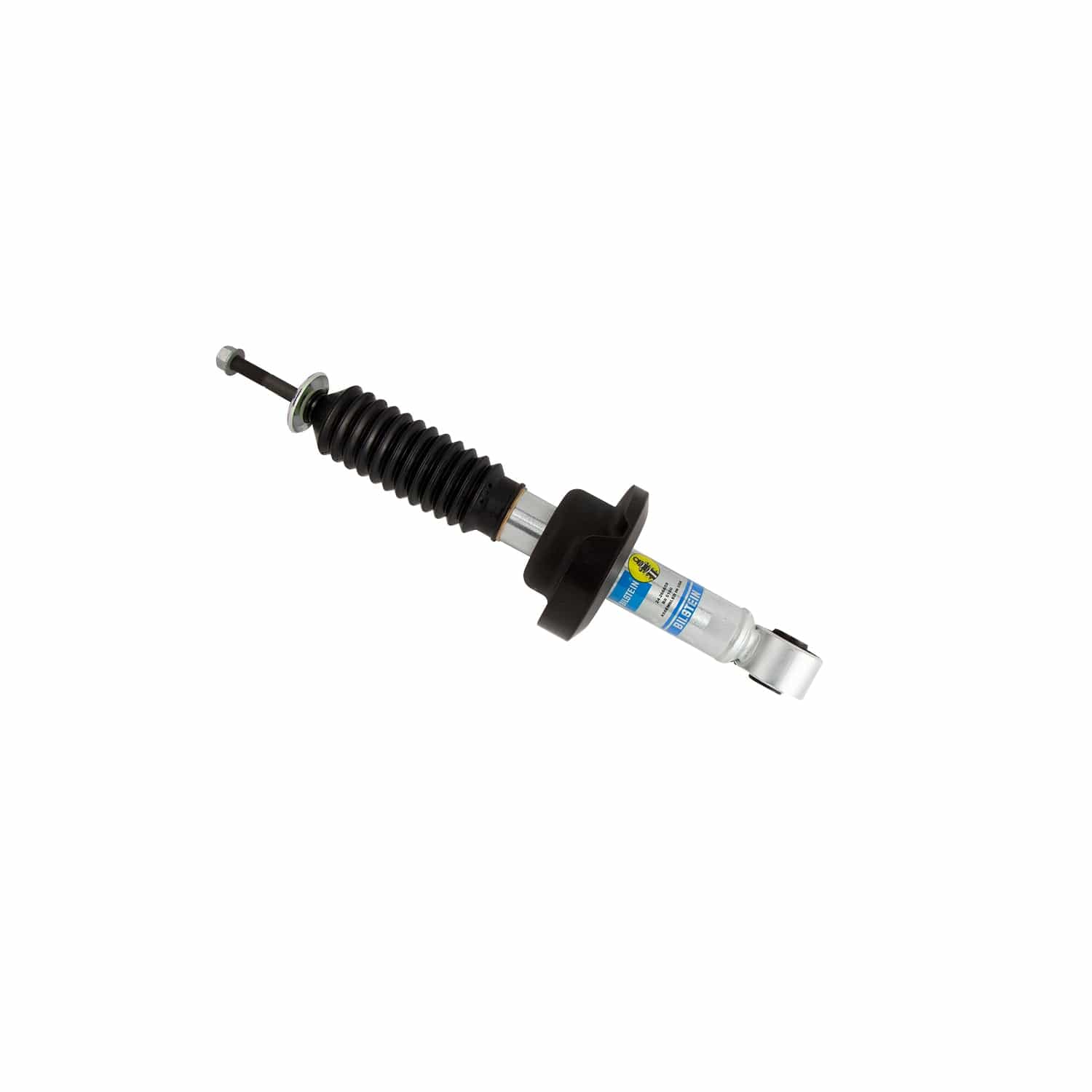

Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers for the 2016-2024 Nissan TITAN XD (A61) are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube Shock Absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) Shock Absorber is the easiest way to level out your vehicle.
Standard Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
Specifications
| Part Number | 24-266659 |
| Part Name | Shock Absorber |
| Vehicle | 2016-2024 Nissan TITAN XD |
| Chassis Code | A61 |
| UPC | 651860804736 |
| Front Lift Height | 0 - 2 in. |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | Black Bellows |
| Collapsed Length | 11.26 in. |
| Collapsed Length | 286.1 mm |
| Damping Adjustable | No |
| Extended Length | 16.41 in. |
| Extended Length | 416.9 mm |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 16 mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 (Ride Height Adjustable) |
| Spring Seat Included | Yes |
| Upper Mount Type | Stem |
| Quantity | Sold Individually |
Vehicle Fitment
- 2016 Nissan TITAN XD (A61)
- 2017 Nissan TITAN XD (A61)
- 2018 Nissan TITAN XD (A61)
- 2019 Nissan TITAN XD (A61)
- 2020 Nissan TITAN XD (A61)
- 2021 Nissan TITAN XD (A61)
- 2022 Nissan TITAN XD (A61)
- 2023 Nissan TITAN XD (A61)
- 2024 Nissan TITAN XD (A61)
