Product Details

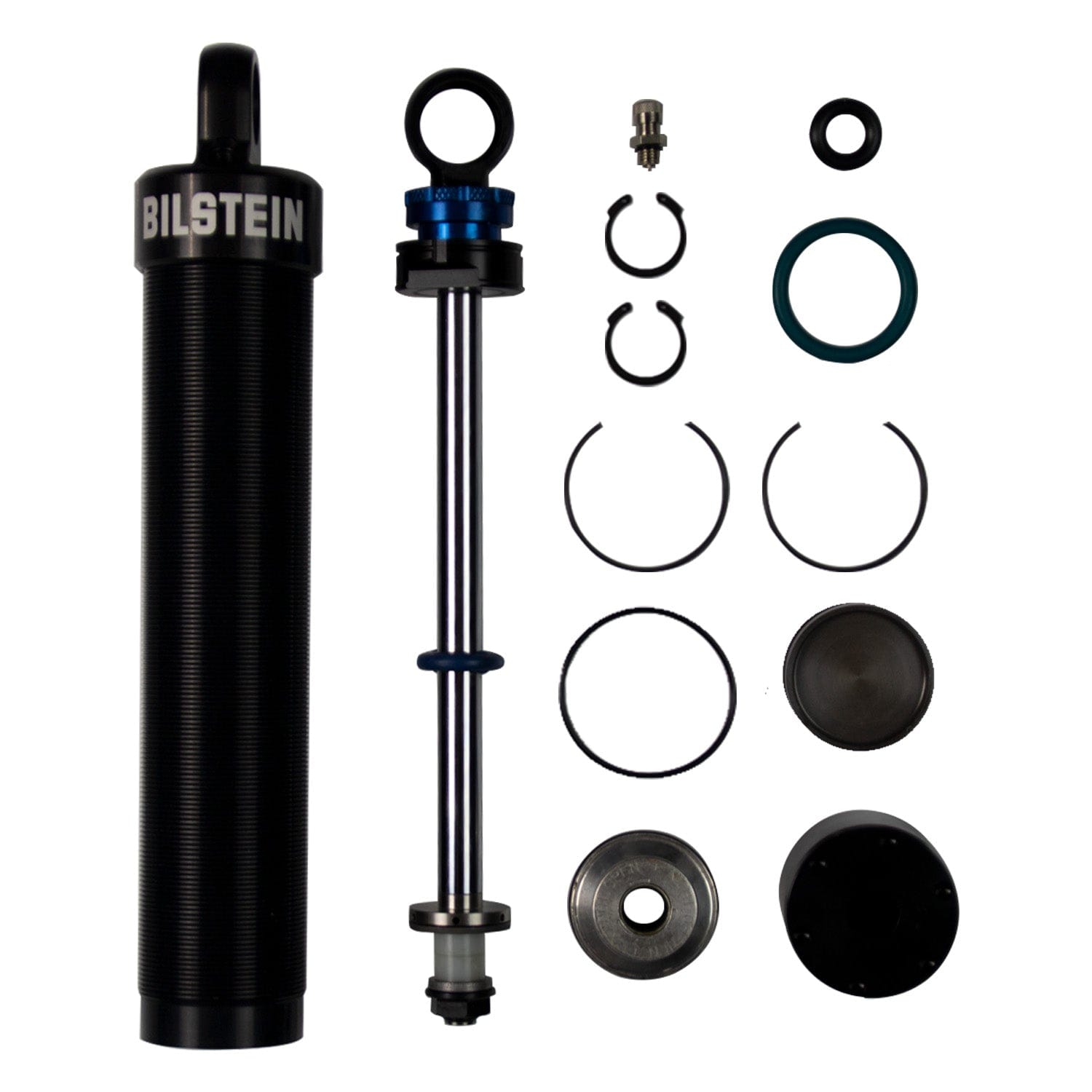

At 13.24 in. collapsed: The Bilstein AS2 Series shock absorber is a universal-fit part, chosen on collapsed and extended length rather than a year-make-model lookup. Fabricators, restorers, and race teams buy these to suit a custom setup.
Inside is Bilstein's monotube design, gas and oil separated by a floating piston. That is what keeps the damping honest when the surface turns rough and the temperature climbs.
Features

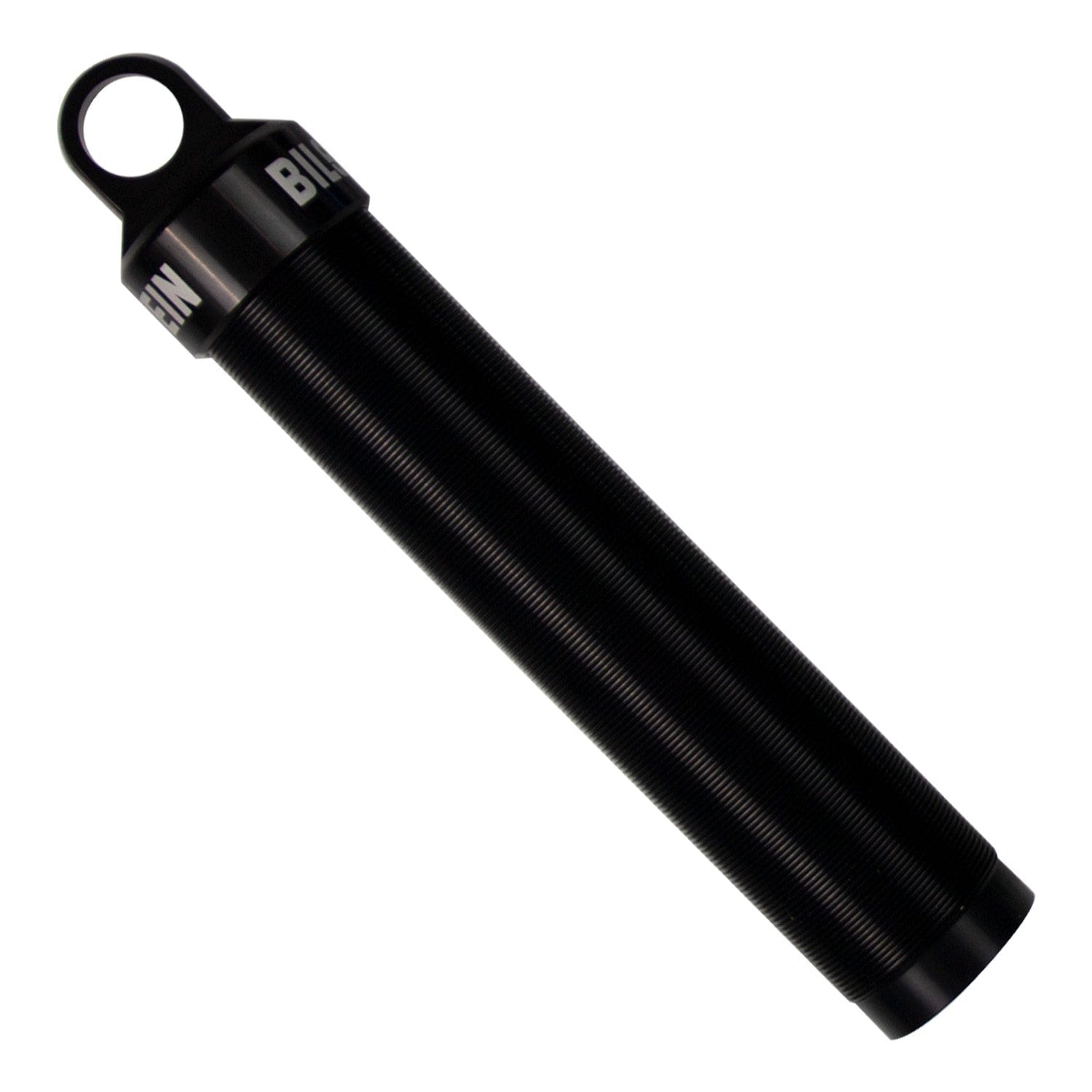

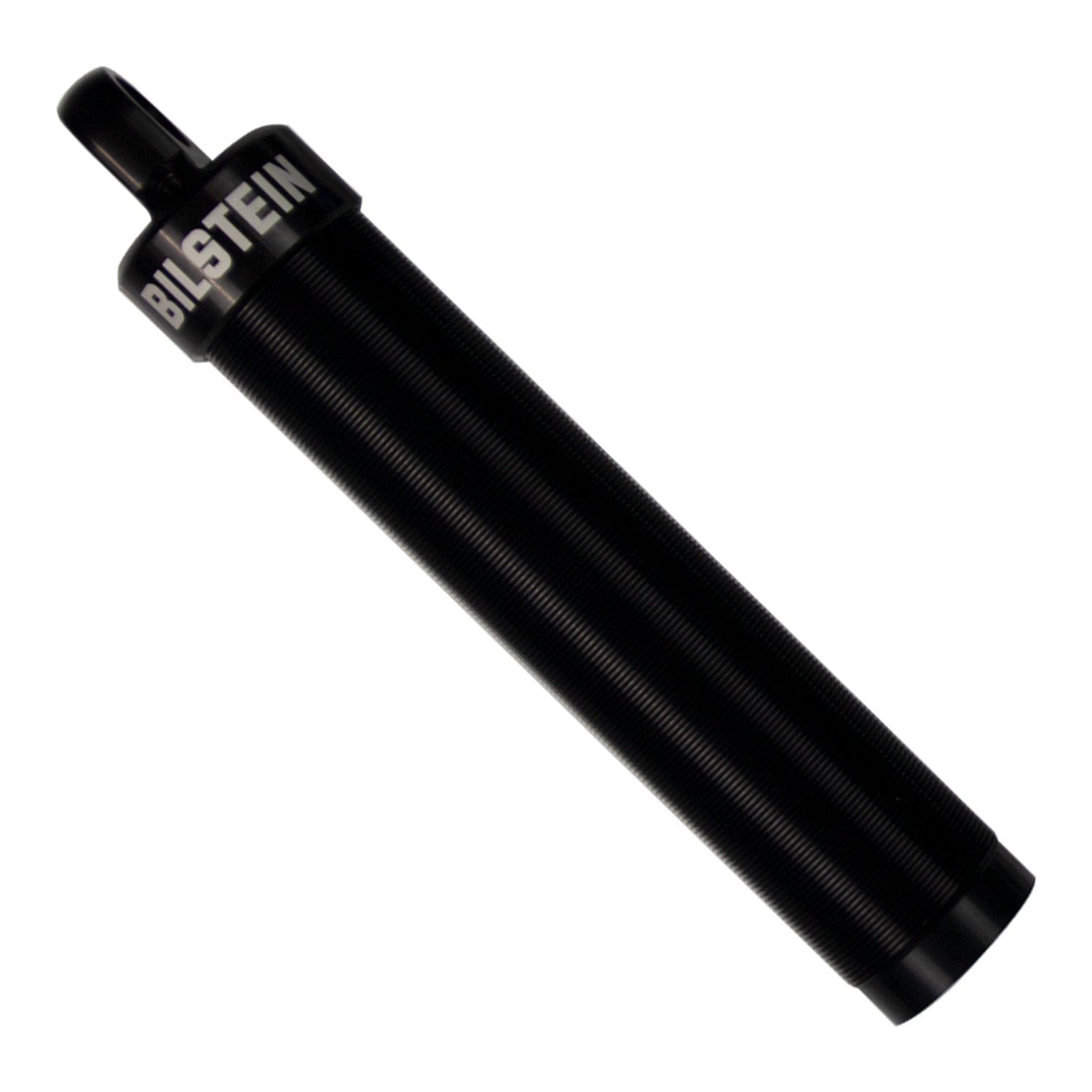

- 46mm lightweight extruded aluminum body for superior heat dissipation
- Fine thread body provides precise adjustments in coilover applications
- Single and double adjustable shaft options available
Specifications
| Part Number | 33-312293 |
| Part Name | Shock Absorber |
| UPC | 651860873756 |
| Adjustment Type | 1-Way |
| Body Design | Threaded Body Screw Top (Coilover) |
| Body Diameter (ID) | 46 mm |
| Body Material | Aluminum |
| Boot Included | No |
| Collapsed Length | 13.24 in. (336.2 mm) |
| Damping Adjustable | Yes |
| Extended Length | 19.53 in. (496.0 mm) |
| Finish | Clear Anodized |
| Internal Design | Monotube |
| Lower Mount Type | Sold Separately |
| Piston Type | Sold Separately |
| Segment | Motorsports |
| Series | AS2 Series |
| Spring Seat Included | No |
| Upper Mount Type | Sold Separately |
| Valving Identifier | Dry Kit (No Valving) |
| Quantity | Sold Individually |
