Product Details

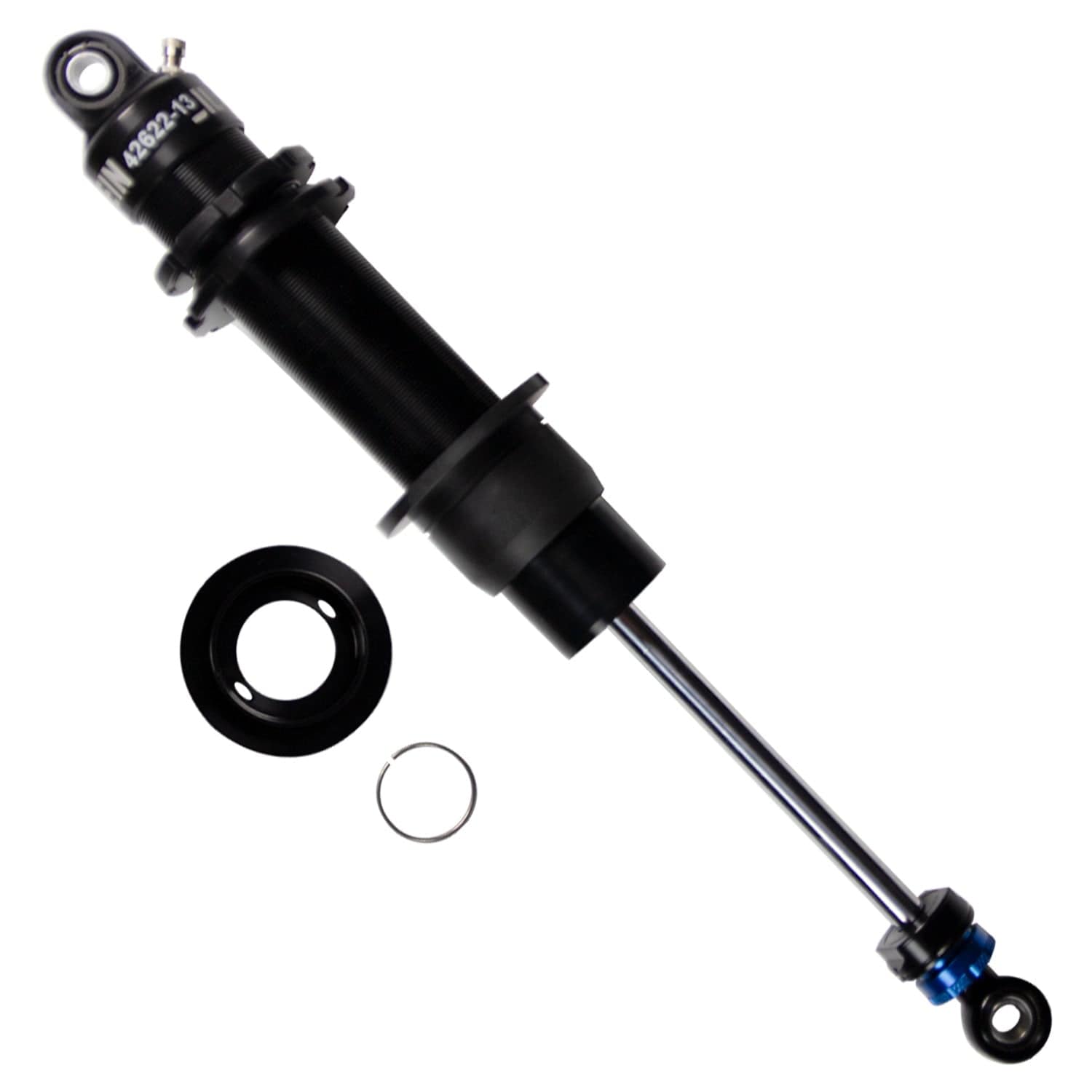

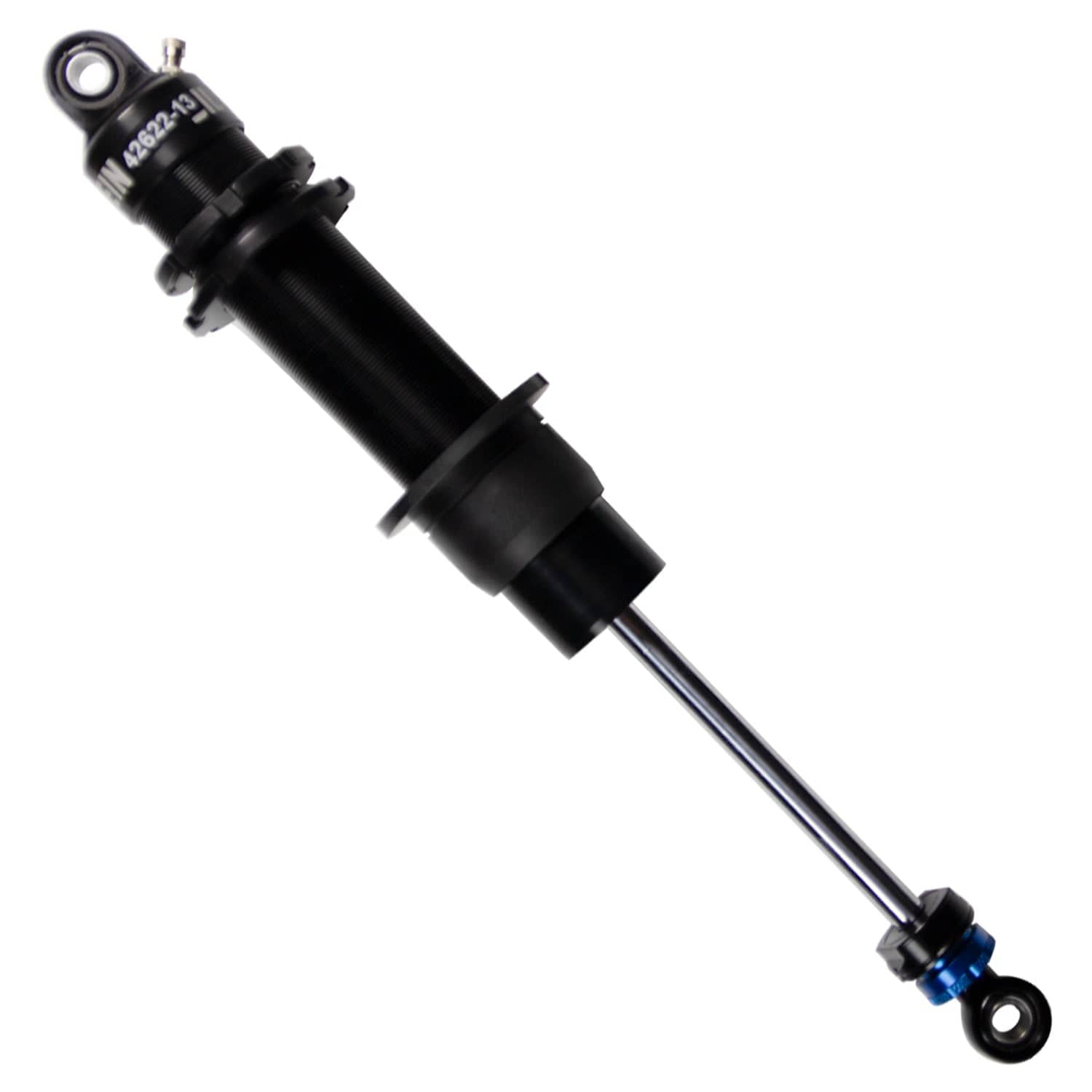

At 19.40 in. extended: The Bilstein AS2 Series shock absorber is a universal-fit part, chosen on collapsed and extended length rather than a year-make-model lookup. Fabricators, restorers, and race teams buy these to suit a custom setup.
Bilstein supplies suspension as original equipment to manufacturers worldwide and applies the same engineering here. Covered by a limited lifetime warranty.
Features
- 46mm lightweight extruded aluminum body for superior heat dissipation
- Fine thread body provides precise adjustments in coilover applications
- Single and double adjustable shaft options available
Specifications
| Part Number | 33-311647 |
| Part Name | Shock Absorber |
| UPC | 651860872698 |
| Adjustment Type | 1-Way |
| Body Design | Threaded Body Screw Top (Coilover) |
| Body Diameter (ID) | 46 mm |
| Body Material | Aluminum |
| Boot Included | No |
| Collapsed Length | 13.21 in. (336.0 mm) |
| Damping Adjustable | Yes |
| Extended Length | 19.40 in. (493.0 mm) |
| Finish | Clear Anodized |
| Internal Design | Monotube |
| Lower Mount Type | 1/2 in. Heim |
| Piston Type | Linear |
| Segment | Motorsports |
| Series | AS2 Series |

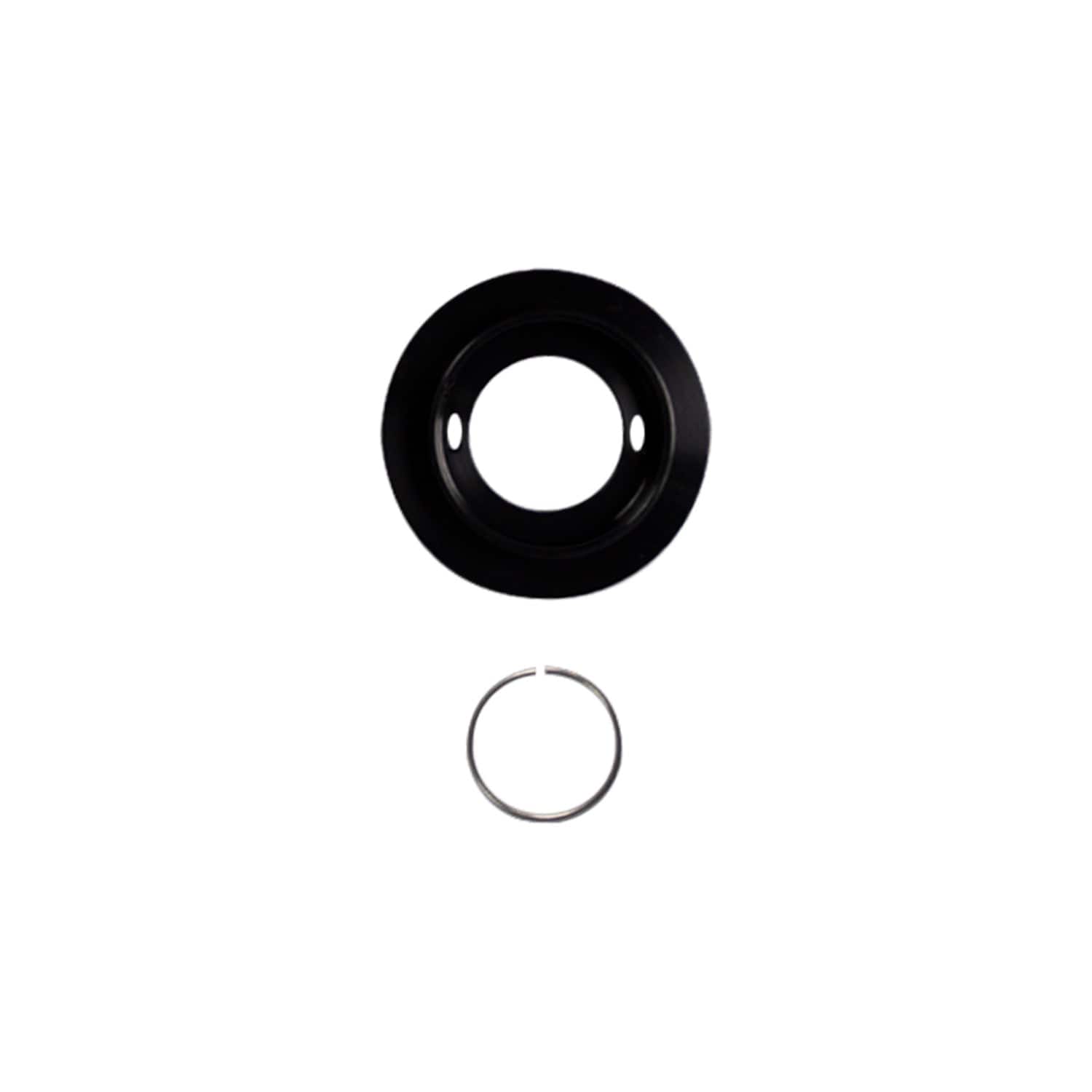

| Spring Seat Included | Yes |
| Upper Mount Type | 1/2 in. Heim |
| Valving Identifier | BIL1 5TH Coil Sgl Adjust |
| Quantity | Sold Individually |
