Product Details

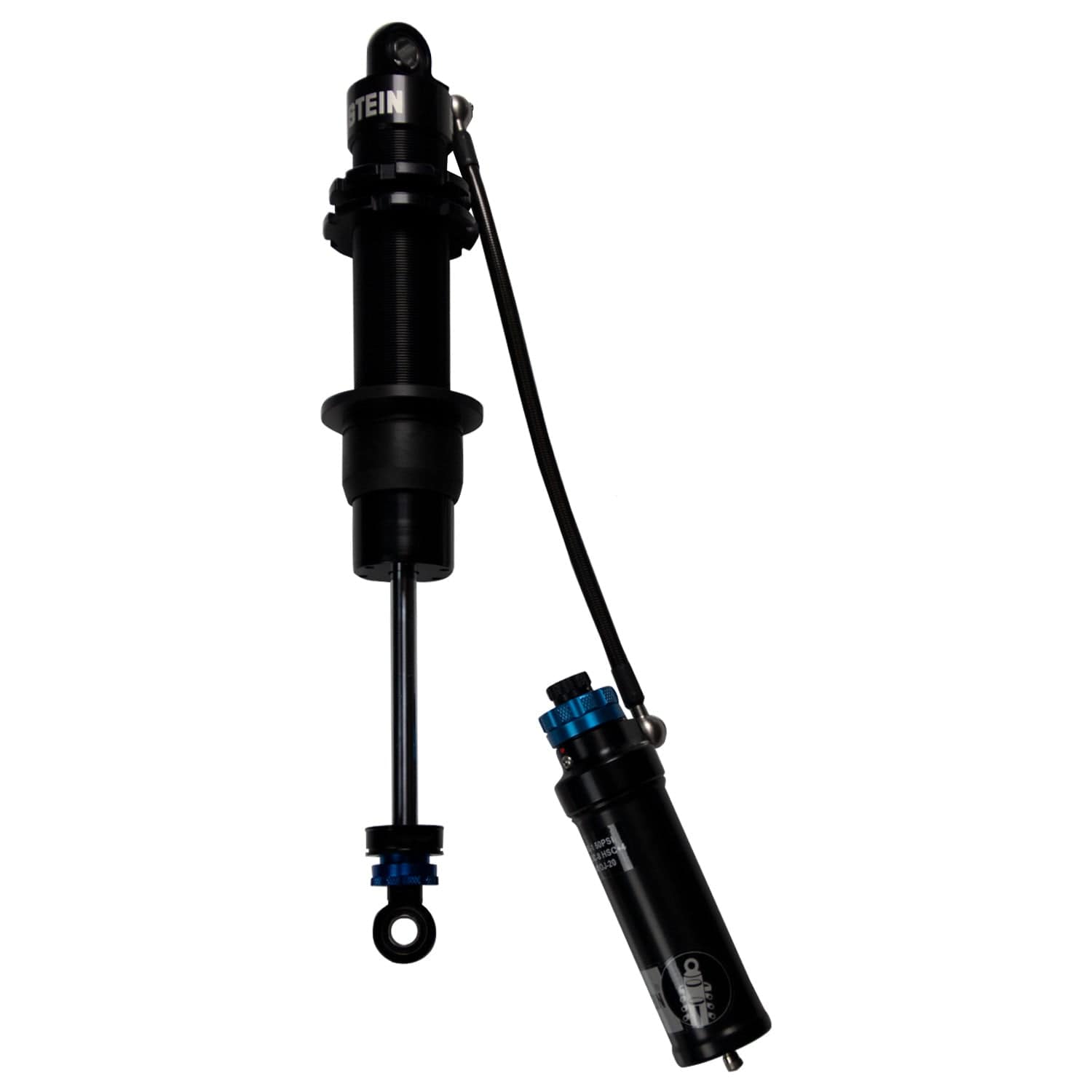

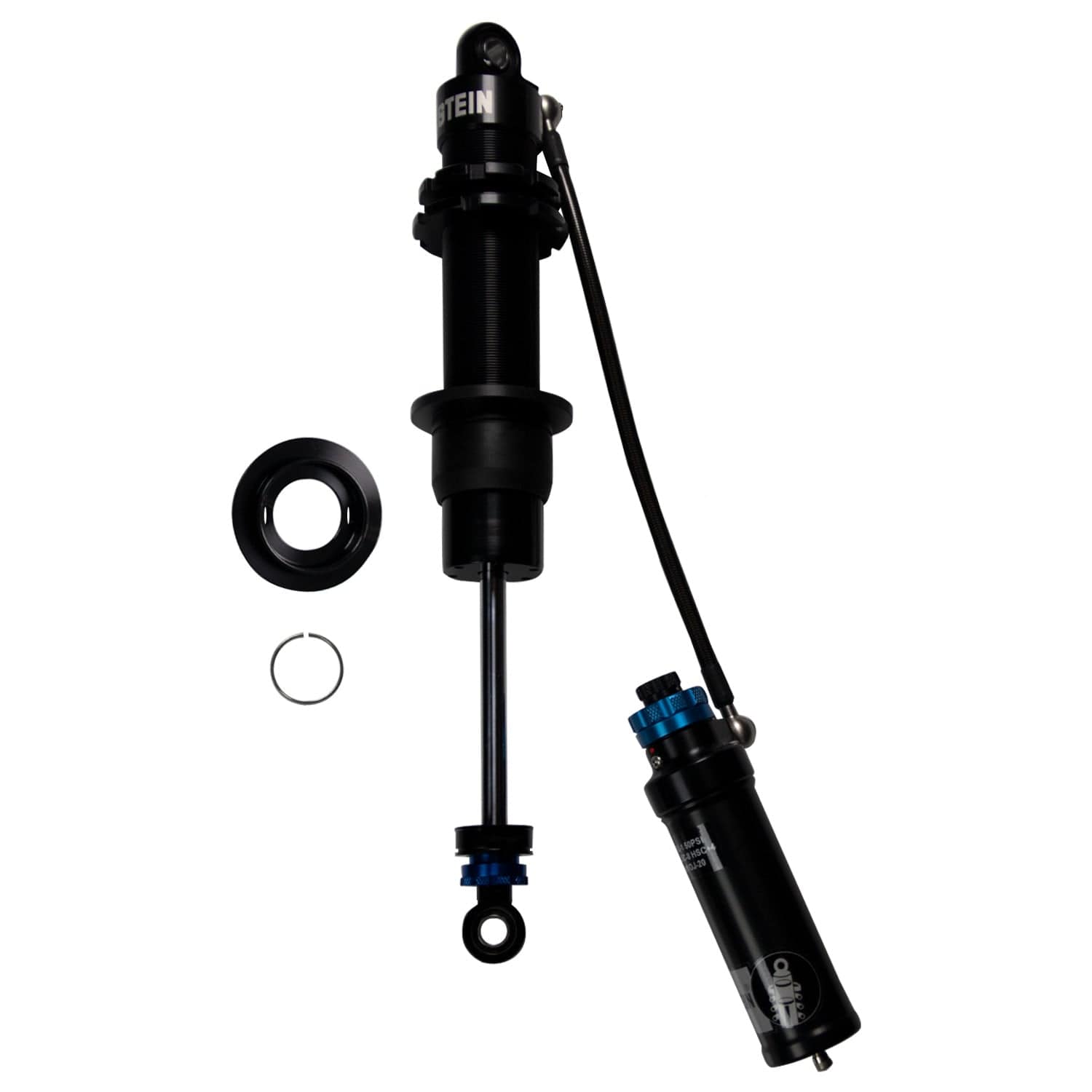

The Bilstein AS2-R Series shock absorber is sold for custom and motorsport builds, here at 14.38 in. collapsed. There is no vehicle lookup here: you select on dimension, mounting, and the damping you want.
Built in Germany to the standard that made the name, and backed by Bilstein's limited lifetime warranty. Consistency is the point: a damper that behaves the same on the tenth lap as the first.
Features
- Championship-winning tuning options
- All dampers feature 46mm aluminum monotube designs for light weight and hard anodized for durability
- Low friction rod guides for minimum rod drag
- Triple Adjustable - Rebound and High and Low Speed Compression
Specifications
| Part Number | 33-311586 |
| Part Name | Shock Absorber |
| UPC | 651860872537 |
| Adjustment Type | 1-Way |
| Body Design | Threaded Body Screw Top (Coilover) |
| Body Diameter (ID) | 46 mm |
| Body Material | Aluminum |
| Boot Included | No |
| Collapsed Length | 14.38 in. (365.0 mm) |
| Damping Adjustable | Yes |
| Extended Length | 19.52 in. (496.0 mm) |
| Finish | Clear Anodized |
| Internal Design | Monotube |
| Lower Mount Type | 1/2 in. Heim |
| Piston Type | Linear |
| Segment | Motorsports |
| Series | AS2-R Series |

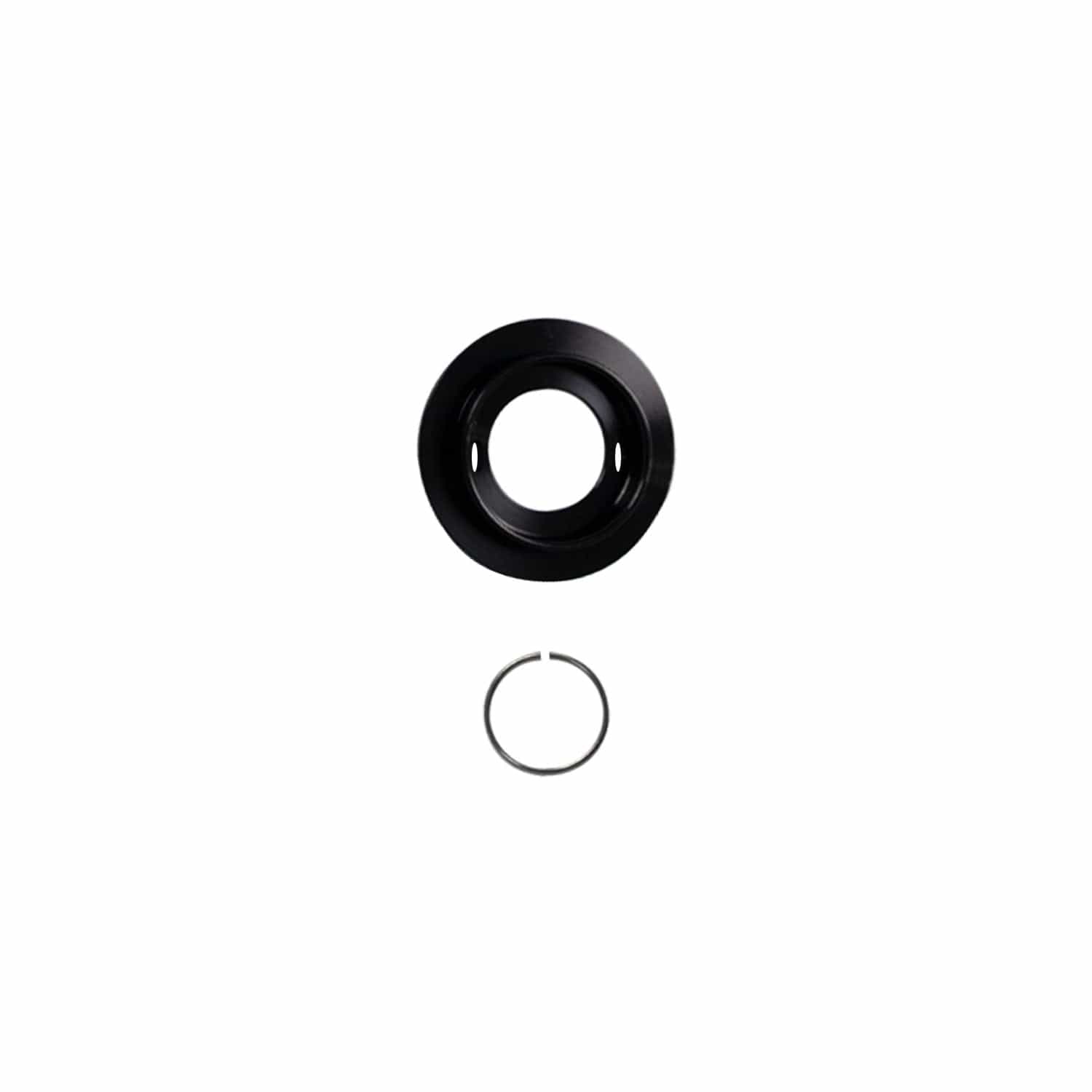

| Spring Seat Included | Yes |
| Upper Mount Type | 1/2 in. Heim |
| Quantity | Sold Individually |
