Product Details

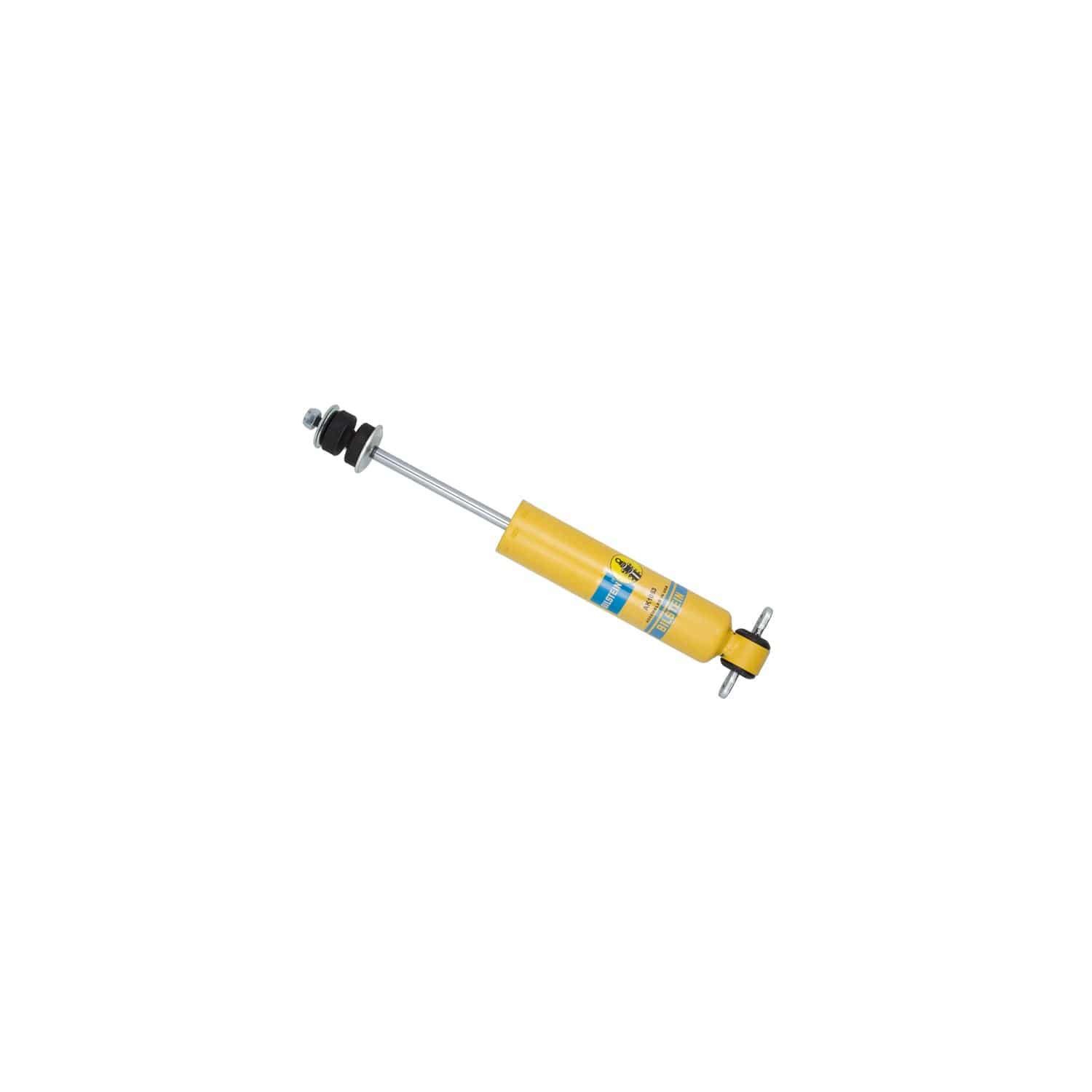

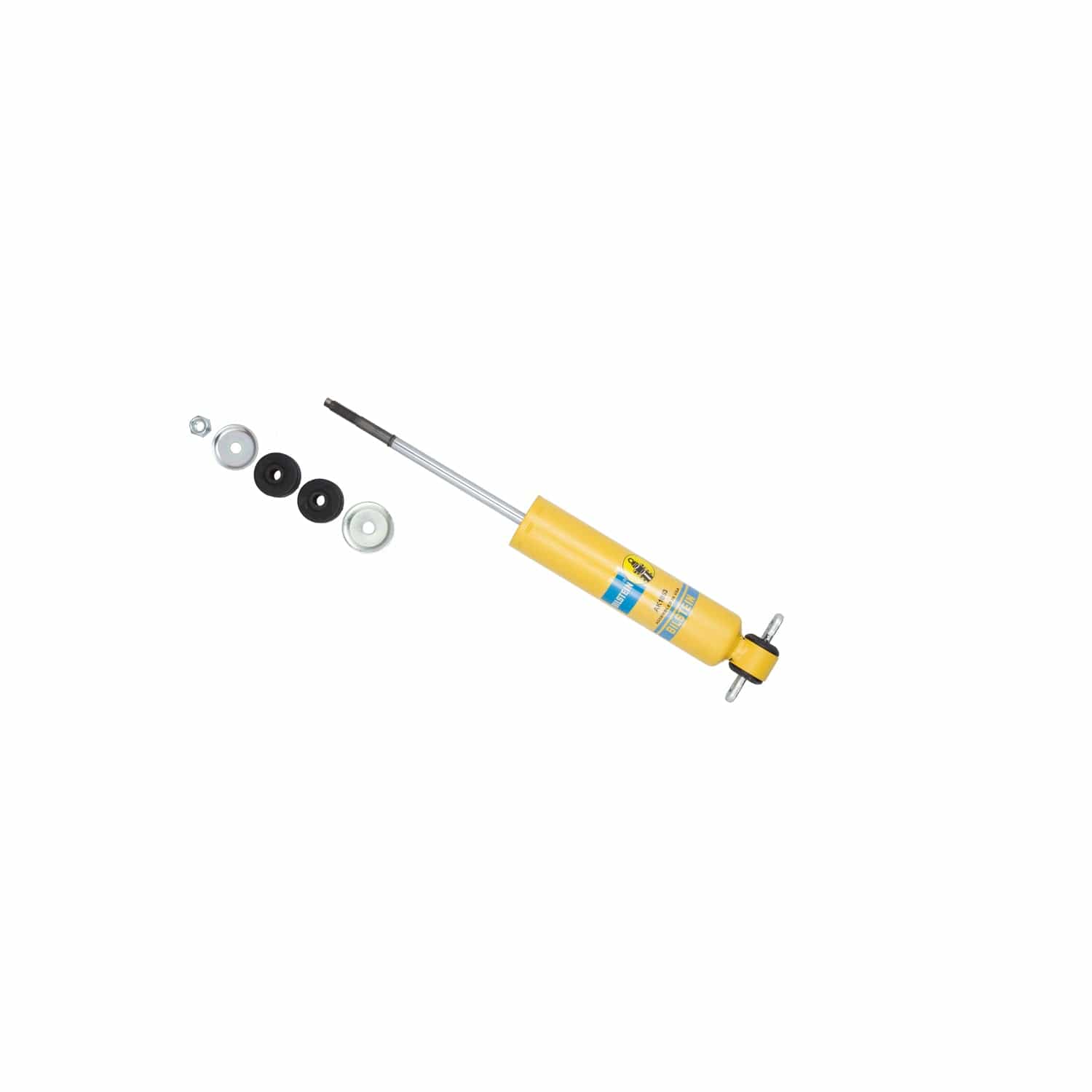

The Bilstein AK Series shock absorber is specified by dimension rather than by vehicle, here at 9.21 in. collapsed. It is the part you reach for when the build does not match a catalog application and you need a damper sized to the car you actually have.
Bilstein invented the monotube gas damper and has built suspension in Germany since 1954. The same engineering goes into a universal part as into an OE contract, and it carries a limited lifetime warranty.
Features
- Monotube design ensures consistent, fade-free performance in all conditions
- Direct fit (OE) mounting design
- Race-winning valvings for optimum weight transfer, feel, and grip in various track conditions
Specifications
| Part Number | AK1053 |
| Part Name | Shock Absorber |
| UPC | 790832510531 |
| Body Design | Stock Mount Smooth Body |
| Body Diameter (ID) | 46 mm |
| Body Material | Steel |
| Boot Included | No |
| Collapsed Length | 9.21 in. (234.0 mm) |
| Compression @ 0.26m/s | 730 |
| Damping Adjustable | No |
| Extended Length | 14.11 in. (358.5 mm) |
| Finish | Yellow Paint |
| Internal Design | Monotube |
| Lower Mount Type | Bar Pin |
| Piston Type | Linear |
| Rebound @ 0.26m/s | 2515 |
| Segment | Motorsports |
| Series | AK Series |
| Spring Seat Included | No |
| Upper Mount Type | Stem |
| Valving Identifier | 565/164 |
| Quantity | Sold Individually |
