Product Details

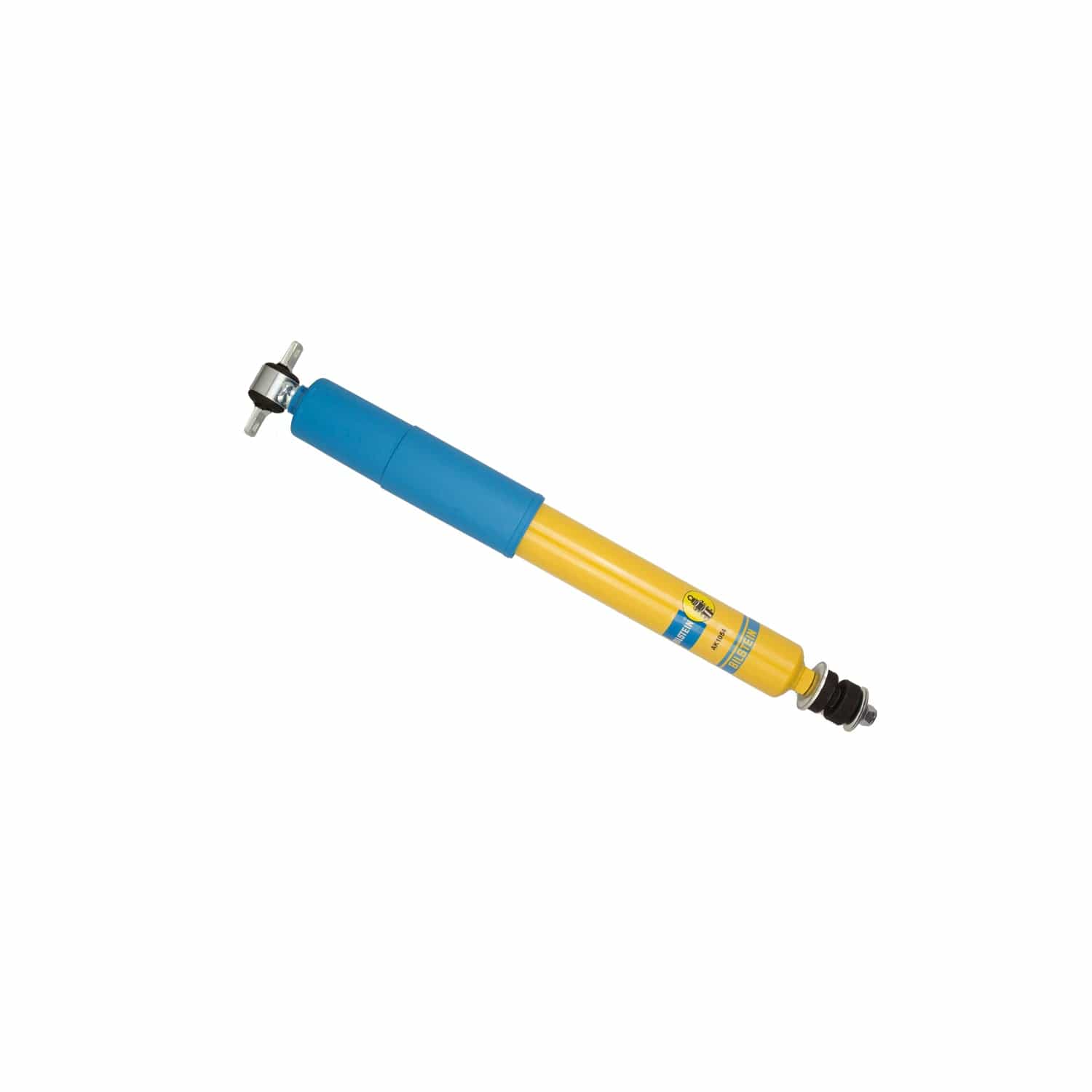

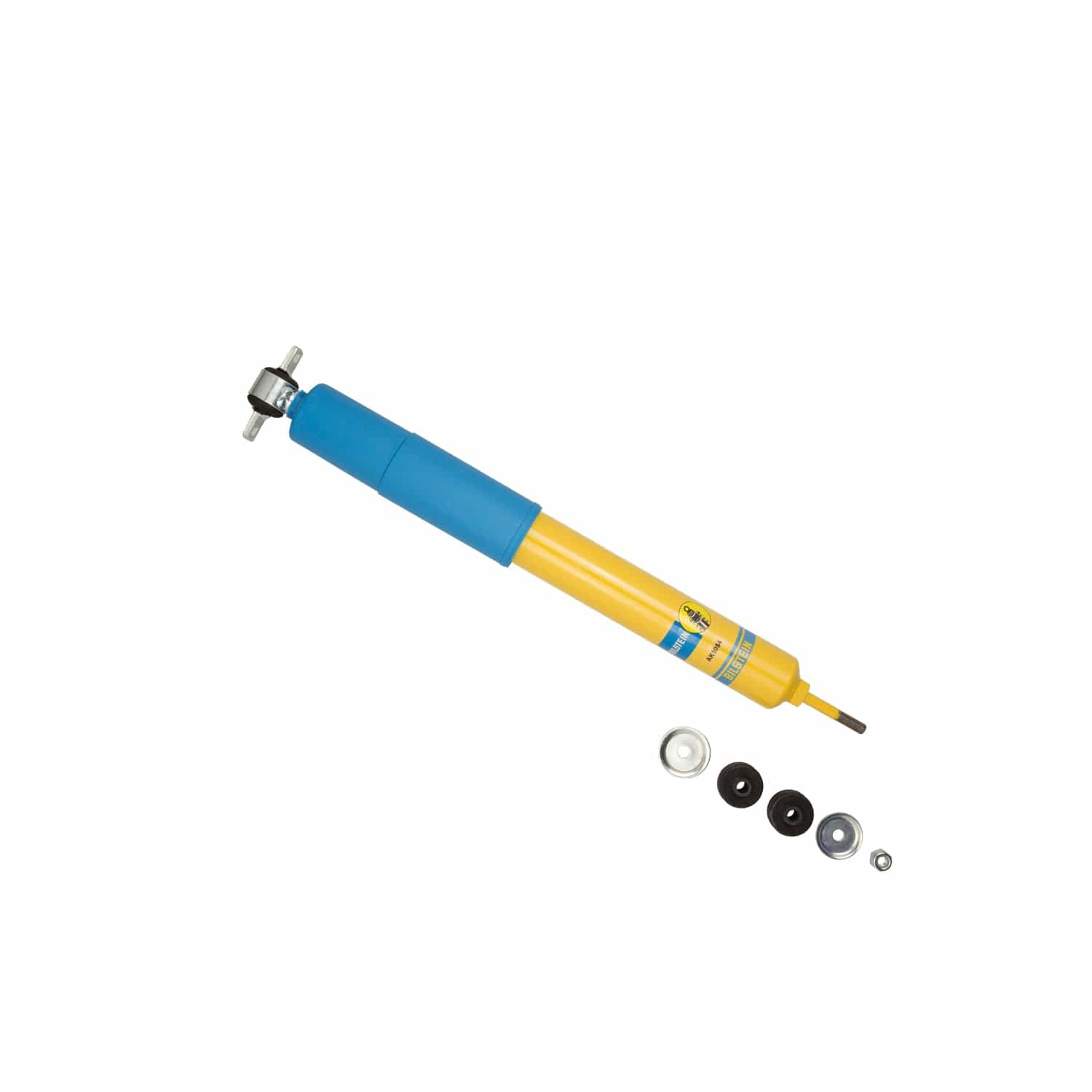

Bilstein AK Series Shock Absorbers are designed for motorsports applications that require the use of the OE mounting components. Each Shock Absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series Shock Absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.
Standard Features
- Monotube design ensures consistent, fade-free performance in all conditions
- Direct fit (OE) mounting design
- Race-winning valvings for optimum weight transfer, feel, and grip in various track conditions
Specifications
| Part Number | AK1054 |
| Part Name | Shock Absorber |
| UPC | 790832510548 |
| Body Design | Stock Mount Smooth Body |
| Body Diameter (ID) | 46 mm |
| Body Material | Steel |
| Boot Included | Blue Straight |
| Collapsed Length | 12.92 in. |
| Collapsed Length | 328.1 mm |
| Compression @ 0.52m/s | 500 |
| Damping Adjustable | No |
| Extended Length | 20.47 in. |
| Extended Length | 520.0 mm |
| Finish | Yellow Paint |
| Internal Design | Monotube |
| Lower Mount Type | Stem |
| Piston Type | Linear |
| Rebound @ 0.52m/s | 1365 |
| Segment | Motorsports |
| Series | AK Series |
| Spring Seat Included | No |
| Upper Mount Type | Bar Pin |
| Valving Identifier | 165/67 |
| Quantity | Sold Individually |
