Product Details

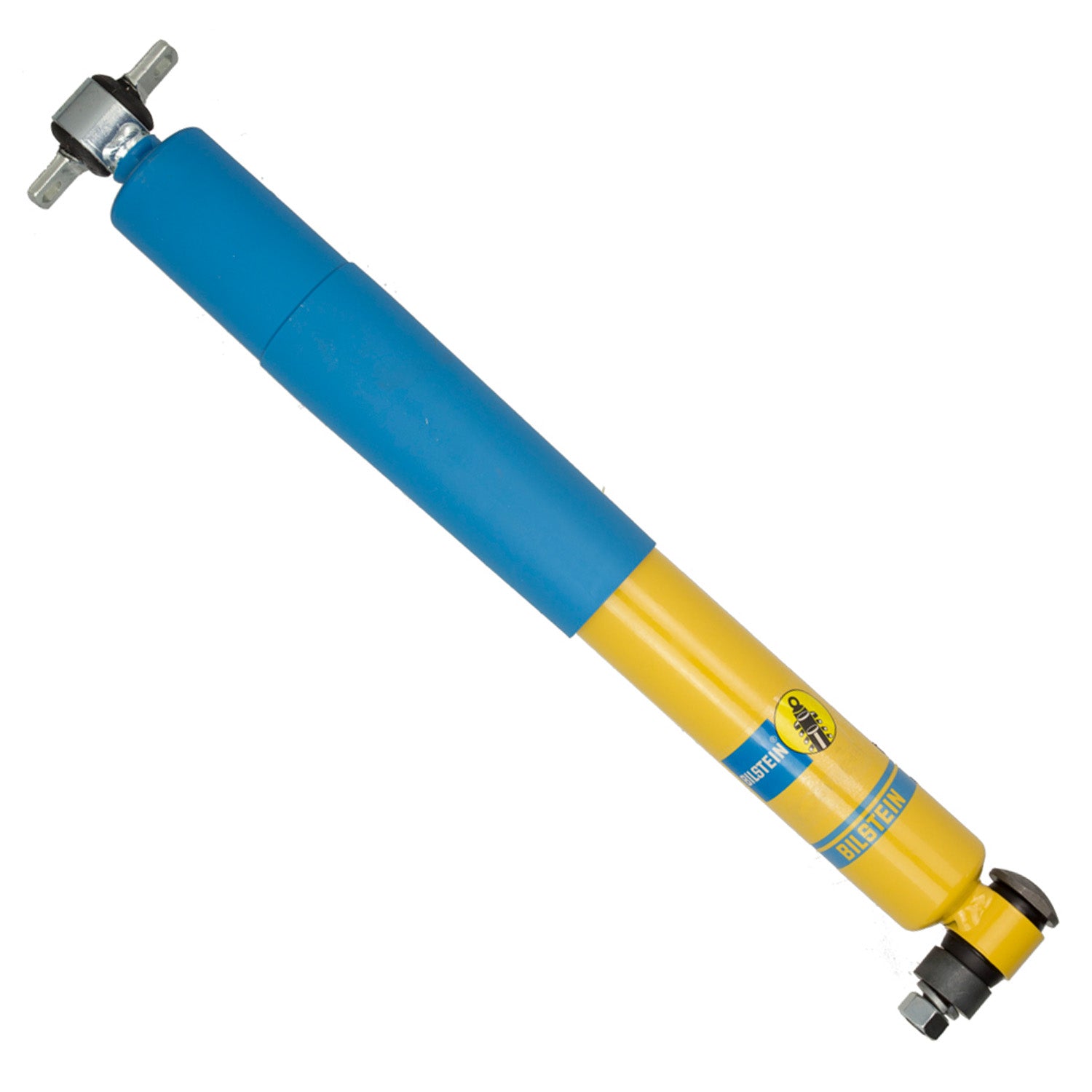

The Bilstein AK Series shock absorber is a universal-fit part, chosen on collapsed and extended length rather than a year-make-model lookup. Fabricators, restorers, and race teams buy these to suit a custom setup.
Bilstein invented the monotube gas damper and has built suspension in Germany since 1954. The same engineering goes into a universal part as into an OE contract, and it carries a limited lifetime warranty.
Features
- Monotube design ensures consistent, fade-free performance in all conditions
- Direct fit (OE) mounting design
- Race-winning valvings for optimum weight transfer, feel, and grip in various track conditions
Specifications
| Part Number | 24-313636 |
| Part Name | Shock Absorber |
| UPC | 651860862736 |
| Body Design | Stock Mount Smooth Body |
| Body Diameter (ID) | 46 mm |
| Body Material | Steel |
| Boot Included | Blue Straight |
| Collapsed Length | 13.11 in. (333.0 mm) |
| Compression @ 0.52m/s | 835 |
| Damping Adjustable | No |
| Extended Length | 20.28 in. (515.0 mm) |
| Finish | Yellow Paint |
| Internal Design | Monotube |
| Lower Mount Type | Cantilever |
| Piston Type | Digressive |
| Rebound @ 0.52m/s | 1185 |
| Segment | Motorsports |
| Series | AK Series |
| Spring Seat Included | No |
| Upper Mount Type | Bar Pin |
| Quantity | Sold Individually |
