Product Details

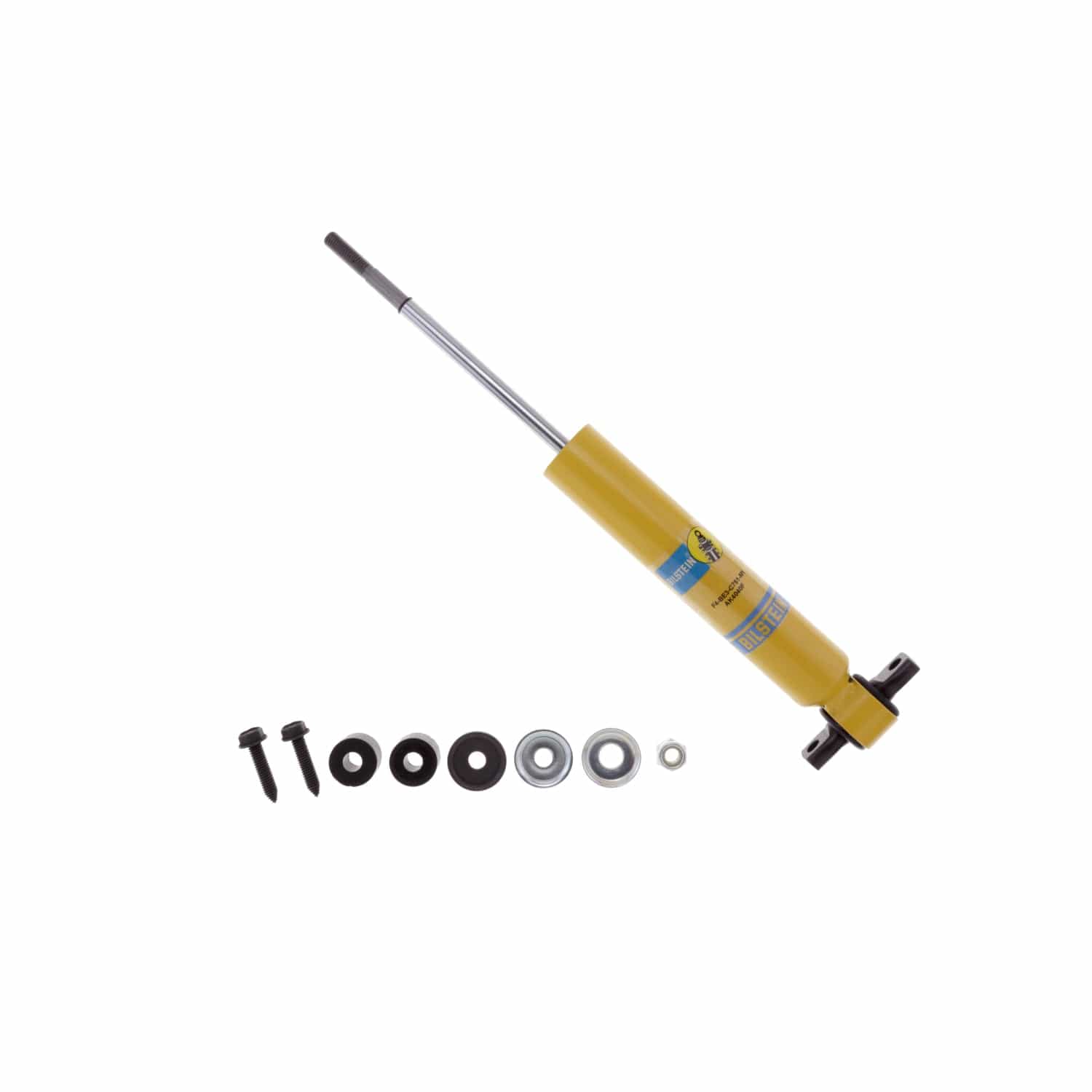

The Bilstein AK Series shock absorber is sold for custom and motorsport builds. There is no vehicle lookup here: you select on dimension, mounting, and the damping you want.
Bilstein invented the monotube gas damper and has built suspension in Germany since 1954. The same engineering goes into a universal part as into an OE contract, and it carries a limited lifetime warranty.
Features
- Monotube design ensures consistent, fade-free performance in all conditions
- Direct fit (OE) mounting design
- Race-winning valvings for optimum weight transfer, feel, and grip in various track conditions
Specifications
| Part Number | F4-BE3-C751-M2 |
| Part Name | Shock Absorber |
| UPC | 651860751849 |
| Body Design | Stock Mount Smooth Body |
| Body Diameter (ID) | 36 mm |
| Body Material | Steel |
| Boot Included | No |
| Collapsed Length | 8.73 in. (221.8 mm) |
| Compression @ 0.26m/s | 685 |
| Damping Adjustable | No |
| Extended Length | 13.46 in. (342.0 mm) |
| Finish | Yellow Paint |
| Internal Design | Monotube |
| Lower Mount Type | Bar Pin |
| Piston Type | Digressive |
| Rebound @ 0.26m/s | 880 |
| Segment | Motorsports |
| Series | AK Series |
| Spring Seat Included | No |
| Upper Mount Type | Stem |
| Valving Identifier | 197/154 |
| Quantity | Sold Individually |
