Product Details

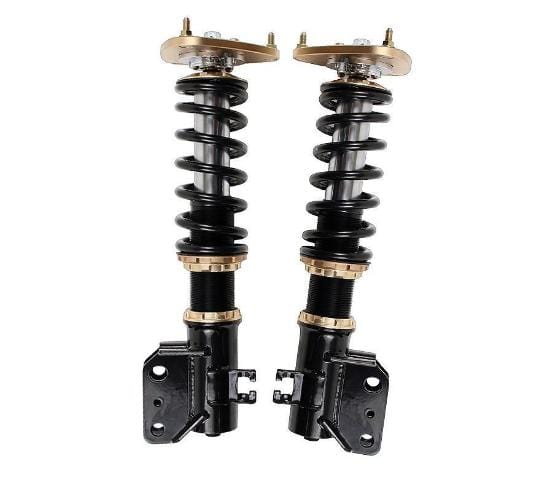

BC Racing RM Series Coilovers for the 2006-2012 Mitsubishi Eclipse (DK2A/DK4A) are purpose-built for McPherson-strut cars that see serious track time, with an inverted mono-tube damper engineered to outlast a hard season of lateral loads. Every kit is extensively tested on the Eclipse chassis and refined until it balances ride quality with performance — the reason Eclipse coilovers from BC Racing are the best-selling adjustable kits in their segment worldwide.

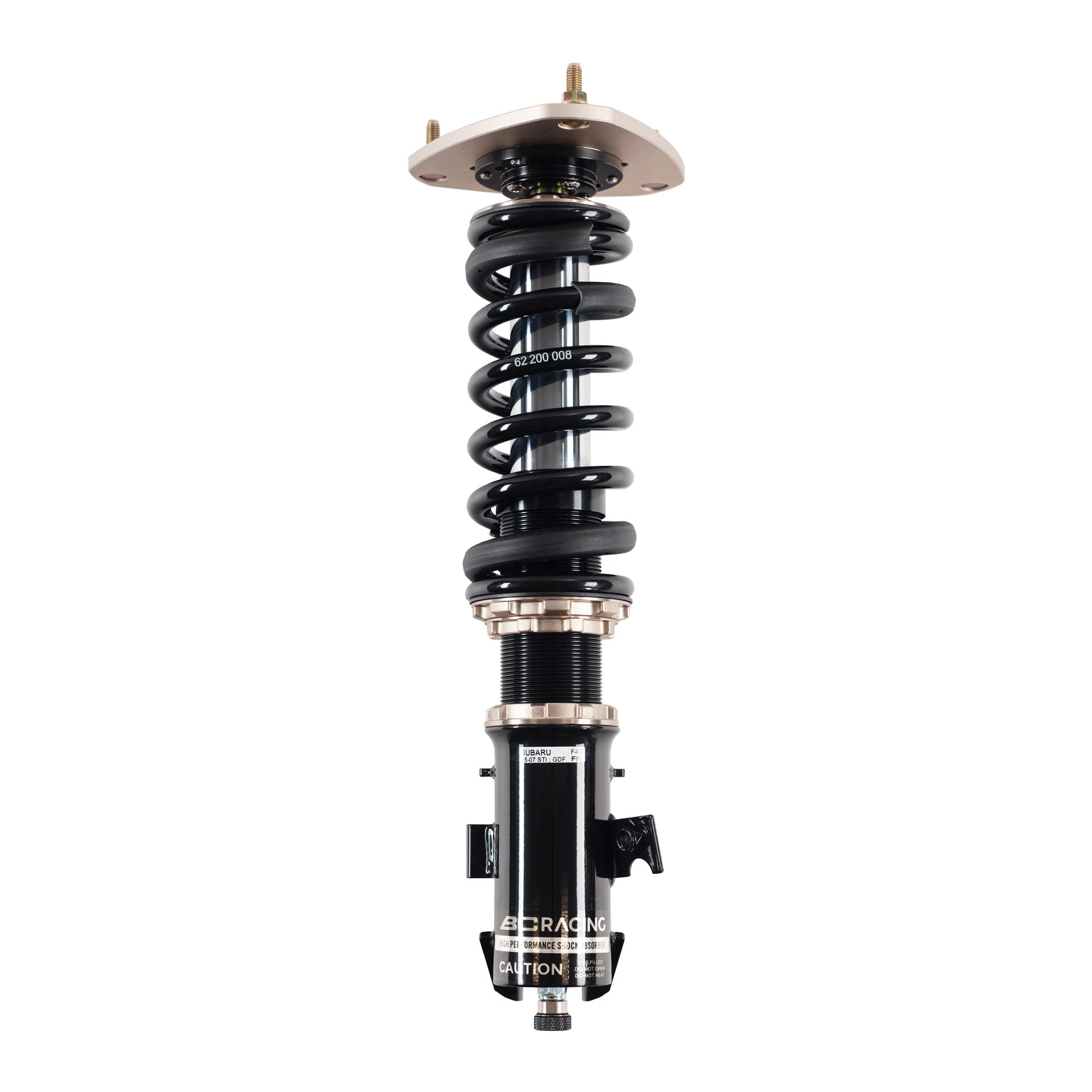

The RM Series inverts the mono-tube damper on strut-equipped chassis, putting the heavy internals where the lateral loads are worst. A wider piston shaft than conventional uprights means more consistent damping on long sessions and more fatigue life before rebuild. The off-the-shelf setup from BC Racing is deliberately balanced — spring rates and valving chosen so the kit feels comfortable day-to-day without giving up performance when you push it. Drivers who want a different recipe can spec Swift Springs, custom spring rates, or fully custom valving at checkout; BC will tune the dampers to match, which is a depth of customization most brands only offer on their top-tier kits.
BC Racing's reputation in the aftermarket suspension world is built on four things: competitive pricing that beats the rest of the fully-adjustable market, customization depth that rivals the top-tier race brands, long-term reliability earned over 20 years of production, and a rebuildable design that keeps the same set of dampers serving you through multiple builds. These Eclipse coilovers arrive tuned for the Eclipse chassis and ready to bolt in — no break-in period, no guessing at setup. Every kit ships with a 2-year manufacturer warranty, lifetime access to BC service parts (pistons, seals, shafts — no unit replacement required when it's time for a rebuild), and in-house tech support from both BC Racing and the Springrates team.
Features
- 30-level simultaneous compression/rebound damping adjuster
- Inverted mono-tube damper (front) with oversized 46 mm piston shaft
- Handles higher lateral loads on McPherson-strut applications
- Ride height adjustable independent of spring preload
- Upper mount hardware varies by chassis — camber plates, pillowball, or reused OEM mounts. See the Specifications table for what's included on your kit.
- Swift Spring and custom spring rate upgrades available at checkout
- Custom damper valving paired with custom spring rates on request
- Fully rebuildable — replacement parts available from BC for the life of the shock
- 2-year manufacturer warranty against defects
Specifications
| Part Number | B-15-RM |
| Part Name | RM Series Coilovers |
| Vehicle | 2006-2012 Mitsubishi Eclipse |
| Drivetrain | FWD |
| Chassis Code | DK2A/DK4A |
| Damping Adjustment | 1-Way (30 levels) |
| Ride-Height Adjustable | Yes |
| Spring Rate - Front | 10 kg/mm |
| Spring Rate - Rear | 6 kg/mm |
| Spring Size - Front | 62-180-10K |
| Spring Size - Rear | 62-200-6K |
| Swift Springs - Front | 62-178-X |
| Swift Springs - Rear | 62-203-X |
| Camber Plates - Front | Included |
| Camber Plates - Rear | Not Applicable |
| Suspension Design - Front | True Coilover |
| Suspension Design - Rear | True Coilover |
Vehicle Fitment
- 2006 Mitsubishi Eclipse FWD (DK2A/DK4A)
- 2007 Mitsubishi Eclipse FWD (DK2A/DK4A)
- 2008 Mitsubishi Eclipse FWD (DK2A/DK4A)
- 2009 Mitsubishi Eclipse FWD (DK2A/DK4A)
- 2010 Mitsubishi Eclipse FWD (DK2A/DK4A)
- 2011 Mitsubishi Eclipse FWD (DK2A/DK4A)
- 2012 Mitsubishi Eclipse FWD (DK2A/DK4A)
