Product Details

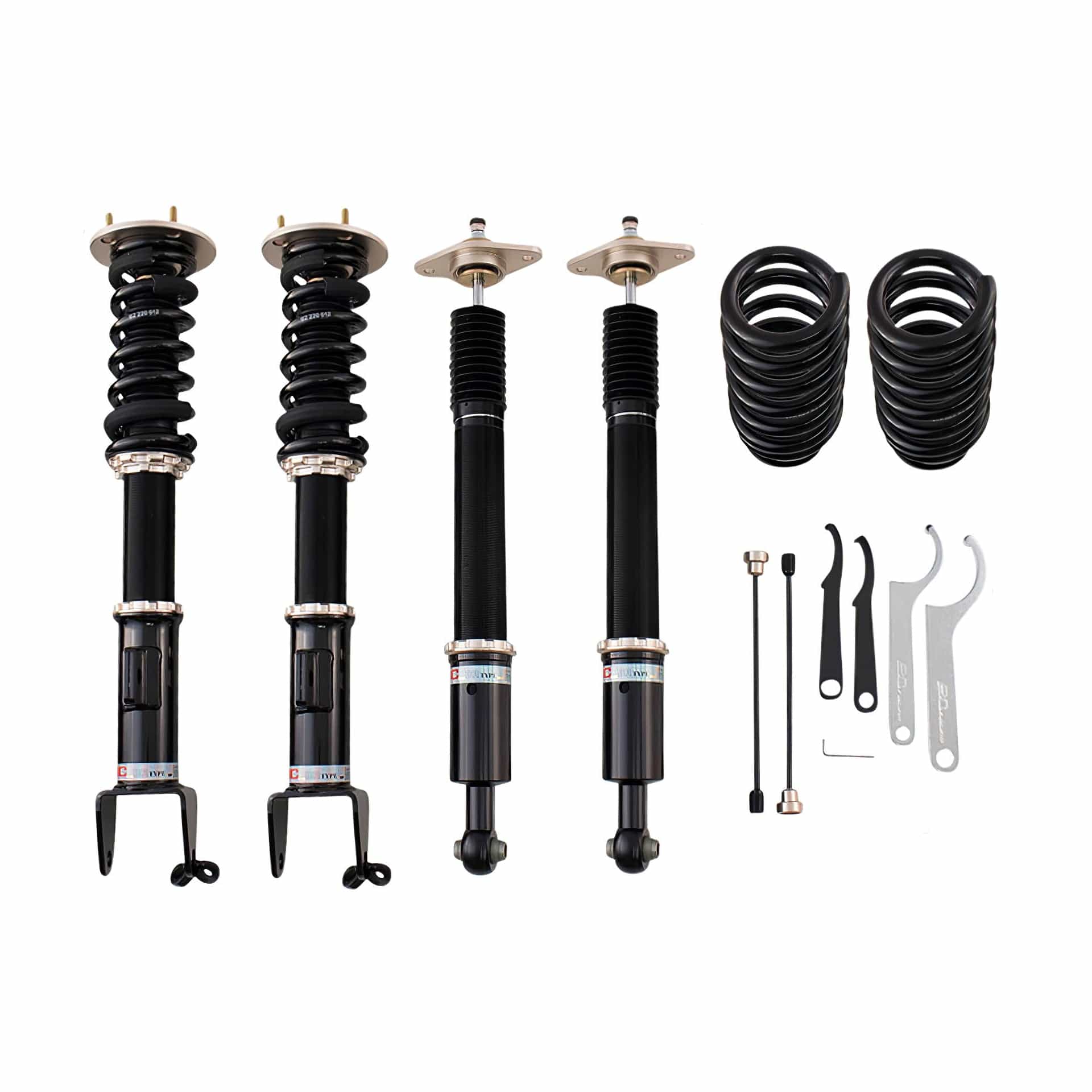

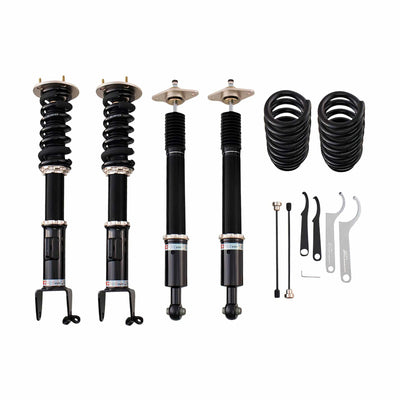

BC Racing ER Series Coilovers for the 2011-2023 Dodge Challenger (LC) put race-grade adjustability in reach of the serious track-day driver, with independent compression and rebound tuning at every corner. Every kit is extensively tested on the LC chassis and refined until it balances ride quality with performance, the reason Challenger coilovers from BC Racing are the best-selling adjustable kits in their segment worldwide.
ER Series kits run a linear twin-piston design in a mono-tube body, with compression and rebound on separate external adjusters. That lets you fine-tune chassis balance corner by corner, stiffer front for turn-in, softer rear for exit grip, whatever the session calls for. BC Racing takes pride in choosing spring rates and damper valving that balance comfort and performance, you never end up with the oversprung, harsh-riding kit some brands ship as their only option. Drivers who want to deviate from the factory setup can order Swift Springs, custom spring rates, and custom valving at checkout; BC will re-valve the dampers to match whatever you specify, a level of customization most brands reserve for their top-tier race kits.
BC Racing's reputation in the aftermarket suspension world is built on four things: competitive pricing that beats the rest of the fully-adjustable market, customization depth that rivals the top-tier race brands, long-term reliability earned over 20 years of production, and a rebuildable design that keeps the same set of dampers serving you through multiple builds. These Challenger coilovers arrive tuned for the LC chassis and ready to bolt in, no break-in period, no guessing at setup. Every kit ships with a 2-year manufacturer warranty, lifetime access to BC service parts (pistons, seals, shafts, no unit replacement required when it's time for a rebuild), and in-house tech support from both BC Racing and the Springrates team.
Features
- 30-level rebound adjustment (top of damper)
- 30-level compression adjustment (external reservoir)
- Mono-tube damper with linear twin-piston design
- Ride height adjustable independent of spring preload
- Upper mount hardware varies by chassis, camber plates, pillowball, or reused OEM mounts. See the Specifications table for what's included on your kit.
- Swift Spring and custom spring rate upgrades available at checkout
- Custom damper valving paired with custom spring rates on request
- Fully rebuildable, replacement parts available from BC for the life of the shock
- 2-year manufacturer warranty against defects
Specifications
| Part Number | Z-05-ER |
| Part Name | ER Series Coilovers |
| Vehicle | 2011-2023 Dodge Challenger |
| Drivetrain | RWD |
| Chassis Code | LC |
| Damping Adjustment | 2-Way (30 levels rebound/30 levels compression) |
| Ride-Height Adjustable | Yes |
| Spring Rate - Front | 10 kg/mm |
| Spring Rate - Rear | 14 kg/mm |
| Spring Size - Front | 62-220-10K |
| Spring Size - Rear | 80-72-240-14K-V |
| Swift Springs - Front | 62-228-X |
| Camber Plates - Front | Not Applicable |
| Camber Plates - Rear | Not Applicable |
| Suspension Design - Front | True Coilover |
| Suspension Design - Rear | Divorced |
| Notes |
|
Vehicle Fitment
- 2011 Dodge Challenger RWD (LC)
- 2012 Dodge Challenger RWD (LC)
- 2013 Dodge Challenger RWD (LC)
- 2014 Dodge Challenger RWD (LC)
- 2015 Dodge Challenger RWD (LC)
- 2016 Dodge Challenger RWD (LC)
- 2017 Dodge Challenger RWD (LC)
- 2018 Dodge Challenger RWD (LC)
- 2019 Dodge Challenger RWD (LC)
- 2020 Dodge Challenger RWD (LC)
- 2021 Dodge Challenger RWD (LC)
- 2022 Dodge Challenger RWD (LC)
- 2023 Dodge Challenger RWD (LC)
