Product Details

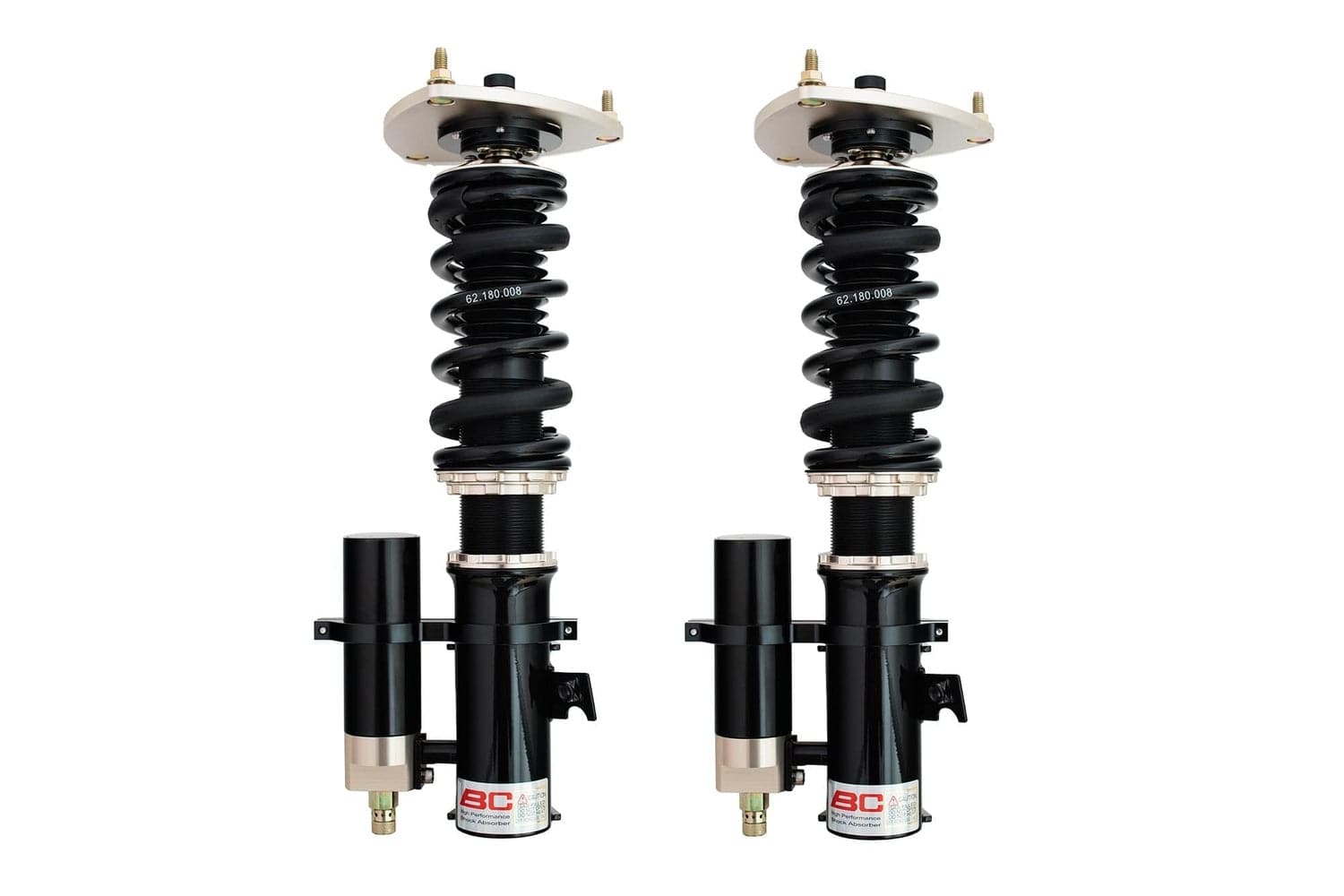

BC Racing ER Series Coilovers for the 2000-2005 Toyota MR2 Spyder (ZZW30) put race-grade adjustability in reach of the serious track-day driver, with independent compression and rebound tuning at every corner. Every kit is extensively tested on the ZZW30 chassis and refined until it balances ride quality with performance — the reason MR2 Spyder coilovers from BC Racing are the best-selling adjustable kits in their segment worldwide.
ER Series kits run a linear twin-piston design in a mono-tube body, with compression and rebound on separate external adjusters. That lets you fine-tune chassis balance corner by corner — stiffer front for turn-in, softer rear for exit grip, whatever the session calls for. The off-the-shelf setup from BC Racing is deliberately balanced — spring rates and valving chosen so the kit feels comfortable day-to-day without giving up performance when you push it. Drivers who want a different recipe can spec Swift Springs, custom spring rates, or fully custom valving at checkout; BC will tune the dampers to match, which is a depth of customization most brands only offer on their top-tier kits.
BC Racing's reputation in the aftermarket suspension world is built on four things: competitive pricing that beats the rest of the fully-adjustable market, customization depth that rivals the top-tier race brands, long-term reliability earned over 20 years of production, and a rebuildable design that keeps the same set of dampers serving you through multiple builds. These MR2 Spyder coilovers arrive tuned for the ZZW30 chassis and ready to bolt in — no break-in period, no guessing at setup. Every kit ships with a 2-year manufacturer warranty, lifetime access to BC service parts (pistons, seals, shafts — no unit replacement required when it's time for a rebuild), and in-house tech support from both BC Racing and the Springrates team.
Features
- 30-level rebound adjustment (top of damper)
- 30-level compression adjustment (external reservoir)
- Mono-tube damper with linear twin-piston design
- Ride height adjustable independent of spring preload
- Upper mount hardware varies by chassis — camber plates, pillowball, or reused OEM mounts. See the Specifications table for what's included on your kit.
- Swift Spring and custom spring rate upgrades available at checkout
- Custom damper valving paired with custom spring rates on request
- Fully rebuildable — replacement parts available from BC for the life of the shock
- 2-year manufacturer warranty against defects
Specifications
| Part Number | C-18-ER |
| Part Name | ER Series Coilovers |
| Vehicle | 2000-2005 Toyota MR2 Spyder |
| Drivetrain | RWD |
| Chassis Code | ZZW30 |
| Damping Adjustment | 2-Way (30 levels rebound/30 levels compression) |
| Ride-Height Adjustable | Yes |
| Spring Rate - Front | 4 kg/mm |
| Spring Rate - Rear | 5.5 kg/mm |
| Spring Size - Front | 62-180-4K |
| Spring Size - Rear | 62-180-5.5K |
| Swift Springs - Front | 62-178-X |
| Swift Springs - Rear | 62-178-X |
| Camber Plates - Front | Included |
| Camber Plates - Rear | Not Applicable |
| Suspension Design - Front | True Coilover |
| Suspension Design - Rear | True Coilover |
| Notes | The ER Series is not available in Extreme-Low configuration. |
Vehicle Fitment
- 2000 Toyota MR2 Spyder RWD (ZZW30)
- 2001 Toyota MR2 Spyder RWD (ZZW30)
- 2002 Toyota MR2 Spyder RWD (ZZW30)
- 2003 Toyota MR2 Spyder RWD (ZZW30)
- 2004 Toyota MR2 Spyder RWD (ZZW30)
- 2005 Toyota MR2 Spyder RWD (ZZW30)
