Product Details

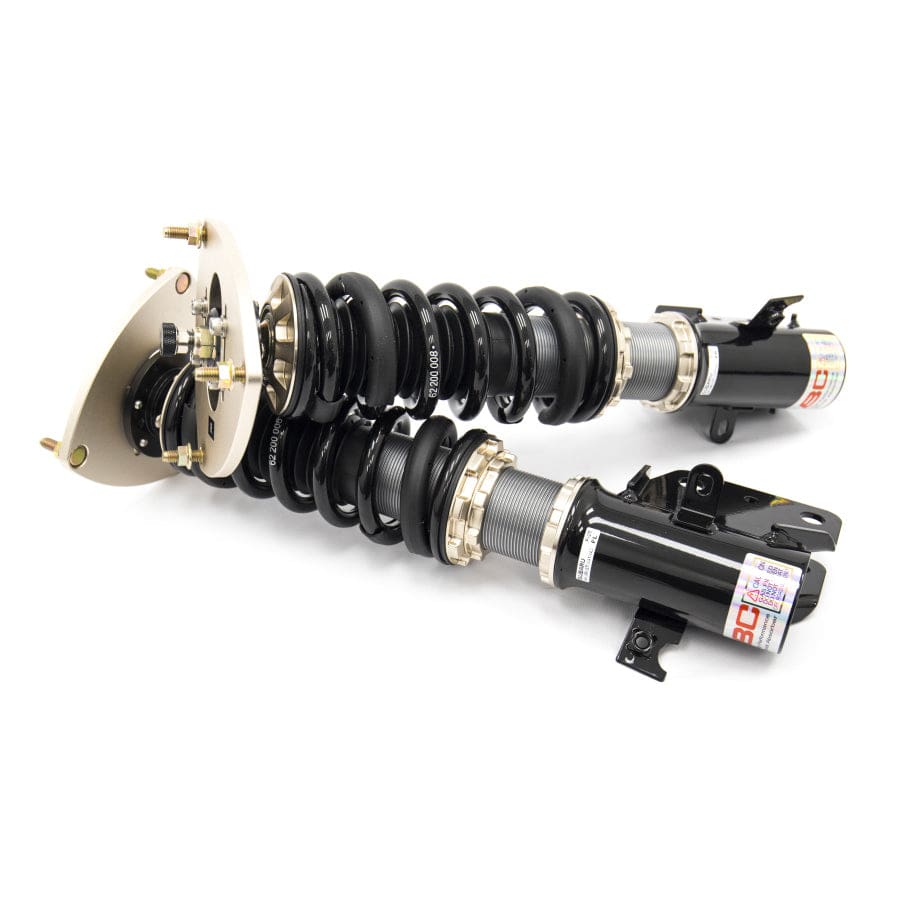

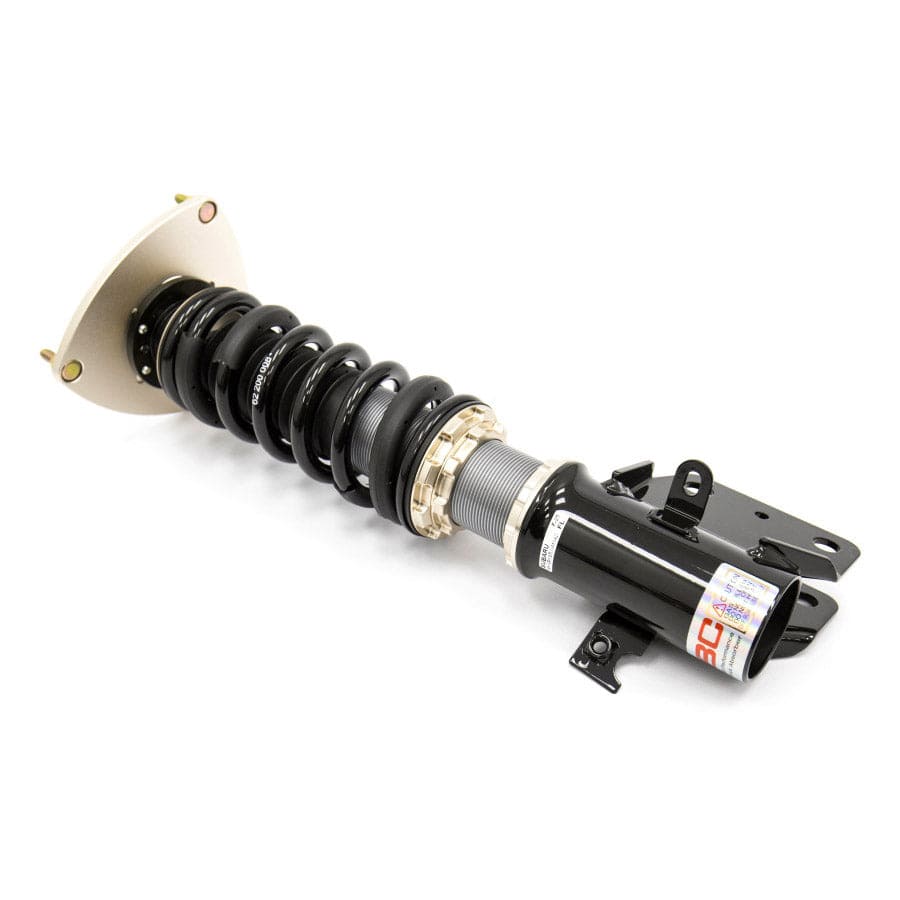

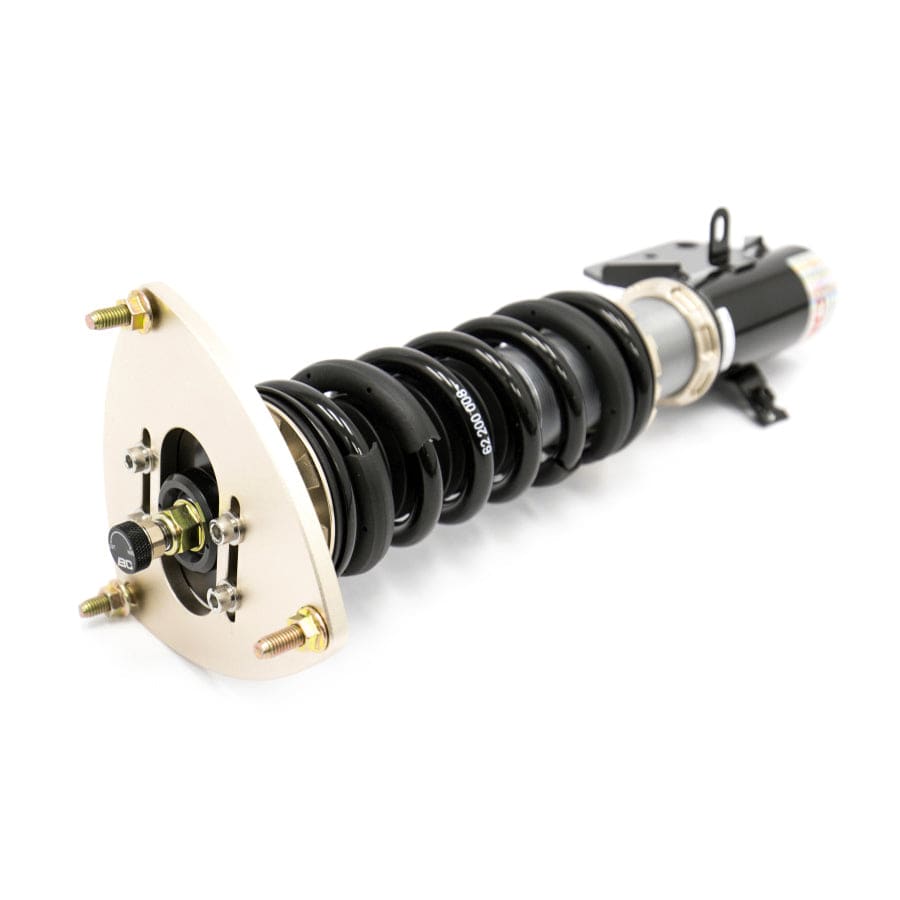

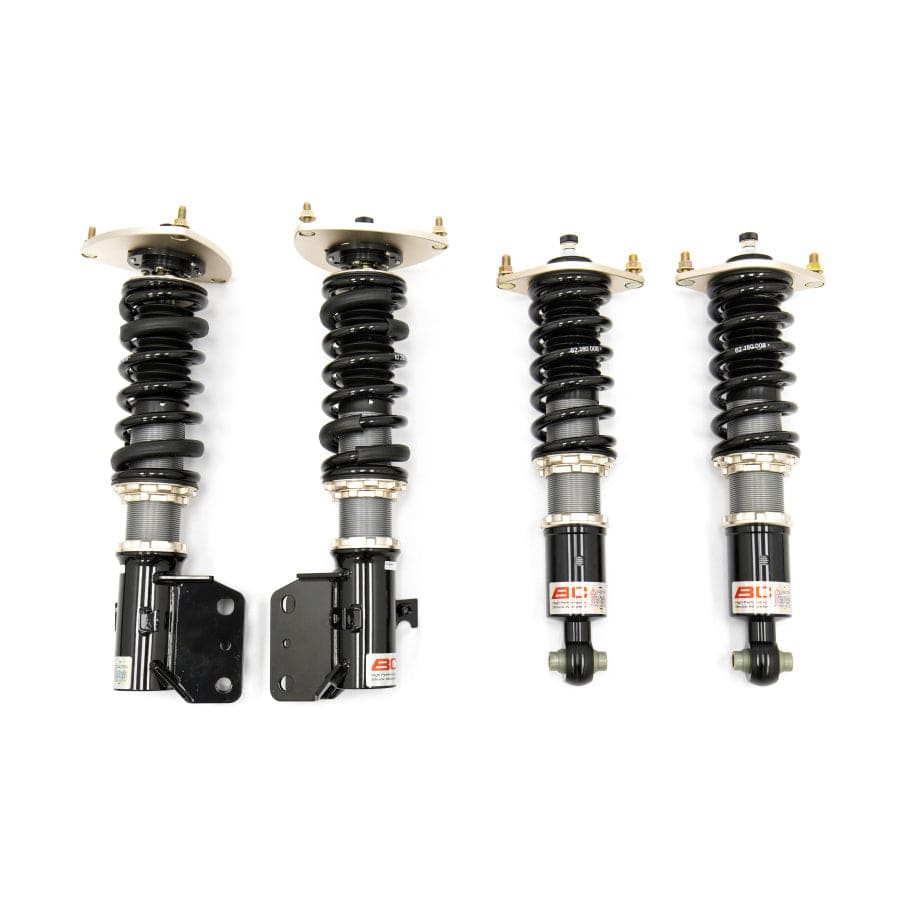

These BC Racing DS Series coilovers fit the 2008-2014 Lexus IS F RWD (XE20). They blend street-tuned ride quality with track-ready adjustability, giving you more body control than any OEM damper without the harshness of a pure race kit. Every kit is developed specifically for the Lexus XE20 IS F and refined to balance ride quality with performance, which is why BC coilovers are the best-selling adjustable kits in their segment worldwide.
DS Series kits pair a mono-tube damper with BC's proprietary digressive piston design, increased low-speed damping for flat corner entry, compliant high-speed response over expansion joints and potholes. The finished shock body is silver, visually distinct from the BR Series, and ride height is adjustable independent of spring preload. The off-the-shelf setup from BC Racing is deliberately balanced, spring rates and valving chosen so the kit feels comfortable day-to-day without giving up performance when you push it. Drivers who want a different recipe can spec Swift Springs, custom spring rates, or fully custom valving at checkout; BC will tune the dampers to match, which is a depth of customization most brands only offer on their top-tier kits.
BC Racing's reputation in the aftermarket suspension world is built on four things: competitive pricing that beats the rest of the fully-adjustable market, customization depth that rivals the top-tier race brands, long-term reliability earned over 20 years of production, and a rebuildable design that keeps the same set of dampers serving you through multiple builds. These BC Racing XE20 IS F coilovers arrive ready to bolt in, with no break-in period and no guessing at setup. Every kit ships with a 2-year manufacturer warranty, lifetime access to BC service parts (pistons, seals, shafts, no unit replacement required when it's time for a rebuild), and in-house tech support from both BC Racing and the Springrates team.
Features
- 30-level simultaneous compression/rebound damping adjuster
- Mono-tube damper with BC's proprietary digressive piston
- Silver satin-chrome finished shock body (visually distinct from the BR Series)
- Ride height adjustable independent of spring preload
- Upper mount hardware varies by chassis, camber plates, pillowball, or reused OEM mounts. See the Specifications table for what's included on your kit.
- Swift Spring and custom spring rate upgrades available at checkout
- Custom damper valving paired with custom spring rates on request
- Fully rebuildable, replacement parts available from BC for the life of the shock
- 2-year manufacturer warranty against defects
Specifications
| Part Number | R-02-DS |
| Part Name | DS Series Coilovers |
| Vehicle | 2008-2014 Lexus IS F |
| Drivetrain | RWD |
| Damping Adjustment | 1-Way (30 levels) |
| Ride-Height Adjustable | Yes |
| Spring Rate - Front | 11 kg/mm |
| Spring Rate - Rear | 7 kg/mm |
| Spring Size - Front | 62-220-11 |
| Spring Size - Rear | 62-220-7 |
| Swift Springs - Front | 62-203-X |
| Swift Springs - Rear | 62-203-X |
| Top Mounts - Front | Aluminum Mounts with Rubber Bushings |
| Top Mounts - Rear | Rubber Mounts |
| Rear Damping Extenders | Optional |
| Suspension Design - Front | True Coilover |
| Suspension Design - Rear | True Coilover |
| Notes |
|
