Product Details

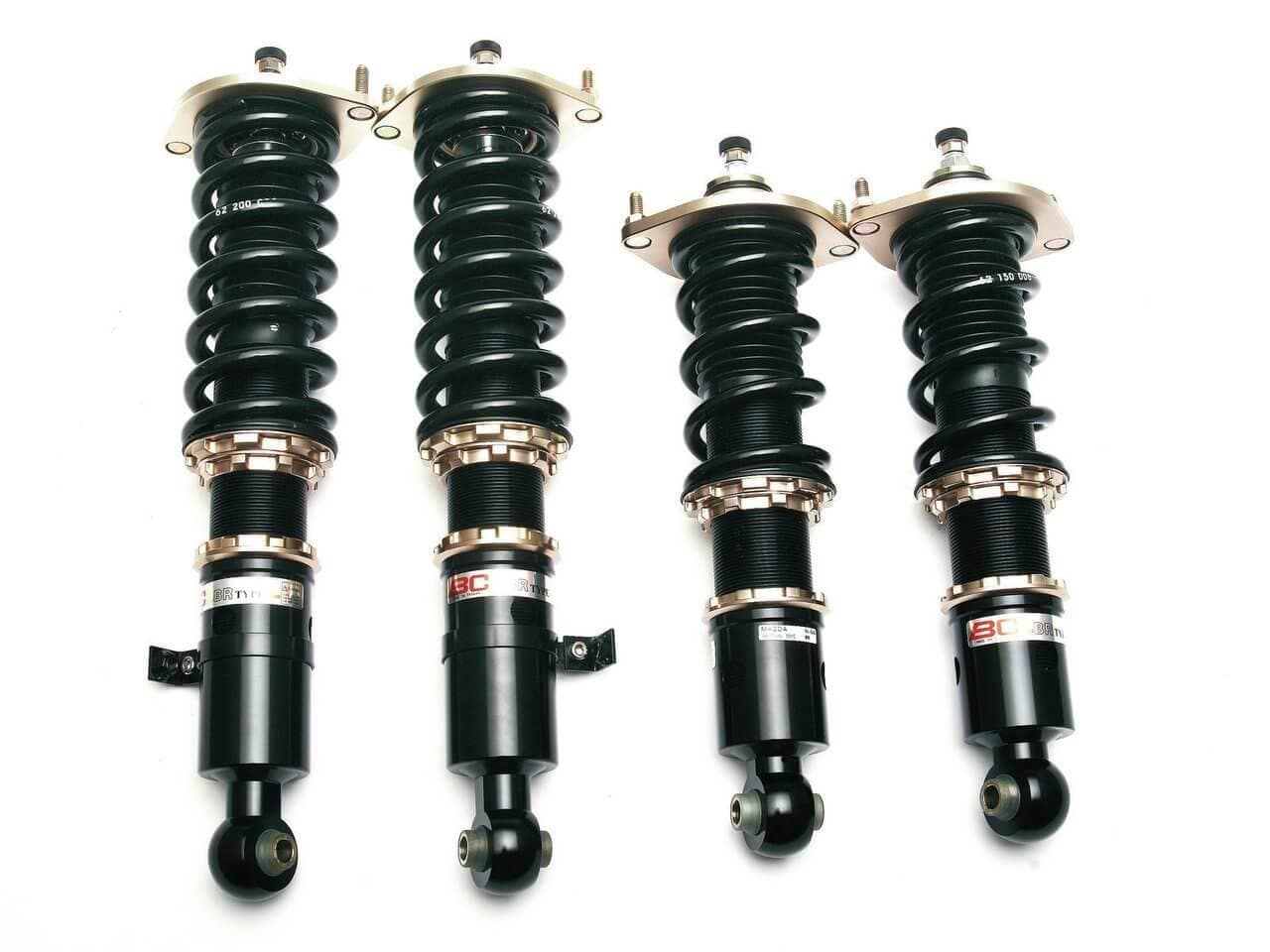

BC Racing BR Series Coilovers for the 2003-2011 Honda Element (YH1/YH2) are BC Racing's entry-level coilover and the most popular kit in their entire lineup, they offer the most accessible entry into adjustable coilover suspension without sacrificing performance, comfort, build quality, or handling. Every kit is extensively tested on the Element chassis and refined until it balances ride quality with performance, the reason Element coilovers from BC Racing are the best-selling adjustable kits in their segment worldwide.

Every BR Series kit is built around a mono-tube damper with simultaneous compression and rebound adjustment at every corner, a wide damping range without the complexity of a race-only setup. Ride height is fully adjustable independent of spring preload, so you set the stance and the ride separately. The off-the-shelf setup from BC Racing is deliberately balanced, spring rates and valving chosen so the kit feels comfortable day-to-day without giving up performance when you push it. Drivers who want a different recipe can spec Swift Springs, custom spring rates, or fully custom valving at checkout; BC will tune the dampers to match, which is a depth of customization most brands only offer on their top-tier kits.

BC Racing's reputation in the aftermarket suspension world is built on four things: competitive pricing that beats the rest of the fully-adjustable market, customization depth that rivals the top-tier race brands, long-term reliability earned over 20 years of production, and a rebuildable design that keeps the same set of dampers serving you through multiple builds. These Element coilovers arrive tuned for the Element chassis and ready to bolt in, no break-in period, no guessing at setup. Every kit ships with a 2-year manufacturer warranty, lifetime access to BC service parts (pistons, seals, shafts, no unit replacement required when it's time for a rebuild), and in-house tech support from both BC Racing and the Springrates team.

Features

  • 30-level simultaneous compression/rebound damping adjuster
  • Mono-tube damper with linear piston and hardened chrome shaft
  • Ride height adjustable independent of spring preload
  • Upper mount hardware varies by chassis, camber plates, pillowball, or reused OEM mounts. See the Specifications table for what's included on your kit.
  • Swift Spring and custom spring rate upgrades available at checkout
  • Custom damper valving paired with custom spring rates on request
  • Fully rebuildable, replacement parts available from BC for the life of the shock
  • 2-year manufacturer warranty against defects
Specifications
Part Number A-59-BR
Part Name BR Series Coilovers
Vehicle 2003-2011 Honda Element
Drivetrain FWD/AWD
Chassis Code YH1/YH2
Damping Adjustment 1-Way (30 levels)
Ride-Height Adjustable Yes
Spring Rate - Front 5.5 kg/mm
Spring Rate - Rear 12 kg/mm
Spring Size - Front 62-220-5.5K
Spring Size - Rear 62-140-12K
Swift Springs - Front 62-203-X
Swift Springs - Rear 62-127-X
Top Mounts - Front Camber Plates
Top Mounts - Rear Rubber Mounts
Rear Damping Extenders Optional
Suspension Design - Front True Coilover
Suspension Design - Rear True Coilover
Notes
  • No lifted builds.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2003HondaElementAWDNo lifted builds.
2003HondaElementFWDNo lifted builds.
2004HondaElementAWDNo lifted builds.
2004HondaElementFWDNo lifted builds.
2005HondaElementAWDNo lifted builds.
2005HondaElementFWDNo lifted builds.
2006HondaElementAWDNo lifted builds.
2006HondaElementFWDNo lifted builds.
2007HondaElementAWDNo lifted builds.
2007HondaElementFWDNo lifted builds.
2008HondaElementAWDNo lifted builds.
2008HondaElementFWDNo lifted builds.
2009HondaElementAWDNo lifted builds.
2009HondaElementFWDNo lifted builds.
2010HondaElementAWDNo lifted builds.
2010HondaElementFWDNo lifted builds.
2011HondaElementAWDNo lifted builds.
2011HondaElementFWDNo lifted builds.
