Product Details

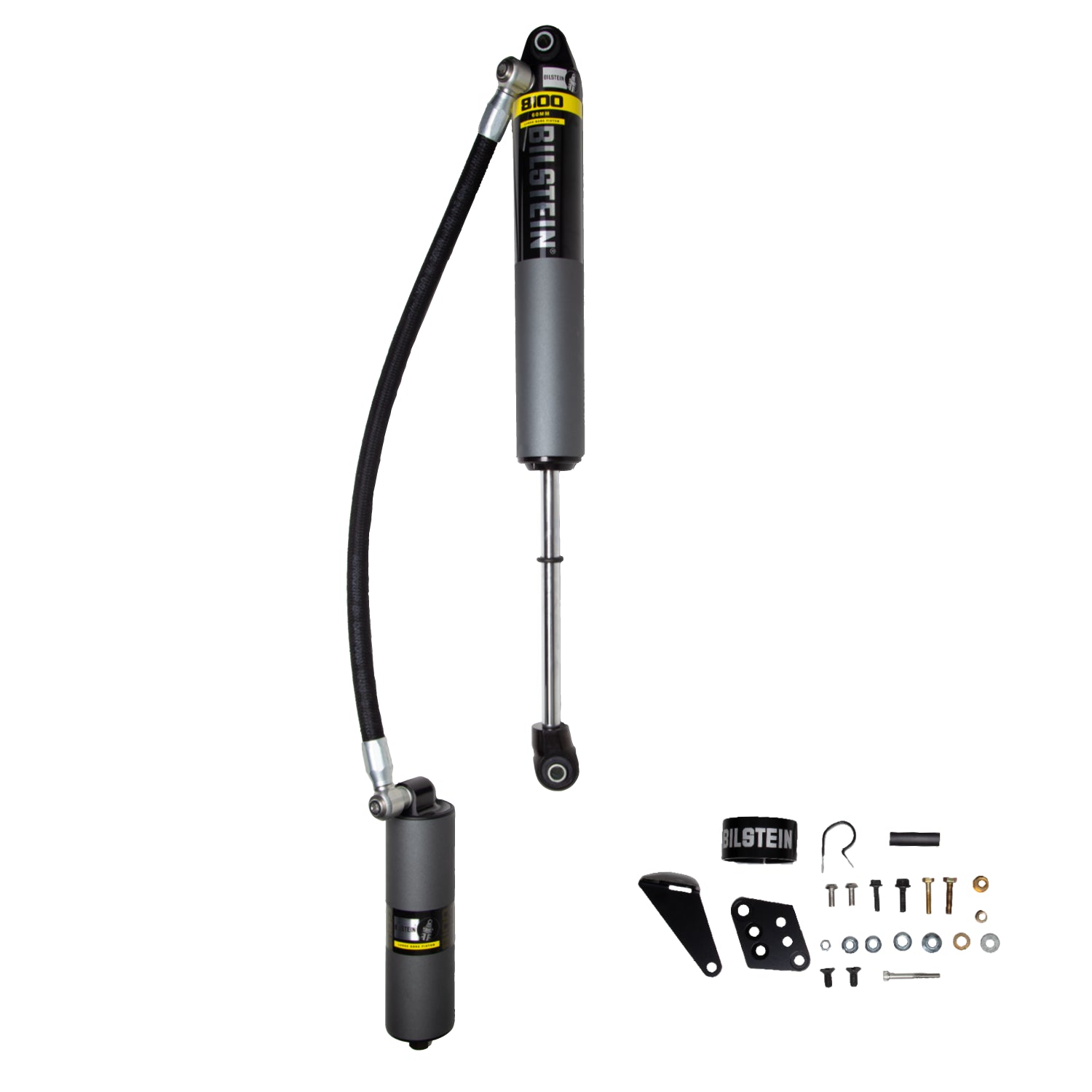

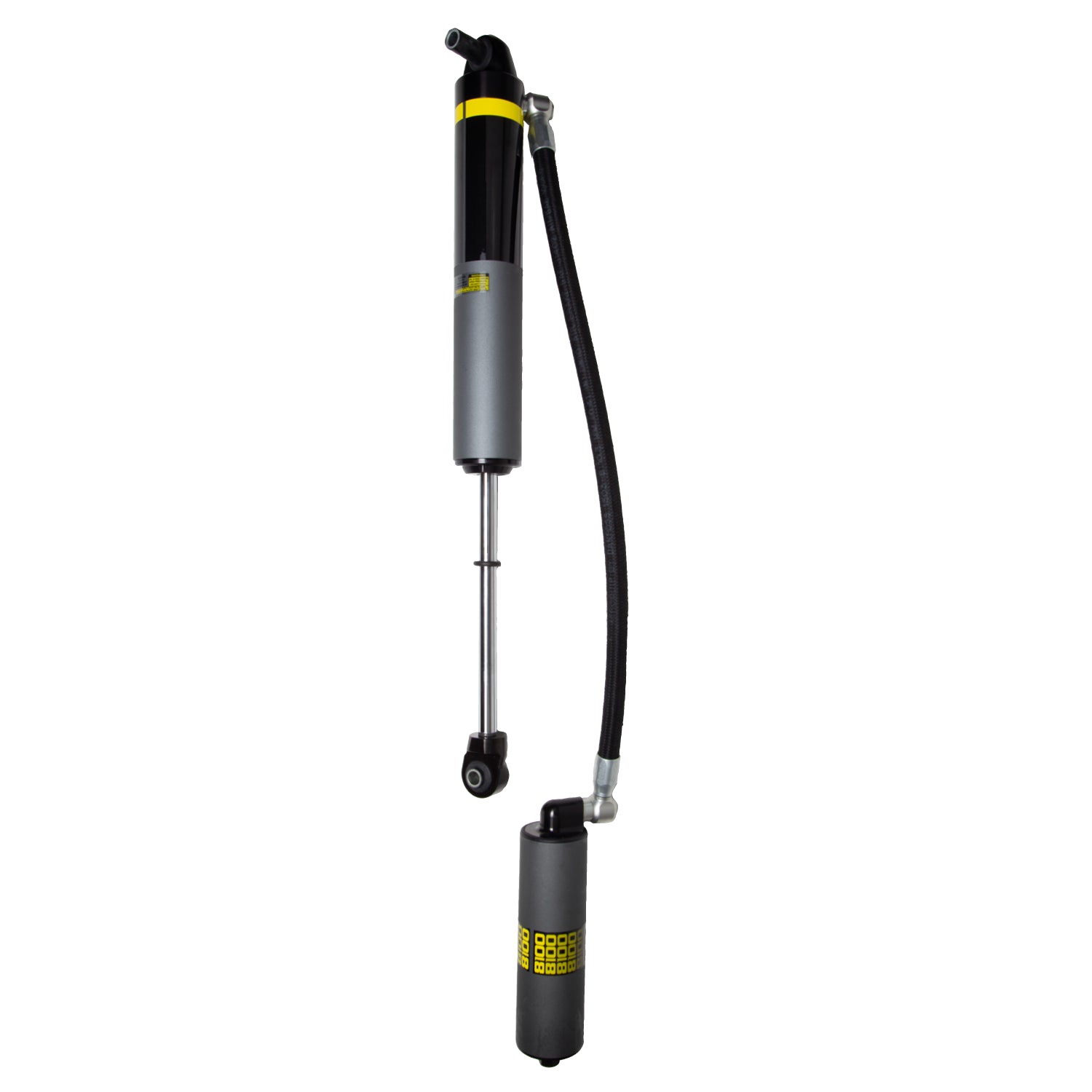

The Bilstein B8 shocks are built for a 2018-2026 Jeep Wrangler (JL) that has been lifted or leveled, valved for the taller ride height rather than fighting it.
This is a direct-fit part. It mounts in the original locations with the original hardware, so nothing needs modifying, and it carries Bilstein's limited lifetime warranty.
Features
- 60mm large bore digressive piston offers a greater range of tunability and delivers exceptional comfort without sacrificing control
- Direct fit for an easy installation
- 60mm remote reservoir offers increased oil capacity for consistent performance over rough terrain
Specifications
| Part Number | 25-330540 |
| Part Name | Shock Absorber |
| UPC | 651860916910 |
| Vehicle | 2018-2026 Jeep Wrangler |
| Chassis Code | JL |
| Drivetrain | 4WD |
| Adjustable Damping | Non-Adjustable |
| Body Design | Smooth Body (Non-Coilover) |
| Boot Included | No |
| Collapsed Length | 18.22 in. (462.8mm) |
| Extended Length | 28.89 in. (733.8mm) |
| Finish | EVO Grey |
| Internal Design | Monotube |
| Lower Mount Type | Eye 12.8mm |
| Piston Diameter | 60mm |
| Vehicle Placement | Front Right |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 8100 |
| Shaft Diameter | 18mm |
| Spring Seat Included | No |
| Upper Mount Type | Eye 12.8mm |
| Notes | Fits Vehicles With 3-4.5" Front Lift; Requires appropriate bump stop extensions and aftermarket driveshaft |
