Product Details

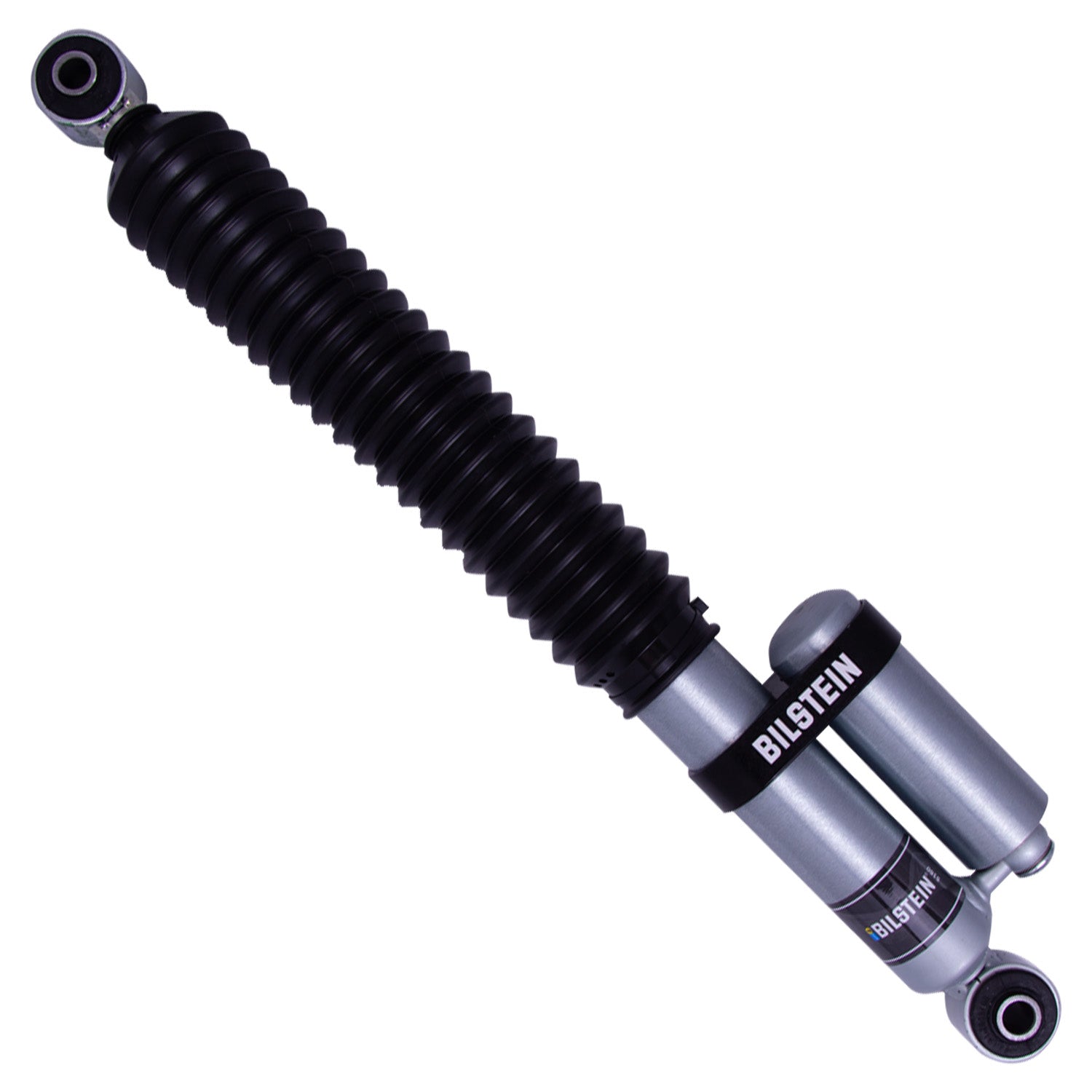

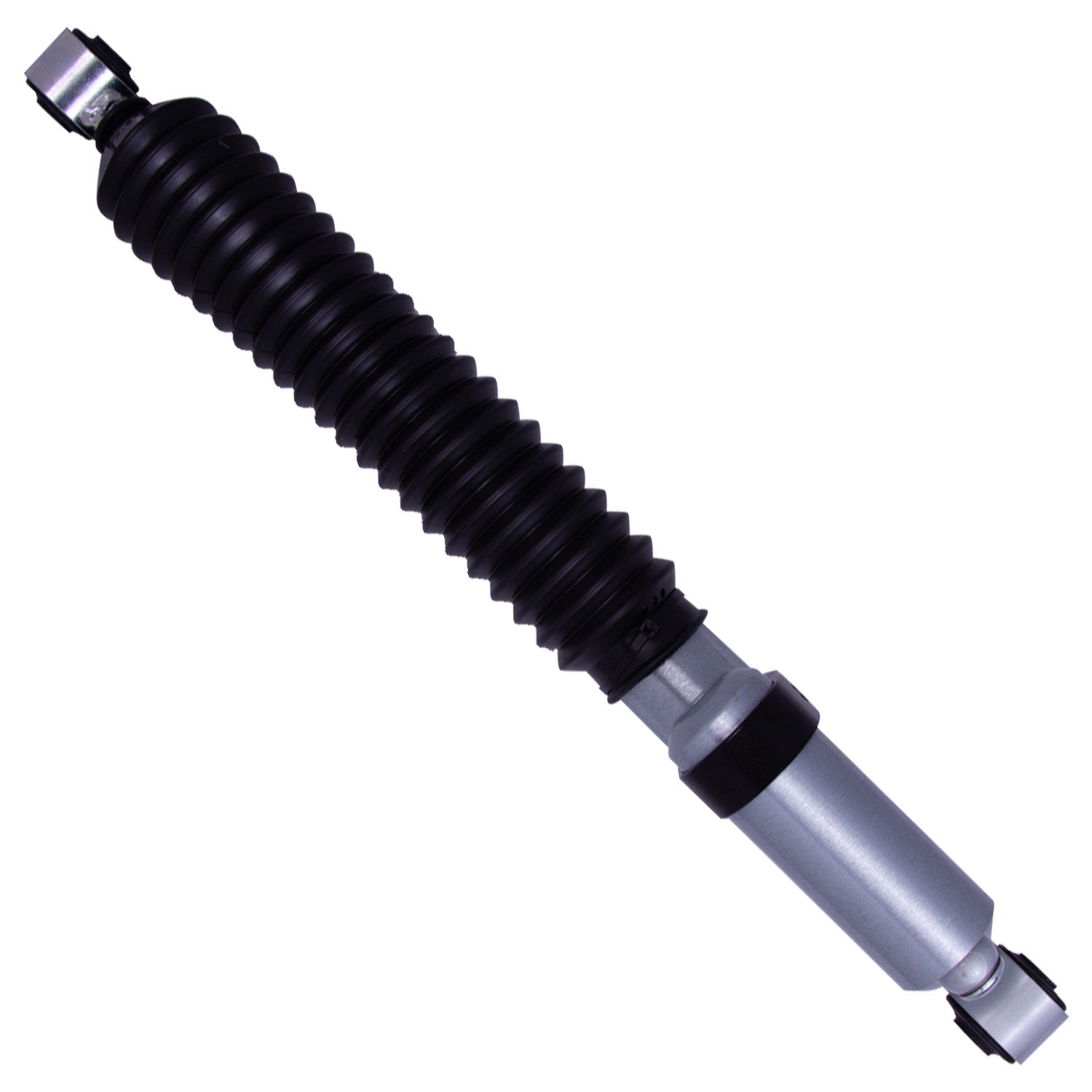

The Bilstein B8 shocks are built for a 2015-2022 GMC Canyon (GMT31XX) that has been lifted or leveled, valved for the taller ride height rather than fighting it.
The monotube design is what sets Bilstein apart. A single high-pressure gas chamber keeps the oil from aerating, so the damping stays consistent on a rough road instead of fading as the unit heats up.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
- Remote reservoir increases shock oil capacity for greater heat dissipation
Specifications
| Part Number | 25-316926 |
| Part Name | Shock Absorber |
| UPC | 651860895017 |
| Vehicle | 2015-2022 GMC Canyon |
| Chassis Code | GMT31XX |
| Drivetrain | RWD/4WD |
| Adjustable Damping | Non-Adjustable |
| Billet Reservoir Clamp Included | Yes |
| Body Design | Smooth Body (Non-Coilover) |
| Boot Included | Black Bellows |
| Collapsed Length | 14.8 in. (376mm) |
| Extended Length | 23.58 in. (599mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.4mm |
| Piston Diameter | 46mm |
| Vehicle Placement | Rear |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 5160 |
| Shaft Diameter | 14mm |
| Spring Seat Included | No |
| Stroke/Travel Length | 8.78 in. (223mm) |
| Upper Mount Type | Eye 14.4mm |
| Notes | Fits Vehicles With 0-1.5" Rear Lift |
