Product Details

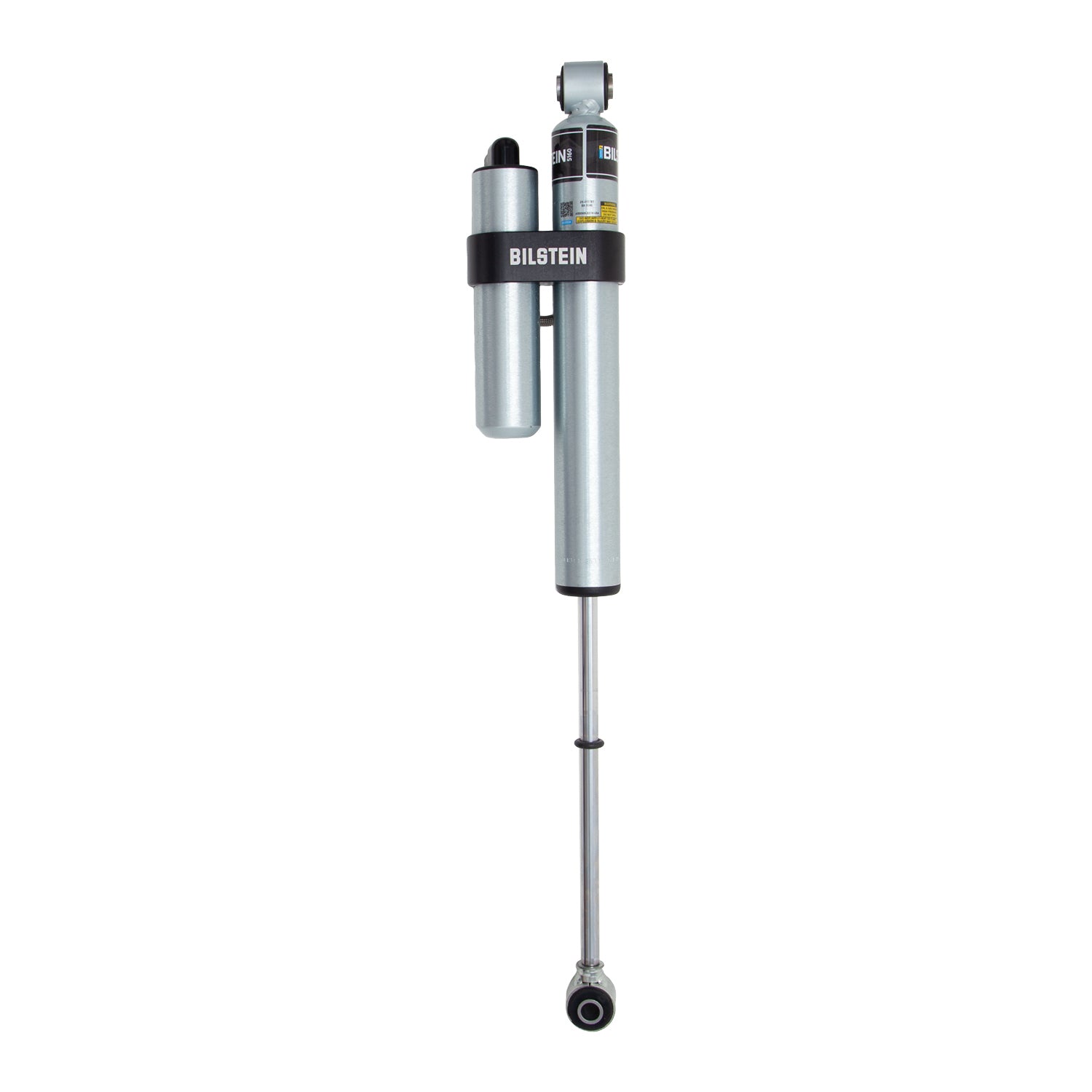

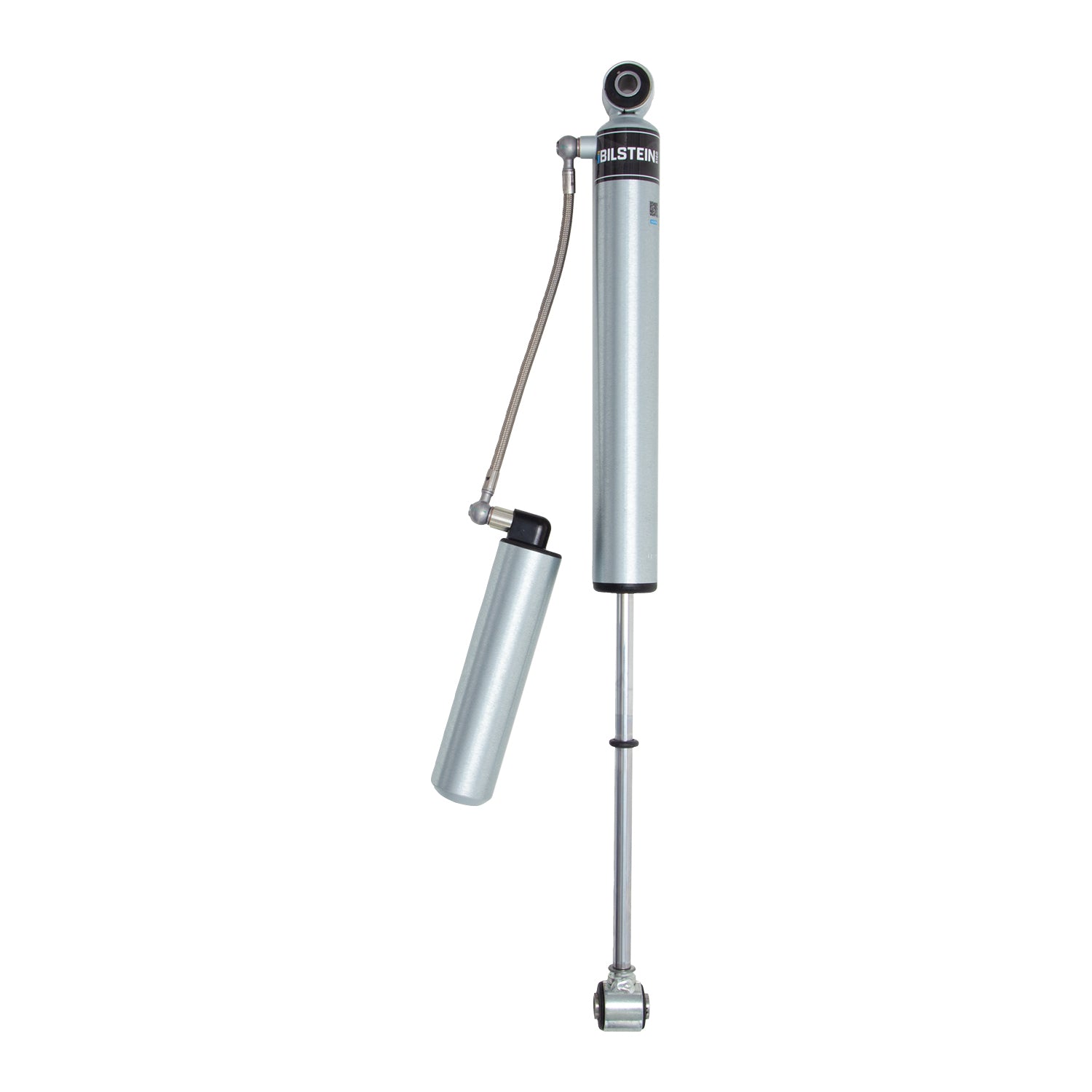

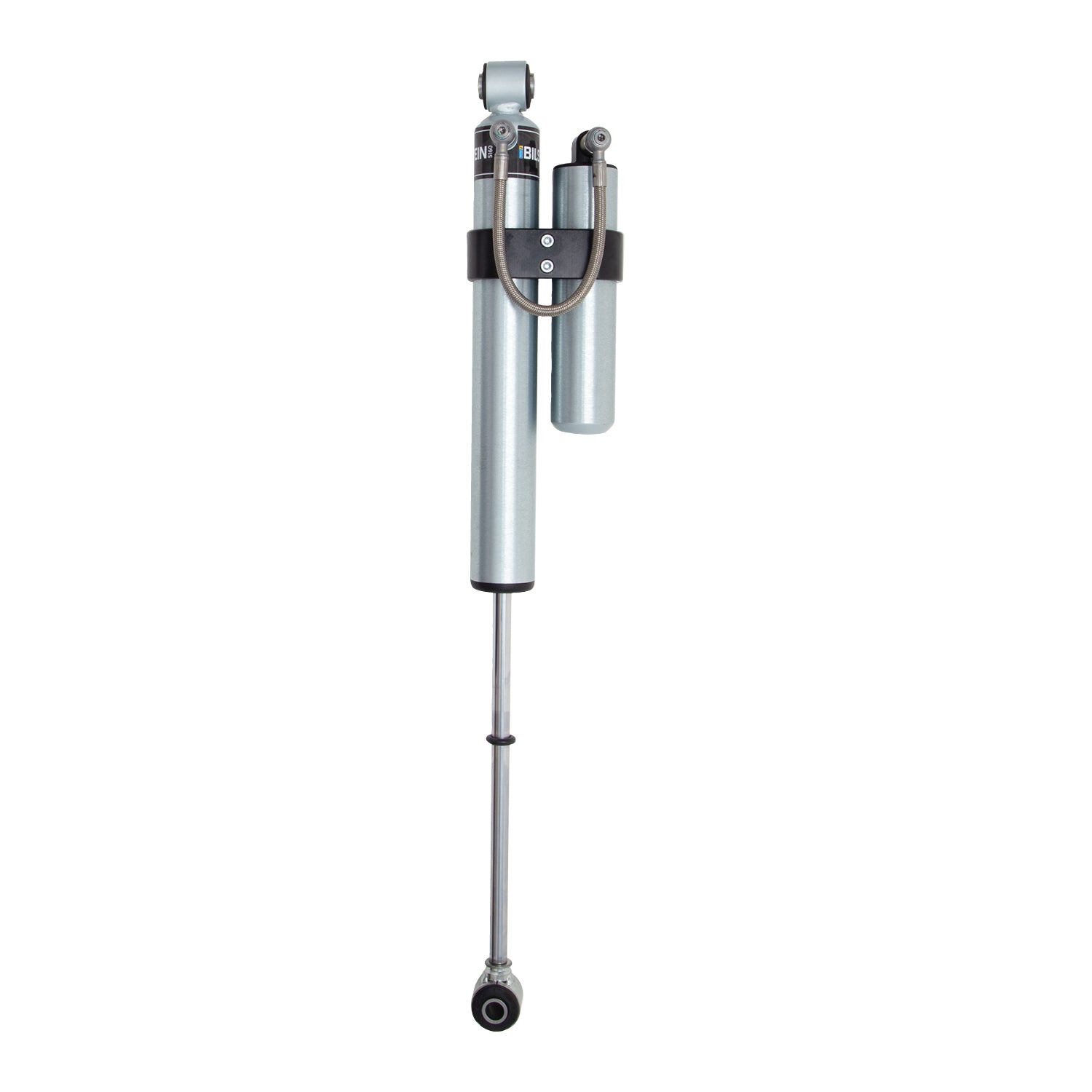

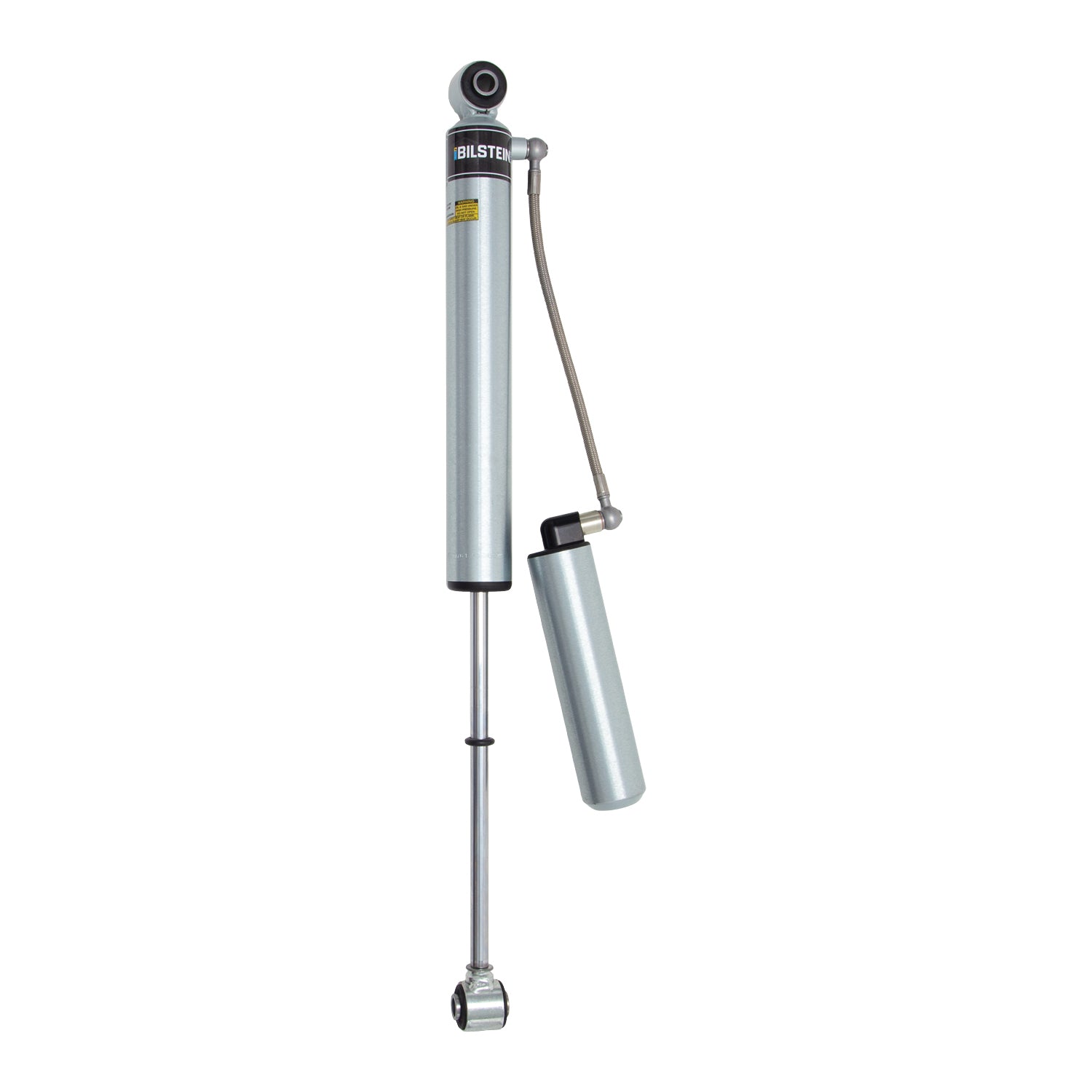

The Bilstein B8 shocks are built for a 1994-2012 Dodge Ram 3500 (BR/BE/DR/DH/DS) that has been lifted or leveled, valved for the taller ride height rather than fighting it.
Built in Germany to original-equipment standards and finished to survive road salt and grit, this is a bolt-in part with no modification required. Backed by Bilstein's limited lifetime warranty.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
- Remote reservoir increases shock oil capacity for greater heat dissipation
Specifications
| Part Number | 25-311761 |
| Part Name | Shock Absorber |
| UPC | 651860911885 |
| Vehicle | 1994-2012 Dodge Ram 3500 |
| Chassis Code | BR/BE/DR/DH/DS |
| Drivetrain | 4WD |
| Adjustable Damping | Non-Adjustable |
| Billet Reservoir Clamp Included | Yes |
| Body Design | Smooth Body (Non-Coilover) |
| Boot Included | No |
| Collapsed Length | 16.56 in. (420.5mm) |
| Extended Length | 28.13 in. (714.7mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.4mm |
| Piston Diameter | 46mm |
| Vehicle Placement | Rear |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 5160 |
| Shaft Diameter | 14mm |
| Spring Seat Included | No |
| Stroke/Travel Length | 11.57 in. (293.9mm) |
| Upper Mount Type | Eye 14.4mm |
| Notes | Fits Vehicles With 0-2" Rear Lift |
