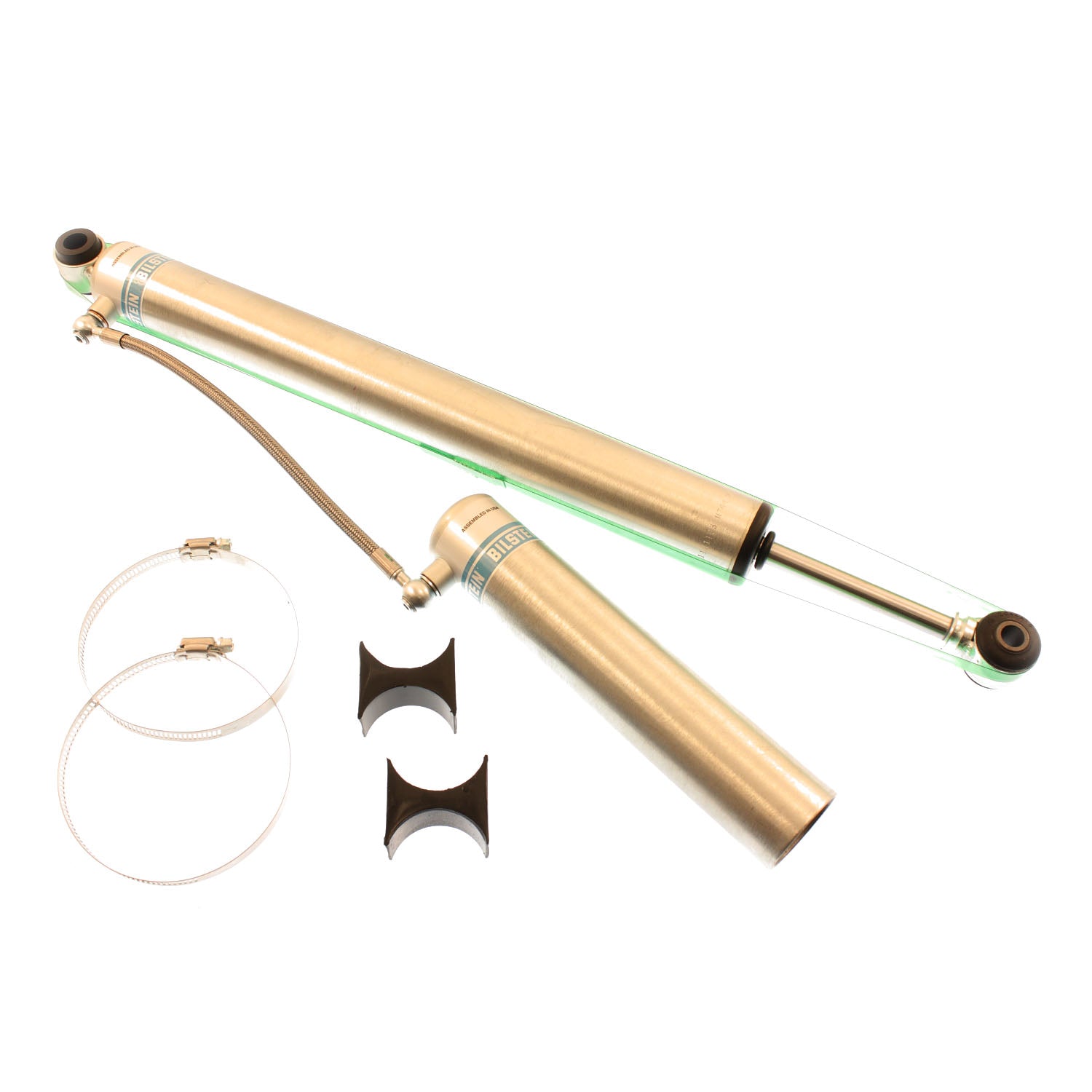

Product Details
The Bilstein B8 5160 shock absorber is sold for custom and motorsport builds, here at 20.28 in. collapsed. There is no vehicle lookup here: you select on dimension, mounting, and the damping you want.
Inside is Bilstein's monotube design, gas and oil separated by a floating piston. That is what keeps the damping honest when the surface turns rough and the temperature climbs.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
- Remote reservoir increases shock oil capacity for greater heat dissipation
Specifications
| Part Number | 25-311822 |
| Part Name | Shock Absorber |
| UPC | 651860663210 |
| Adjustable Damping | Non-Adjustable |
| Billet Reservoir Clamp Included | No |
| Body Design | Smooth Body (Non-Coilover) |
| Boot Included | No |
| Collapsed Length | 20.28 in. (515mm) |
| Extended Length | 34.39 in. (873.5mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 12.1mm |
| Optional Reservoir Clamp | 11-176015 |
| Piston Diameter | 46mm |
| Vehicle Placement | Rear |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 5160 |
| Shaft Diameter | 14mm |
| Spring Seat Included | No |
| Stroke/Travel Length | 14.11 in. (358.4mm) |
| Upper Mount Type | Eye 16mm |
