Product Details

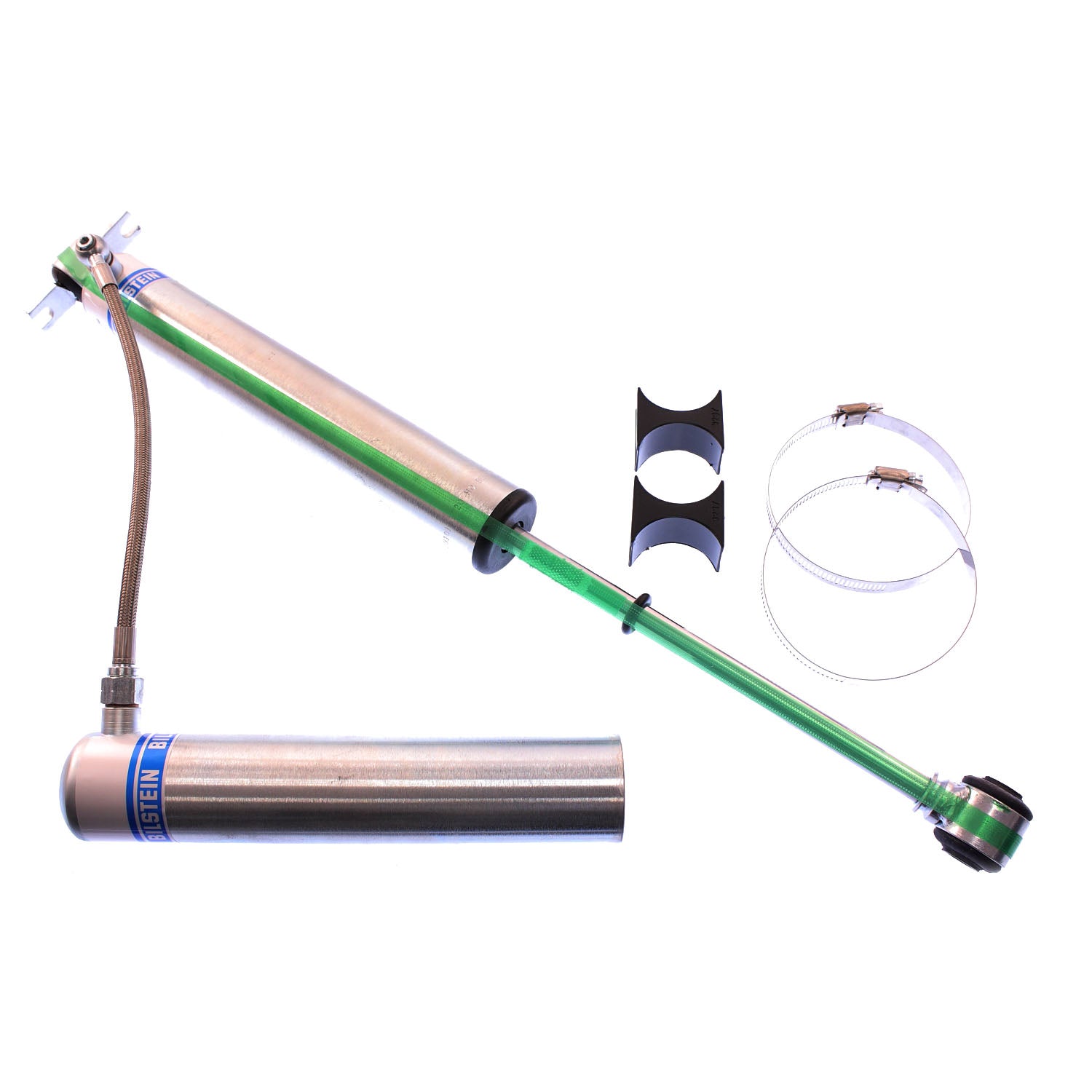

The Bilstein B8 5160 shock absorber is specified by dimension rather than by vehicle, here at 14.95 in. collapsed. It is the part you reach for when the build does not match a catalog application and you need a damper sized to the car you actually have.
Bilstein supplies suspension as original equipment to manufacturers worldwide and applies the same engineering here. Covered by a limited lifetime warranty.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
- Remote reservoir increases shock oil capacity for greater heat dissipation
Specifications
| Part Number | 25-311976 |
| Part Name | Shock Absorber |
| UPC | 651860645544 |
| Adjustable Damping | Non-Adjustable |
| Billet Reservoir Clamp Included | No |
| Body Design | Smooth Body (Non-Coilover) |
| Boot Included | No |
| Collapsed Length | 14.95 in. (379.7mm) |
| Extended Length | 25 in. (635mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 12.1mm |
| Optional Reservoir Clamp | 11-176015 |
| Piston Diameter | 46mm |
| Vehicle Placement | Rear |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 5160 |
| Shaft Diameter | 14mm |
| Spring Seat Included | No |
| Stroke/Travel Length | 10.05 in. (255.3mm) |
| Upper Mount Type | Bar Pin |
