Product Details

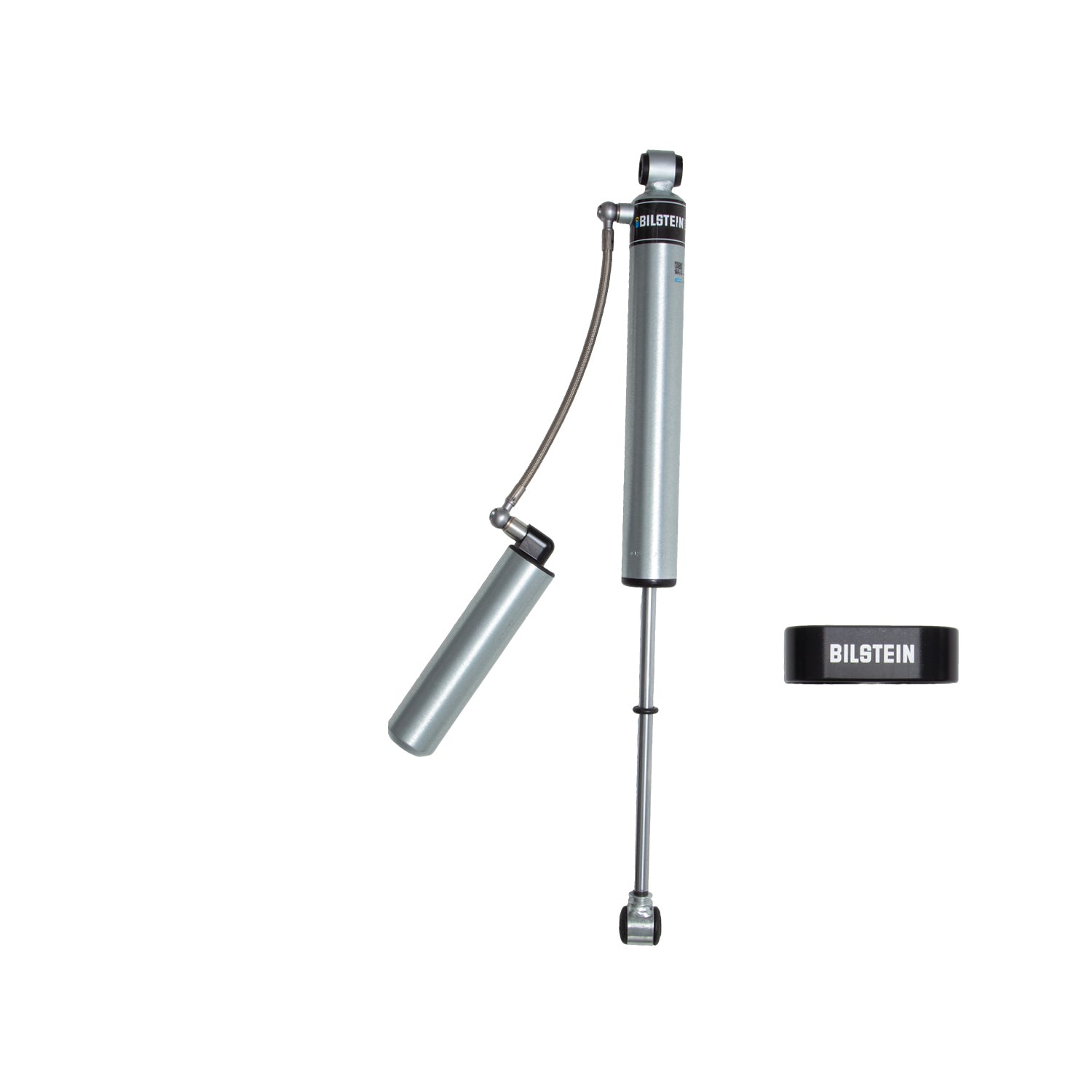

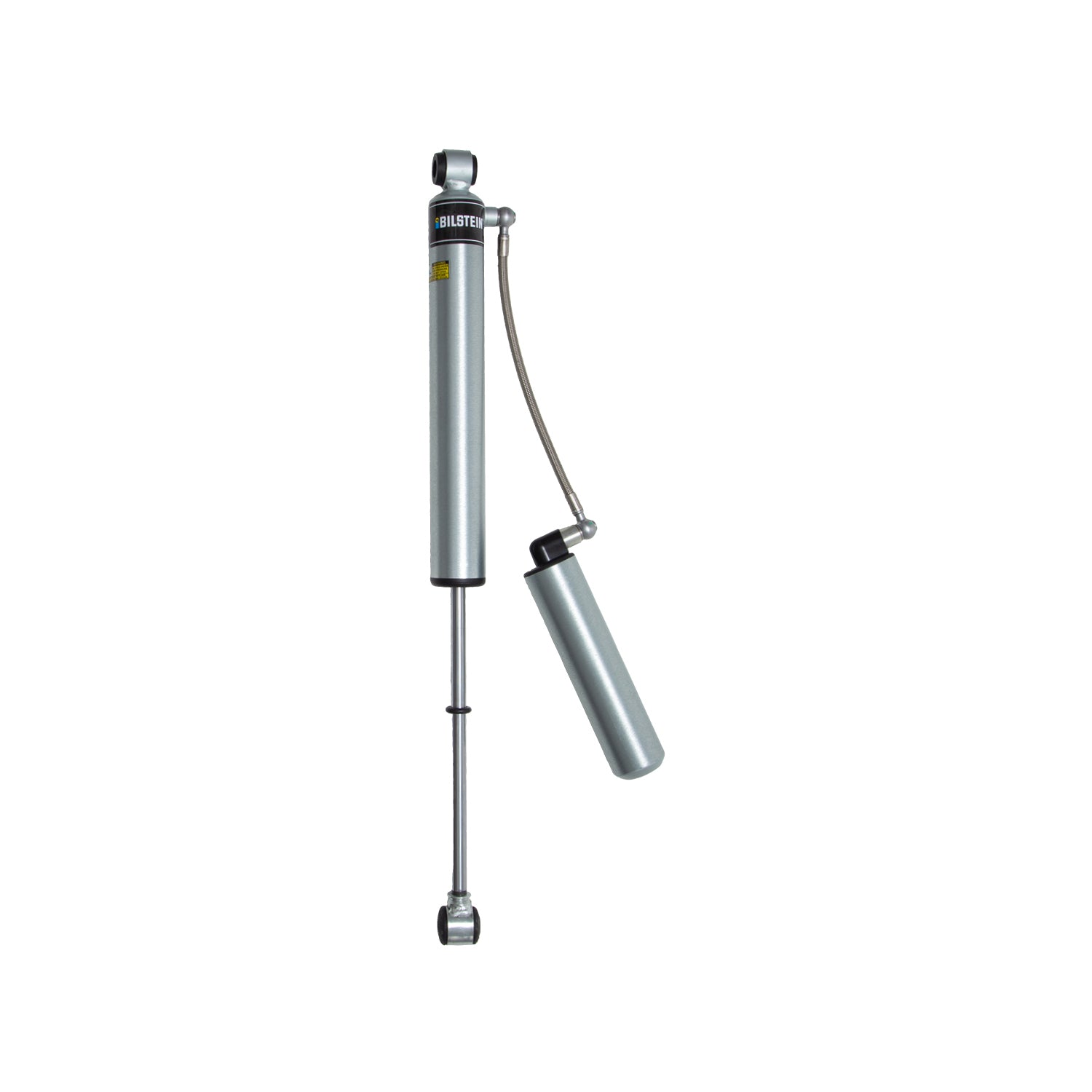

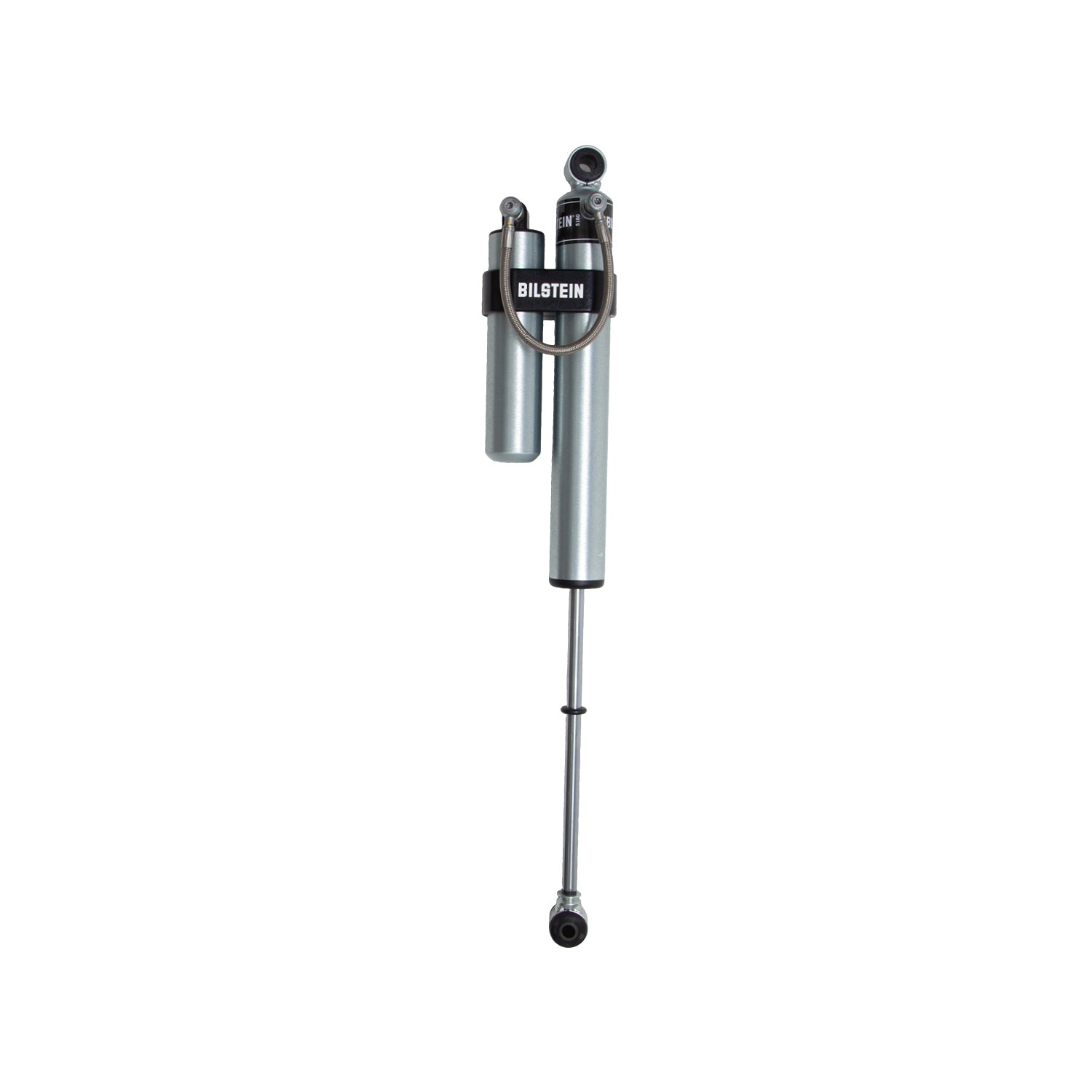

The Bilstein B8 shocks are built for a 1999-2004 Ford F-350 Super Duty (PN-96) that has been lifted or leveled, valved for the taller ride height rather than fighting it.
Bilstein invented the monotube gas damper and has been building suspension in Germany since 1954. Every unit is built to the same standard the company supplies to the manufacturers themselves, and it is backed by a limited lifetime warranty.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
- Remote reservoir increases shock oil capacity for greater heat dissipation
Specifications
| Part Number | 25-311877 |
| Part Name | Shock Absorber |
| UPC | 651860912516 |
| Vehicle | 1999-2004 Ford F-350 Super Duty |
| Chassis Code | PN-96 |
| Drivetrain | 4WD |
| Adjustable Damping | Non-Adjustable |
| Billet Reservoir Clamp Included | Yes |
| Body Design | Smooth Body (Non-Coilover) |
| Boot Included | No |
| Collapsed Length | 15.96 in. (405.5mm) |
| Extended Length | 27.13 in. (689.2mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 12mm |
| Piston Diameter | 46mm |
| Vehicle Placement | Front |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 5160 |
| Shaft Diameter | 14mm |
| Spring Seat Included | No |
| Stroke/Travel Length | 11.06 in. (280.9mm) |
| Upper Mount Type | Eye 16mm |
| Notes | Fits Vehicles With 4-6" Front Lift |
