Product Details

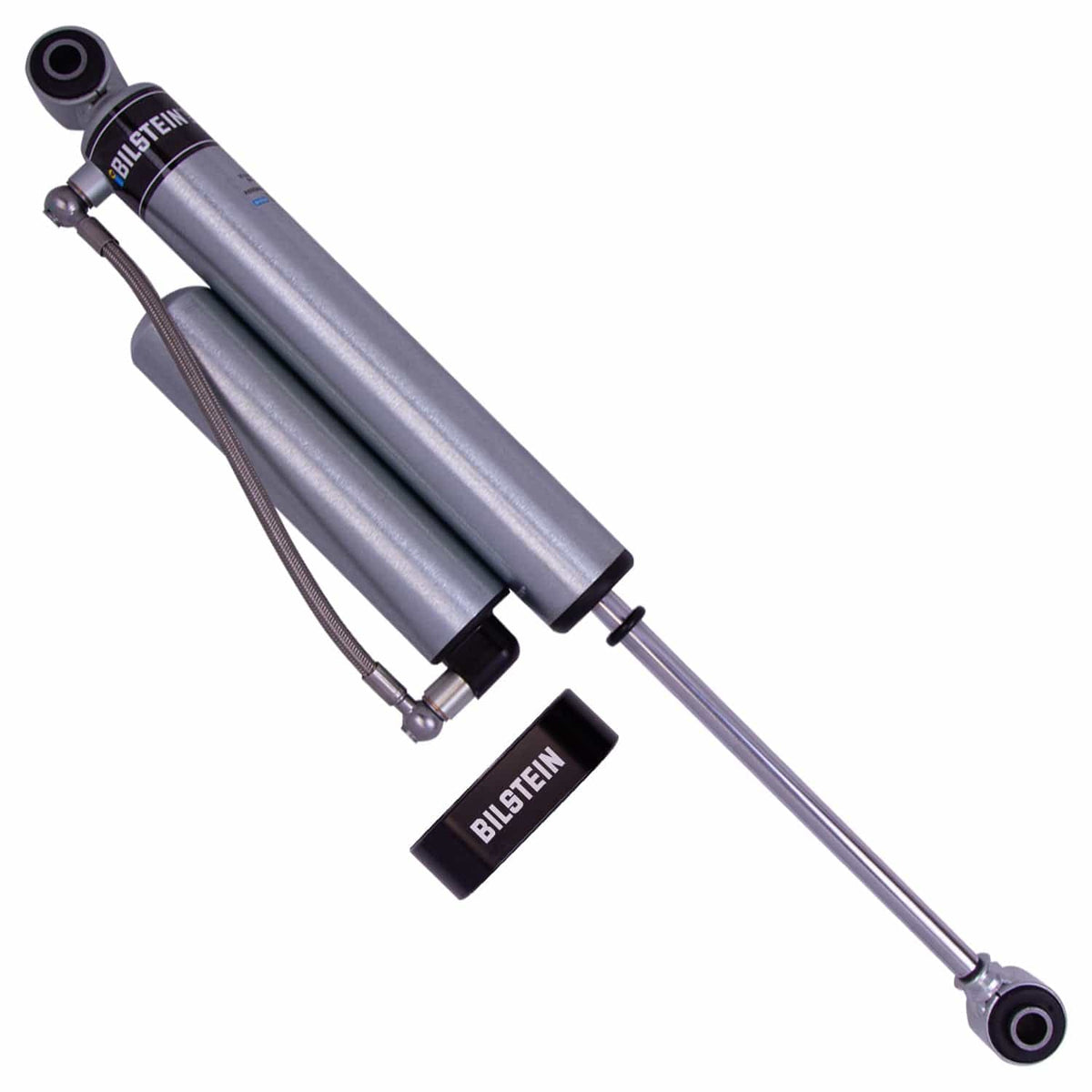

Lifting or leveling a 2003-2011 Mercedes-Benz G55 AMG (W463) changes what the dampers have to do. The Bilstein B8 shocks are built for that taller stance and stay composed on rough ground.
Bilstein supplies suspension as original equipment to manufacturers around the world, and applies the same engineering here. It fits the factory mounting points exactly and is covered by a limited lifetime warranty.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
- Remote reservoir increases shock oil capacity for greater heat dissipation
Specifications
| Part Number | 25-312164 |
| Part Name | Shock Absorber |
| UPC | 651860959160 |
| Vehicle | 2003-2011 Mercedes-Benz G55 AMG |
| Chassis Code | W463 |
| Drivetrain | 4WD |
| Adjustable Damping | Non-Adjustable |
| Billet Reservoir Clamp Included | Yes |
| Body Design | Smooth Body (Non-Coilover) |
| Boot Included | No |
| Collapsed Length | 16 in. (406.5mm) |
| Extended Length | 24.57 in. (624mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Stem |
| Piston Diameter | 46mm |
| Vehicle Placement | Front Right |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 5160 |
| Shaft Diameter | 14mm |
| Spring Seat Included | No |
| Stroke/Travel Length | 8.57 in. (217.7mm) |
| Upper Mount Type | Eye 16mm |
| Notes | Fits Vehicles With 0-2" Front Lift |
