Product Details

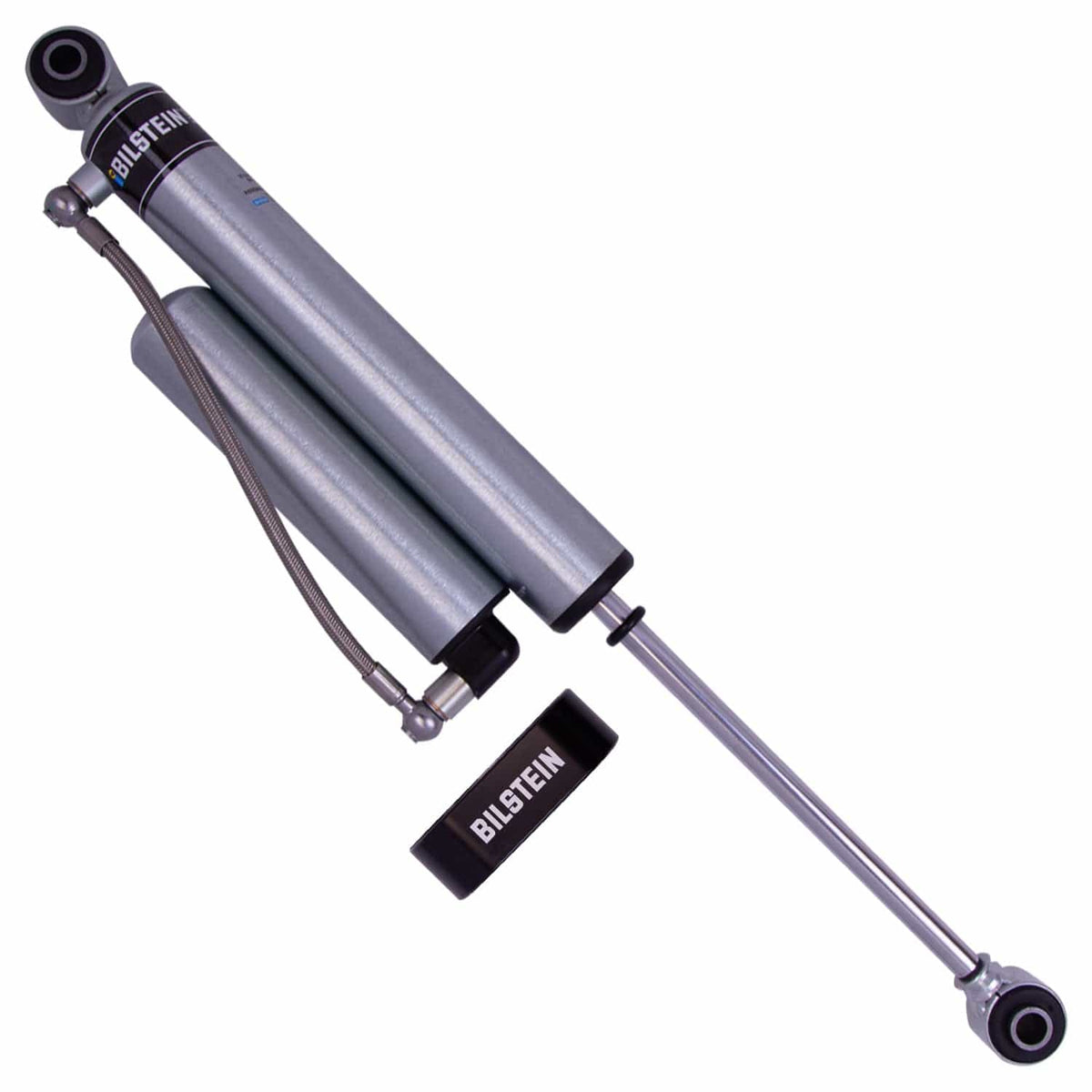

The Bilstein B8 shocks are built for a 2002-2008 Mercedes-Benz G500 (W463) that has been lifted or leveled, valved for the taller ride height rather than fighting it.
The monotube design is what sets Bilstein apart. A single high-pressure gas chamber keeps the oil from aerating, so the damping stays consistent on a rough road instead of fading as the unit heats up.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
- Remote reservoir increases shock oil capacity for greater heat dissipation
Specifications
| Part Number | 25-312164 |
| Part Name | Shock Absorber |
| UPC | 651860959160 |
| Vehicle | 2002-2008 Mercedes-Benz G500 |
| Chassis Code | W463 |
| Drivetrain | 4WD |
| Adjustable Damping | Non-Adjustable |
| Billet Reservoir Clamp Included | Yes |
| Body Design | Smooth Body (Non-Coilover) |
| Boot Included | No |
| Collapsed Length | 16 in. (406.5mm) |
| Extended Length | 24.57 in. (624mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Stem |
| Piston Diameter | 46mm |
| Vehicle Placement | Front Right |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 5160 |
| Shaft Diameter | 14mm |
| Spring Seat Included | No |
| Stroke/Travel Length | 8.57 in. (217.7mm) |
| Upper Mount Type | Eye 16mm |
| Notes | Fits Vehicles With 0-2" Front Lift |
