Product Details

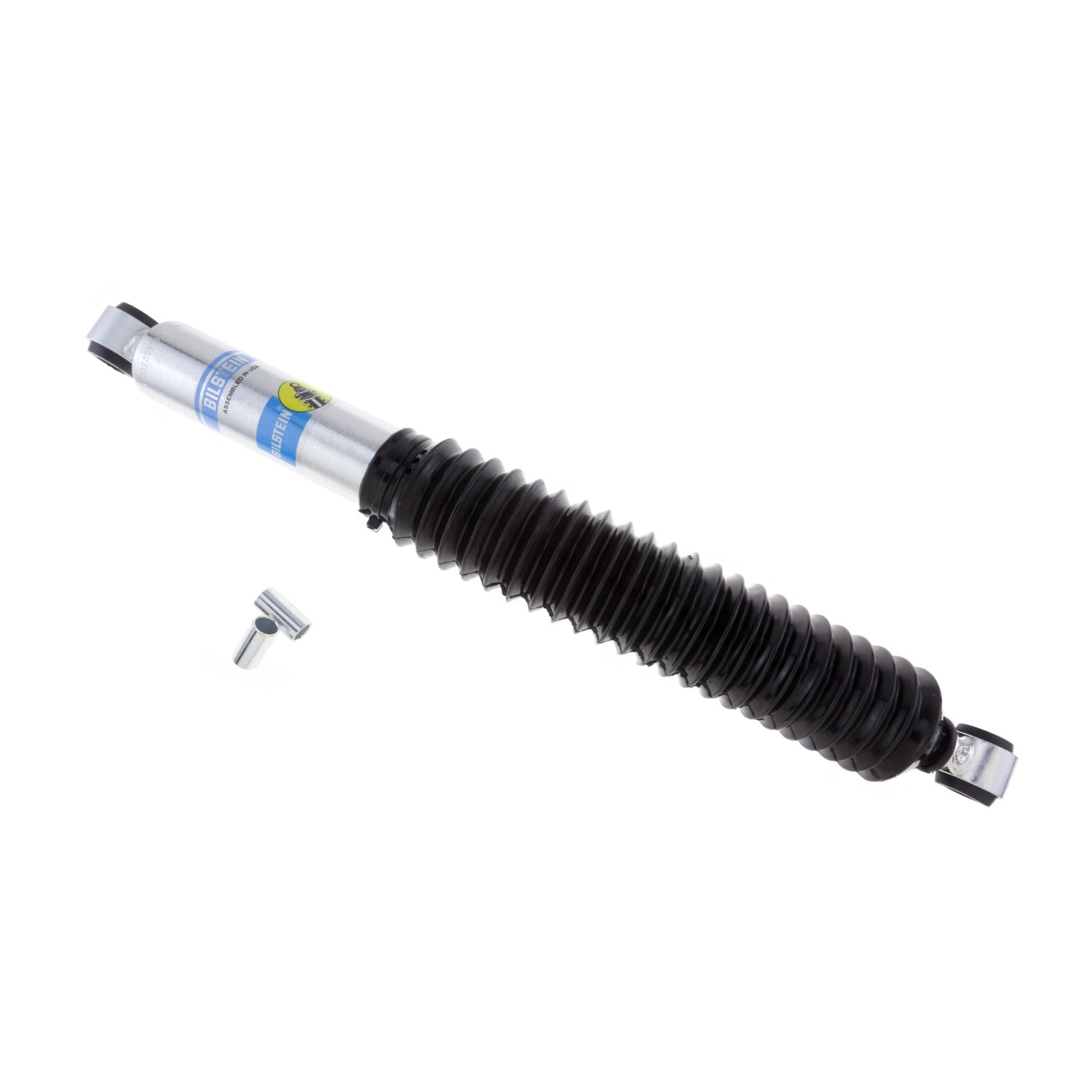

Lifting or leveling a 1976-1986 Jeep CJ7 (CJ) changes what the dampers have to do. The Bilstein B8 shocks are built for that taller stance and stay composed on rough ground.
This is a direct-fit part. It mounts in the original locations with the original hardware, so nothing needs modifying, and it carries Bilstein's limited lifetime warranty.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Part Number | 33-230313 |
| Part Name | Shock Absorber |
| UPC | 651860727349 |
| Vehicle | 1976-1986 Jeep CJ7 |
| Chassis Code | CJ |
| Drivetrain | 4WD |
| Adjustable Damping | Non-Adjustable |
| Body Design | Smooth Body (Non-Coilover) |
| Boot Included | Black Bellows |
| Collapsed Length | 13.66 in. (347mm) |
| Compression @ 0.52m/s | 595 |
| Extended Length | 21.7 in. (551.2mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 5/8 in. |
| Mount Type | Eye-to-Eye |
| Piston Diameter | 46mm |
| Vehicle Placement | Rear |
| Rebound @ 0.52m/s | 1810 |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5125 |
| Shaft Diameter | 14mm |
| Spring Seat Included | No |
| Stroke/Travel Length | 8.04 in. (204.2mm) |
| Upper Mount Type | Eye 5/8 in. |
| Notes | Fits Vehicles With 2-2.5" Rear Lift |
