Product Details

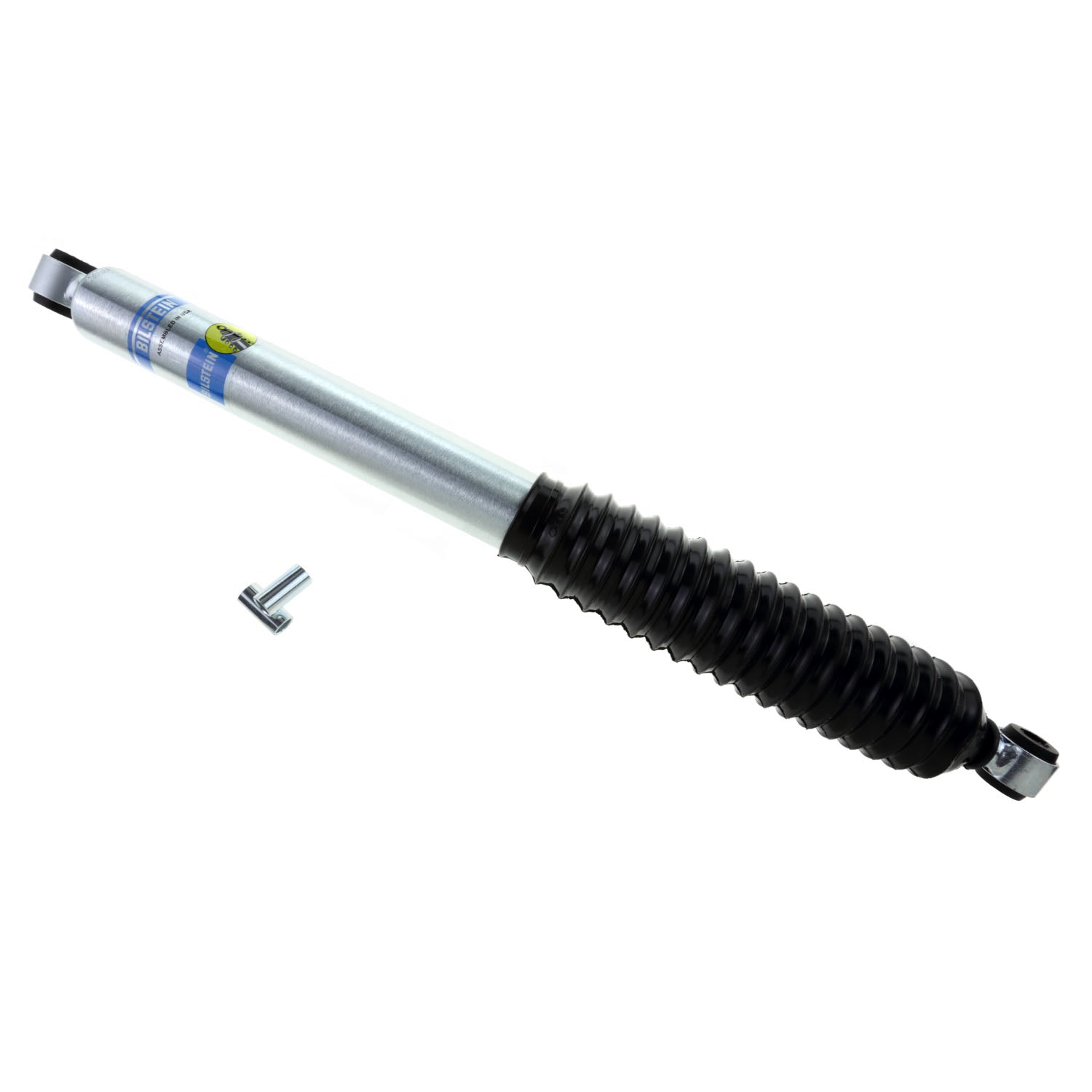

Lifting or leveling a 1999-2004 Ford F-250 Super Duty (PN-96) changes what the dampers have to do. The Bilstein B8 shocks are built for that taller stance and stay composed on rough ground.
This is a direct-fit part. It mounts in the original locations with the original hardware, so nothing needs modifying, and it carries Bilstein's limited lifetime warranty.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Part Number | 33-104645 |
| Part Name | Shock Absorber |
| UPC | 651860631547 |
| Vehicle | 1999-2004 Ford F-250 Super Duty |
| Chassis Code | PN-96 |
| Drivetrain | 4WD |
| Adjustable Damping | Non-Adjustable |
| Body Design | Smooth Body (Non-Coilover) |
| Boot Included | Black Bellows |
| Collapsed Length | 15.91 in. (404mm) |
| Compression @ 0.52m/s | 595 |
| Extended Length | 25.91 in. (658.2mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 5/8 in. |
| Mount Type | Eye-to-Eye |
| Piston Diameter | 46mm |
| Vehicle Placement | Front |
| Rebound @ 0.52m/s | 1810 |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5125 |
| Shaft Diameter | 14mm |
| Spring Seat Included | No |
| Stroke/Travel Length | 10.01 in. (254.3mm) |
| Upper Mount Type | Eye 5/8 in. |
| Notes | Fits Vehicles With 4-6" Front Lift; Use With Double Shock Kit |
