Product Details

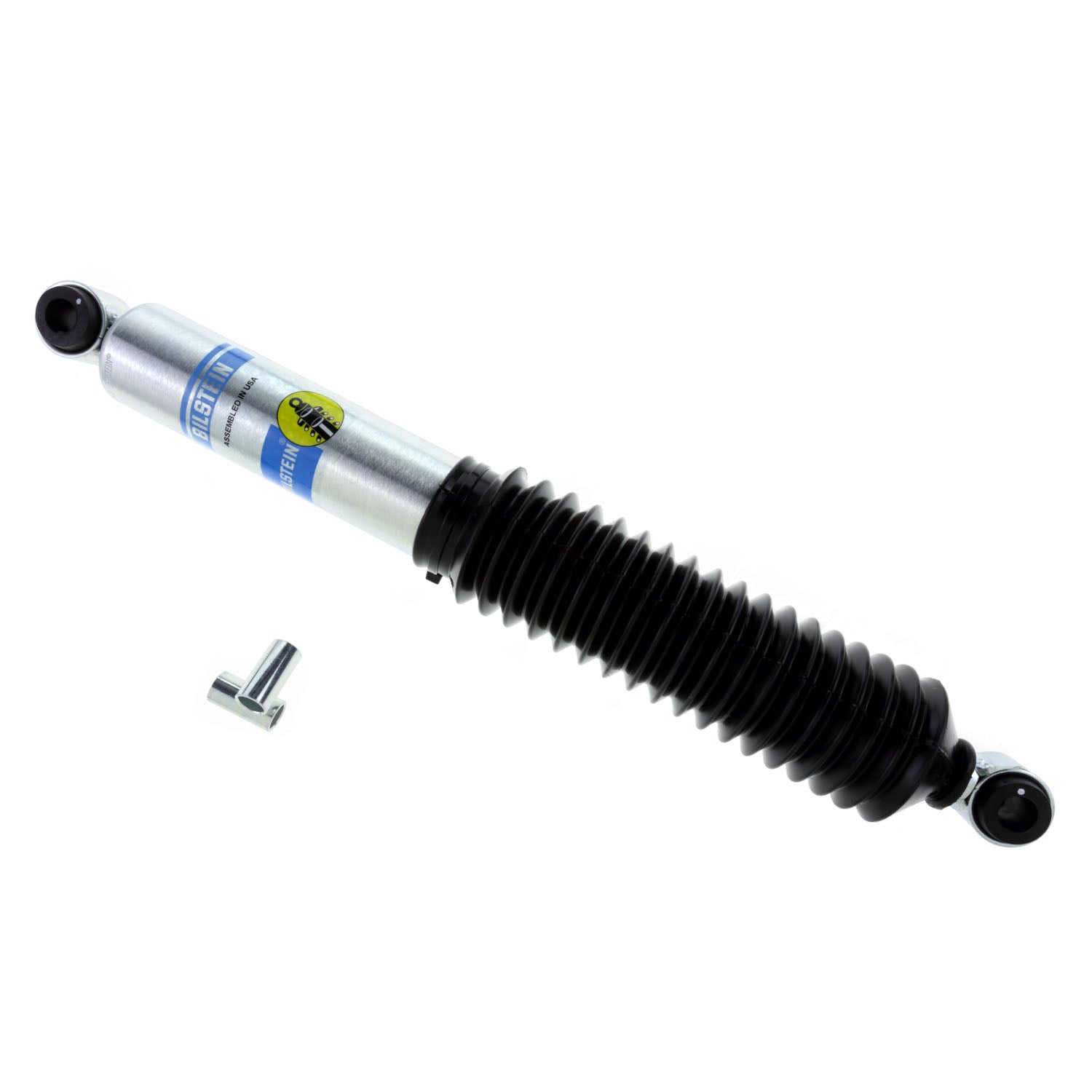

The Bilstein B8 shocks are built for a 1959-1975 Jeep CJ5 (CJ) that has been lifted or leveled, valved for the taller ride height rather than fighting it.
Bilstein invented the monotube gas damper and has been building suspension in Germany since 1954. Every unit is built to the same standard the company supplies to the manufacturers themselves, and it is backed by a limited lifetime warranty.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Part Number | 33-062518 |
| Part Name | Shock Absorber |
| UPC | 651860644110 |
| Vehicle | 1959-1975 Jeep CJ5 |
| Chassis Code | CJ |
| Drivetrain | 4WD |
| Adjustable Damping | Non-Adjustable |
| Body Design | Smooth Body (Non-Coilover) |
| Boot Included | Black Bellows |
| Collapsed Length | 12.07 in. (306.5mm) |
| Compression @ 0.52m/s | 620 |
| Extended Length | 18.53 in. (470.7mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 5/8 in. |
| Mount Type | Eye-to-Eye |
| Piston Diameter | 46mm |
| Vehicle Placement | Front |
| Rebound @ 0.52m/s | 2495 |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5125 |
| Shaft Diameter | 14mm |
| Spring Seat Included | No |
| Stroke/Travel Length | 6.46 in. (164.1mm) |
| Upper Mount Type | Eye 5/8 in. |
| Notes | Fits Vehicles With 0-1" Front Lift |
