Product Details

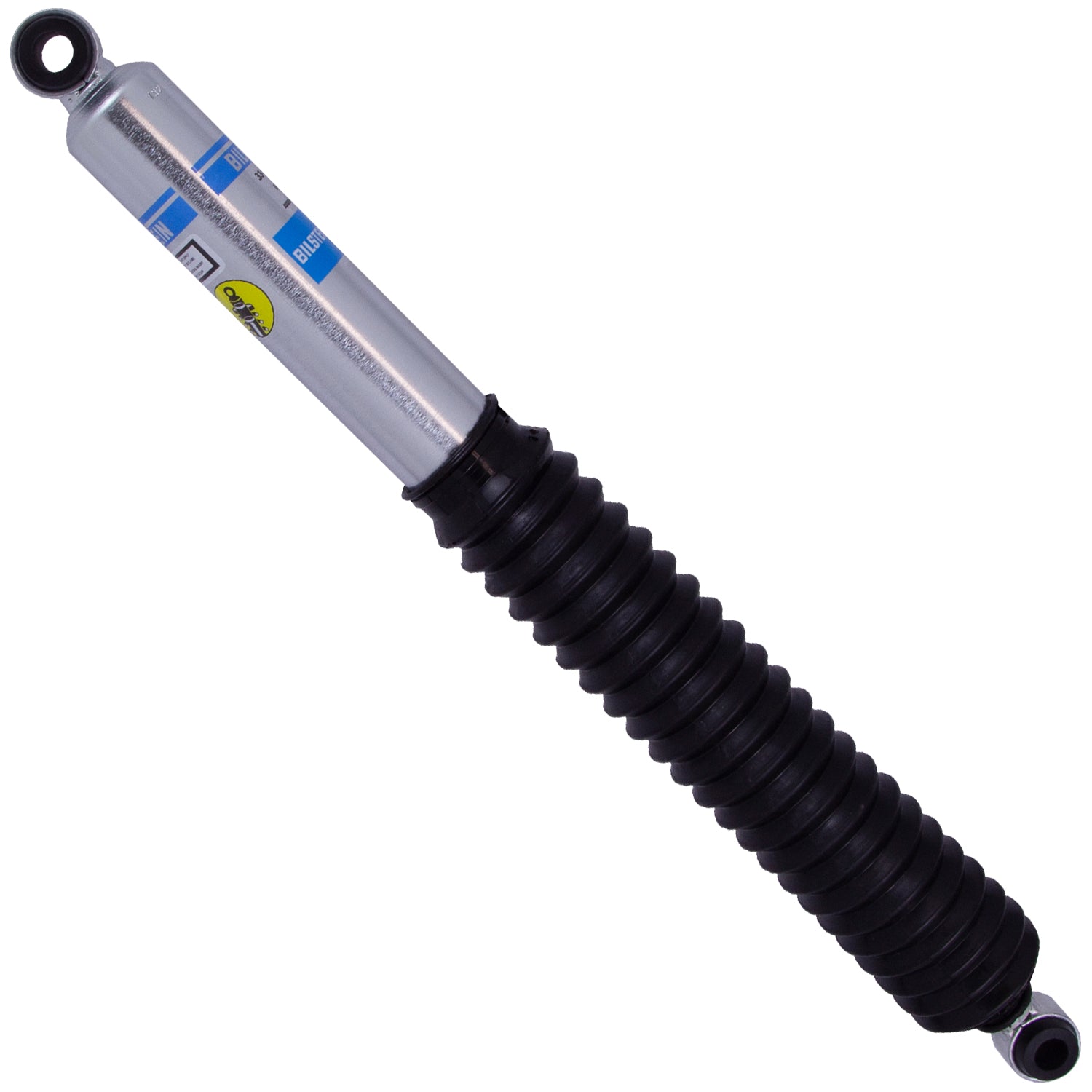

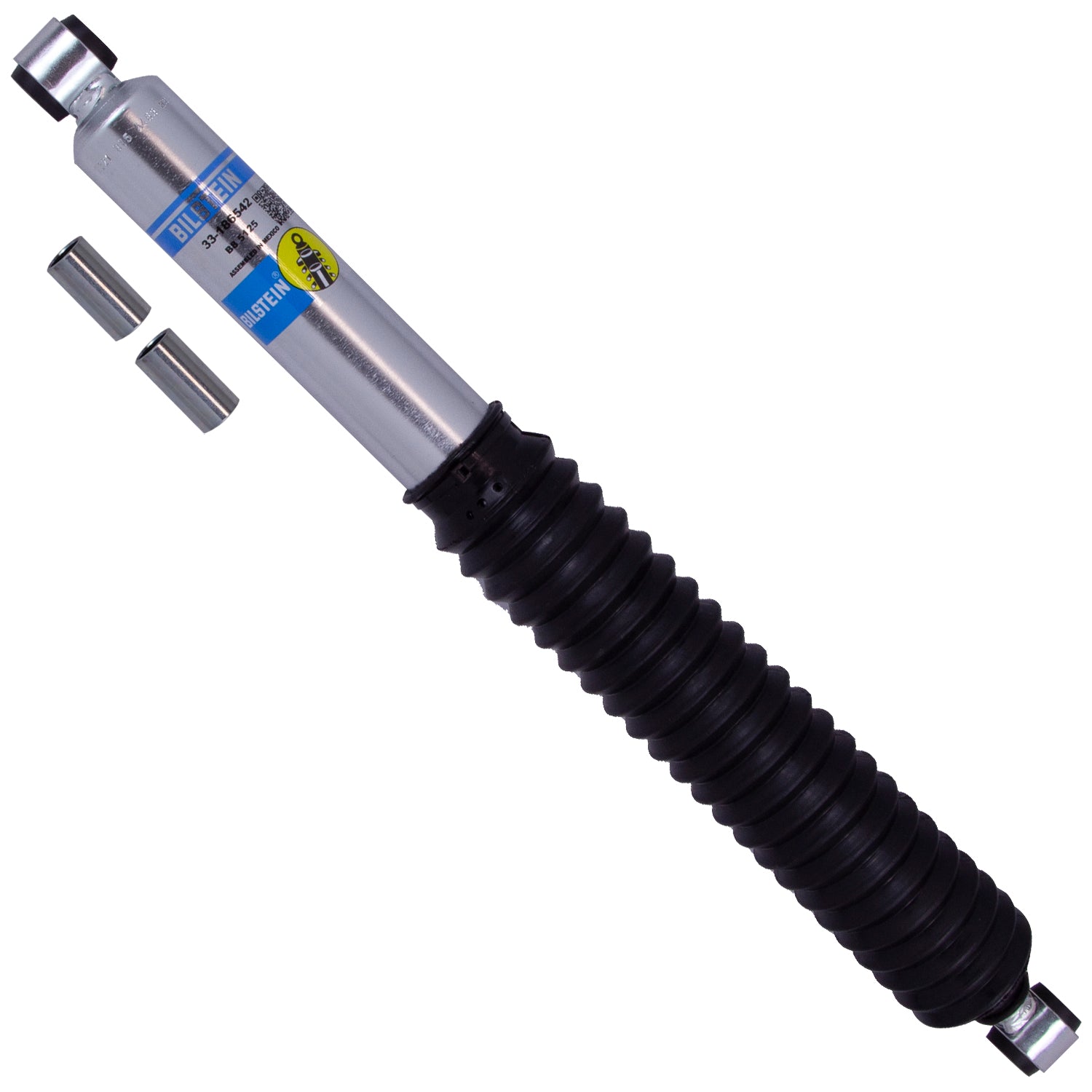

The Bilstein B8 shocks are built for a 1966-1968 Jeep CJ5A (CJ) that has been lifted or leveled, valved for the taller ride height rather than fighting it.
Bilstein supplies suspension as original equipment to manufacturers around the world, and applies the same engineering here. It fits the factory mounting points exactly and is covered by a limited lifetime warranty.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Part Number | 33-186542 |
| Part Name | Shock Absorber |
| UPC | 651860626659 |
| Vehicle | 1966-1968 Jeep CJ5A |
| Chassis Code | CJ |
| Drivetrain | 4WD |
| Adjustable Damping | Non-Adjustable |
| Body Design | Smooth Body (Non-Coilover) |
| Boot Included | Black Bellows |
| Collapsed Length | 15.12 in. (384mm) |
| Compression @ 0.52m/s | 620 |
| Extended Length | 24.34 in. (618.2mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 5/8 in. |
| Mount Type | Eye-to-Eye |
| Piston Diameter | 46mm |
| Vehicle Placement | Front and Rear |
| Rebound @ 0.52m/s | 2495 |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5125 |
| Shaft Diameter | 14mm |
| Spring Seat Included | No |
| Stroke/Travel Length | 9.22 in. (234.2mm) |
| Upper Mount Type | Eye 5/8 in. |
| Notes | Fits Vehicles With 2-4" Rear Lift |
