Product Details

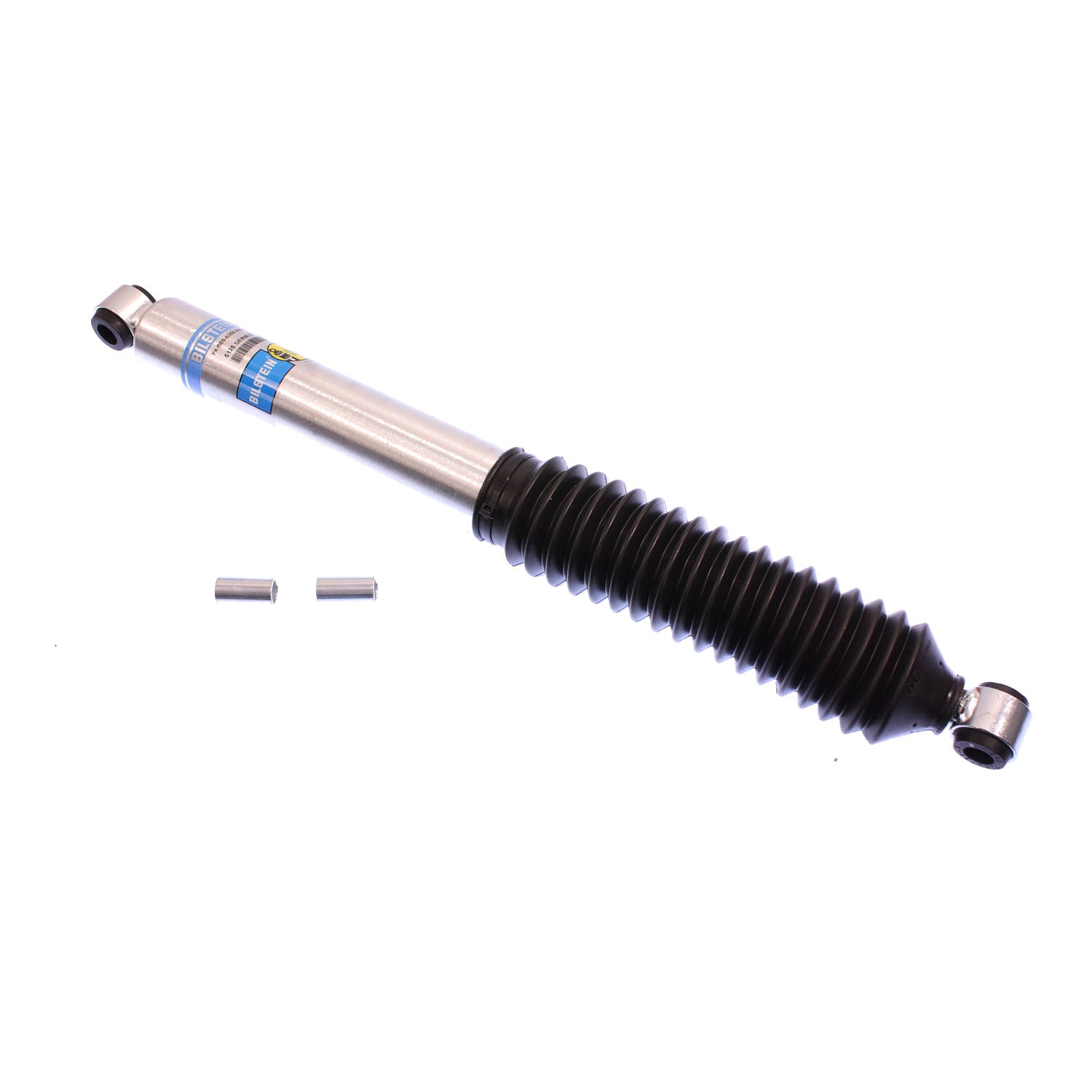

Bilstein B8 5125 Shock Absorbers to your 1966-1968 Jeep CJ5A (CJ) are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube Shock Absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 Shock Absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The Shock Absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 Shock Absorbers are the ideal choice for custom suspension builders.
Standard Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Part Number | 33-185606 |
| Part Name | Shock Absorber |
| UPC | 651860453774 |
| Vehicle | 1966-1968 Jeep CJ5A |
| Chassis Code | CJ |
| Adjustable Damping | Non-Adjustable |
| Body Design | Smooth Body (Non-Coilover) |
| Boot Included | Black Bellows |
| Collapsed Length | 14.13 in. |
| Collapsed Length | 359mm |
| Compression @ 0.52m/s | 620 |
| Extended Length | 22.57 in. |
| Extended Length | 573.2mm |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 5/8 in. |
| Mount Type | Eye-to-Eye |
| Piston Diameter | 46mm |
| Vehicle Placement | Front |
| Rebound @ 0.52m/s | 2495 |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5125 |
| Shaft Diameter | 14mm |
| Spring Seat Included | No |
| Stroke/Travel Length | 8.43 in. |
| Stroke/Travel Length | 214.1mm |
| Upper Mount Type | Eye 5/8 in. |
| Notes | Fits Vehicles With 0-2" Rear Lift |
Vehicle Fitment
- 1966 Jeep CJ5A (CJ)
- 1967 Jeep CJ5A (CJ)
- 1968 Jeep CJ5A (CJ)
