Product Details

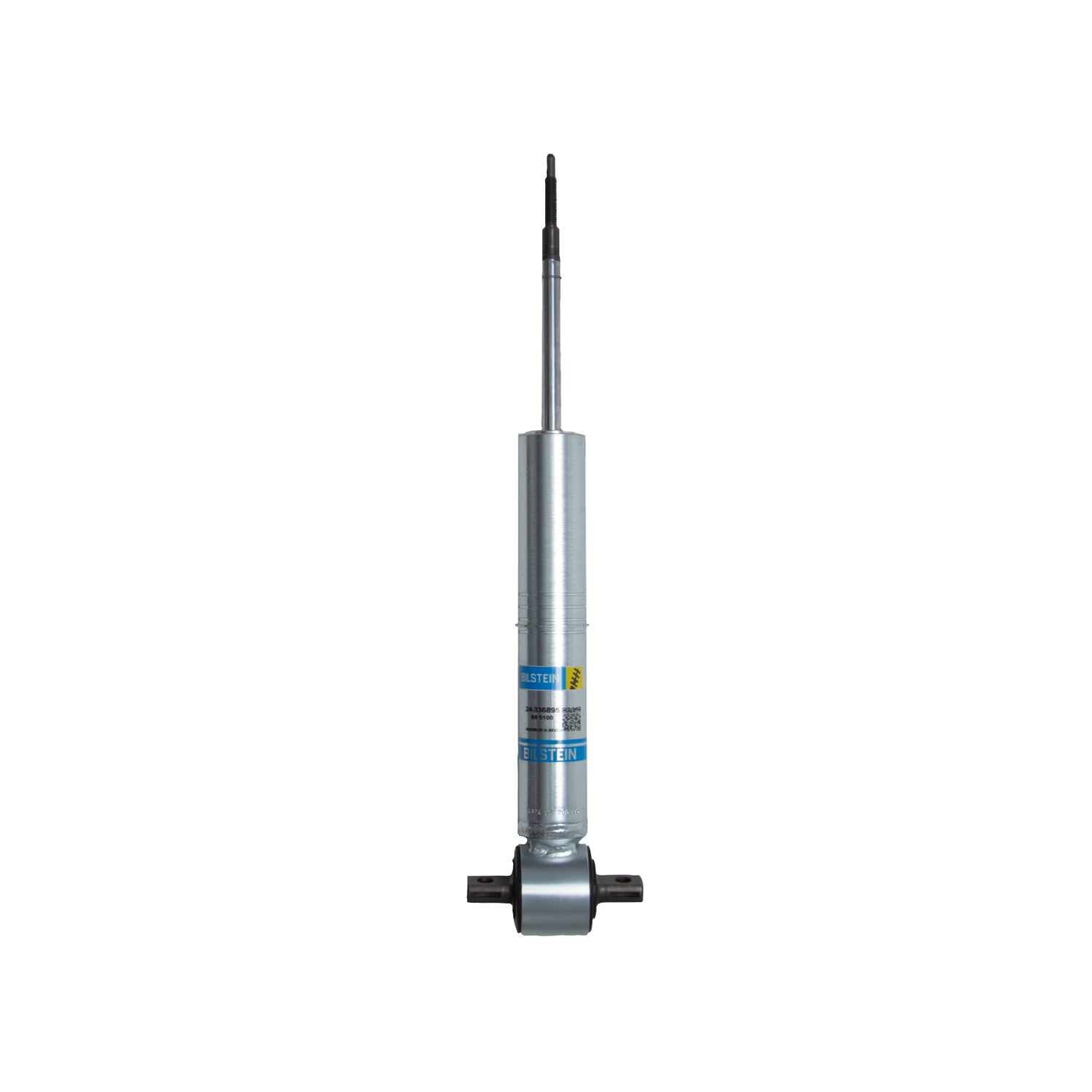

The Bilstein B8 shocks are built for a 2014-2019 GMC Sierra 1500 (K2XX) that has been lifted or leveled, valved for the taller ride height rather than fighting it.
Bilstein invented the monotube gas damper and has been building suspension in Germany since 1954. Every unit is built to the same standard the company supplies to the manufacturers themselves, and it is backed by a limited lifetime warranty.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
Specifications
| Part Number | 24-336895 |
| Part Name | Shock Absorber |
| UPC | 651860939612 |
| Vehicle | 2014-2019 GMC Sierra 1500 |
| Chassis Code | K2XX |
| Drivetrain | RWD/4WD |
| Adjustable Damping | Non-Adjustable |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Boot Included | No |
| Collapsed Length | 15 in. (381mm) |
| Extended Length | 18.89 in. (479.7mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Bar Pin |
| Piston Diameter | 46mm |
| Vehicle Placement | Front |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 (Ride Height Adjustable) |
| Shaft Diameter | 14mm |

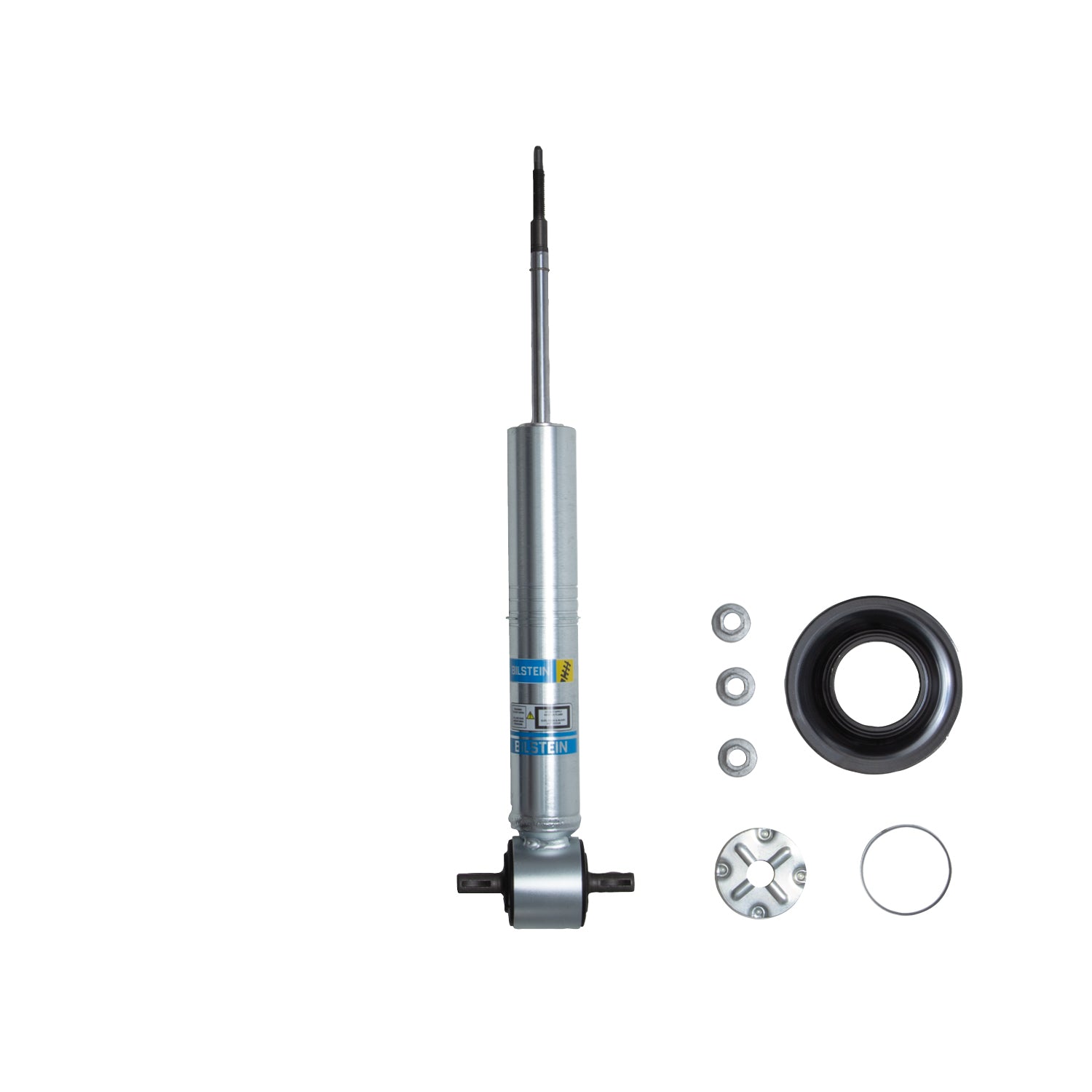

| Spring Seat Included | Yes |
| Stroke/Travel Length | 3.89 in. (98.8mm) |
| Upper Mount Type | Stem |
| Notes | Provides 0-1.85" Front Lift; Provides 6" Front Lift when utilizing stock length shock with lift spacer |
