Product Details

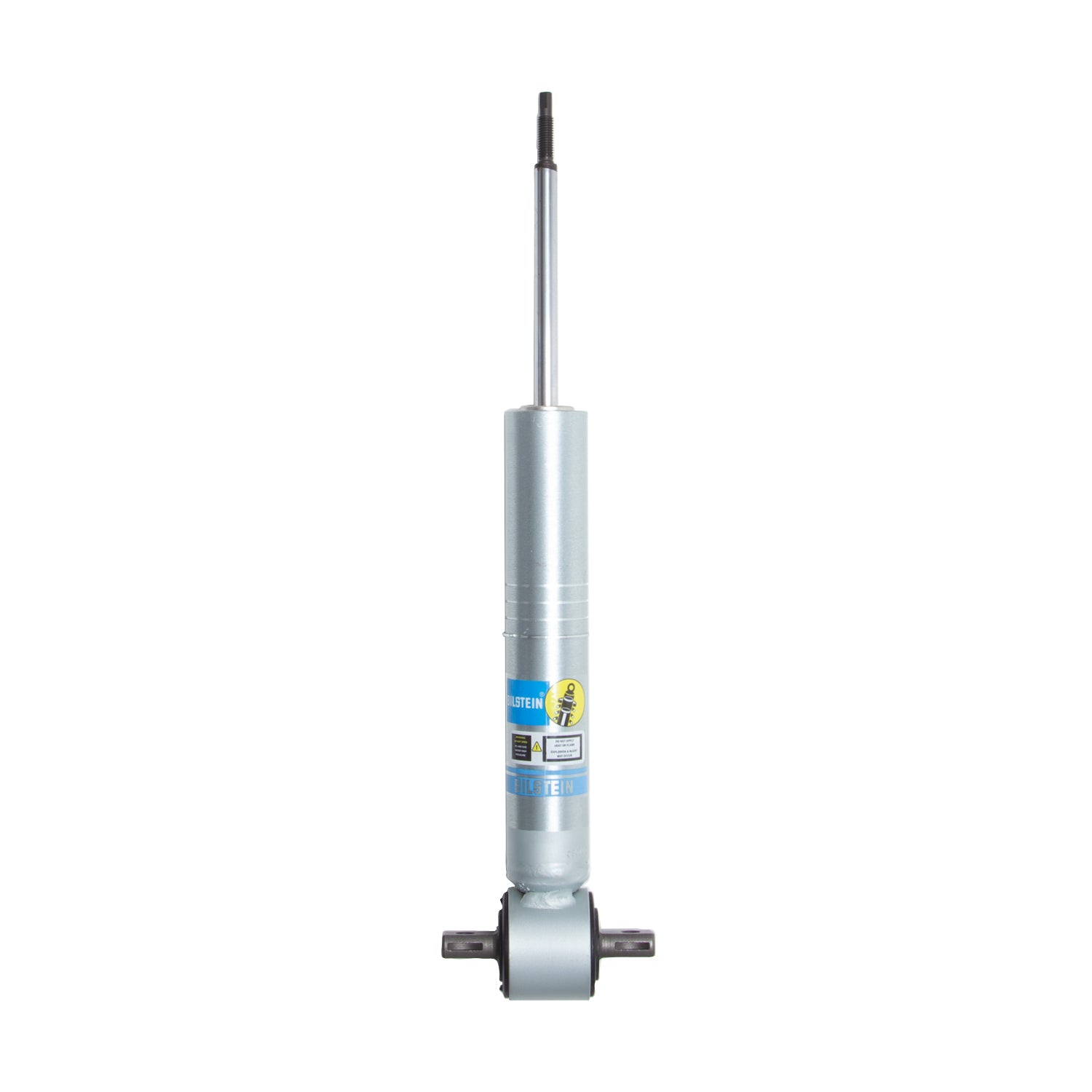

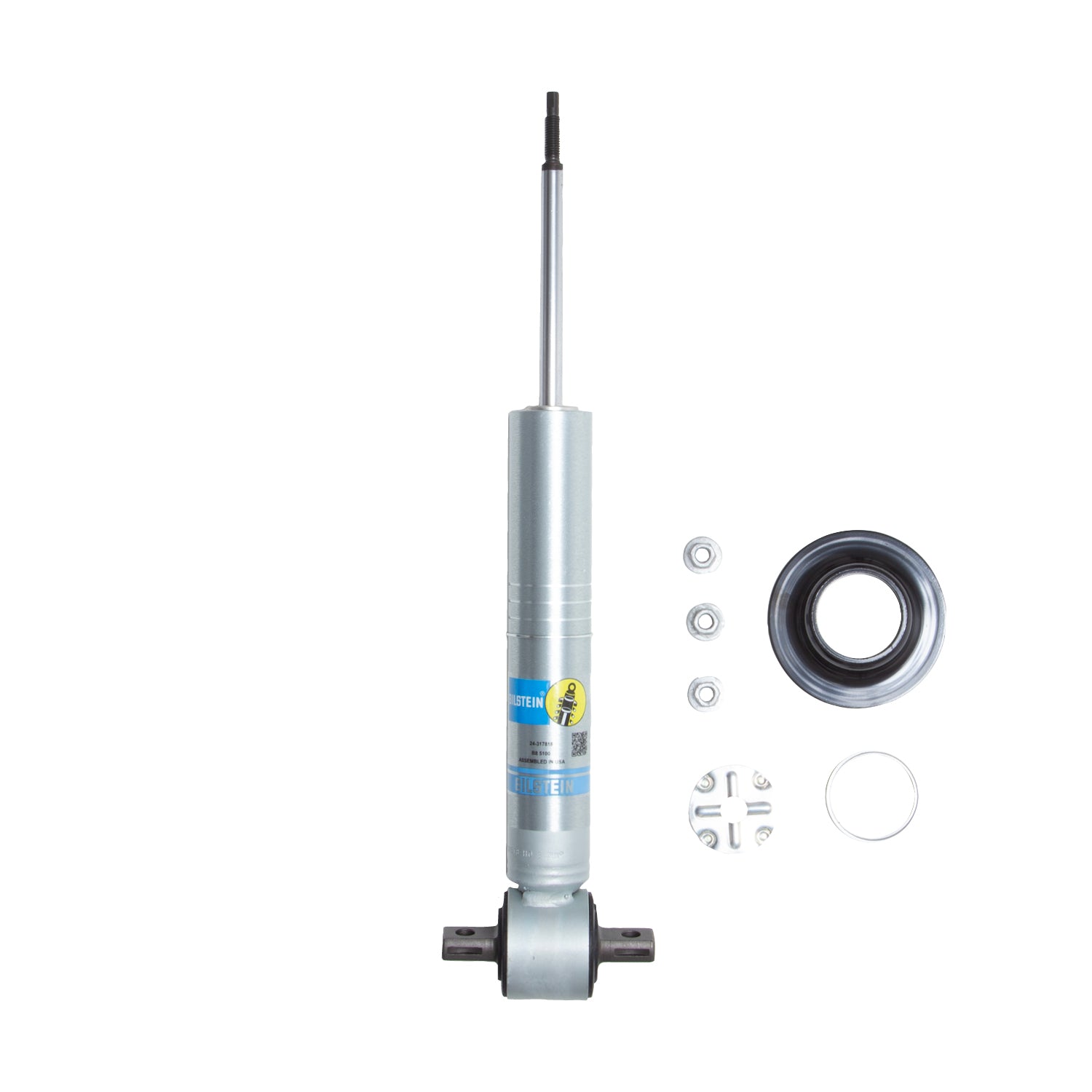

The Bilstein B8 shocks are built for a 2007-2014 GMC Yukon XL 1500 (GMT900) that has been lifted or leveled, valved for the taller ride height rather than fighting it.
Bilstein has built suspension in Germany since 1954, and supplies the same engineering to manufacturers as original equipment. The build quality is the reason these outlast what they replace, and they are covered by a limited lifetime warranty.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
Specifications
| Part Number | 24-317818 |
| Part Name | Shock Absorber |
| UPC | 651860908892 |
| Vehicle | 2007-2014 GMC Yukon XL 1500 |
| Chassis Code | GMT900 |
| Drivetrain | RWD/4WD |
| Adjustable Damping | Non-Adjustable |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Boot Included | No |
| Collapsed Length | 12.95 in. (329mm) |
| Extended Length | 18.5 in. (470mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Bar Pin |
| Piston Diameter | 46mm |
| Vehicle Placement | Front |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 (Ride Height Adjustable) |
| Shaft Diameter | 14mm |
| Spring Seat Included | Yes |
| Stroke/Travel Length | 5.55 in. (141mm) |
| Upper Mount Type | Stem |
| Notes | Provides 0-1.75" Front Lift; Provides 6" Front Lift when utilizing stock length shock with lift spacer; Without Electronic Suspension |
