Product Details

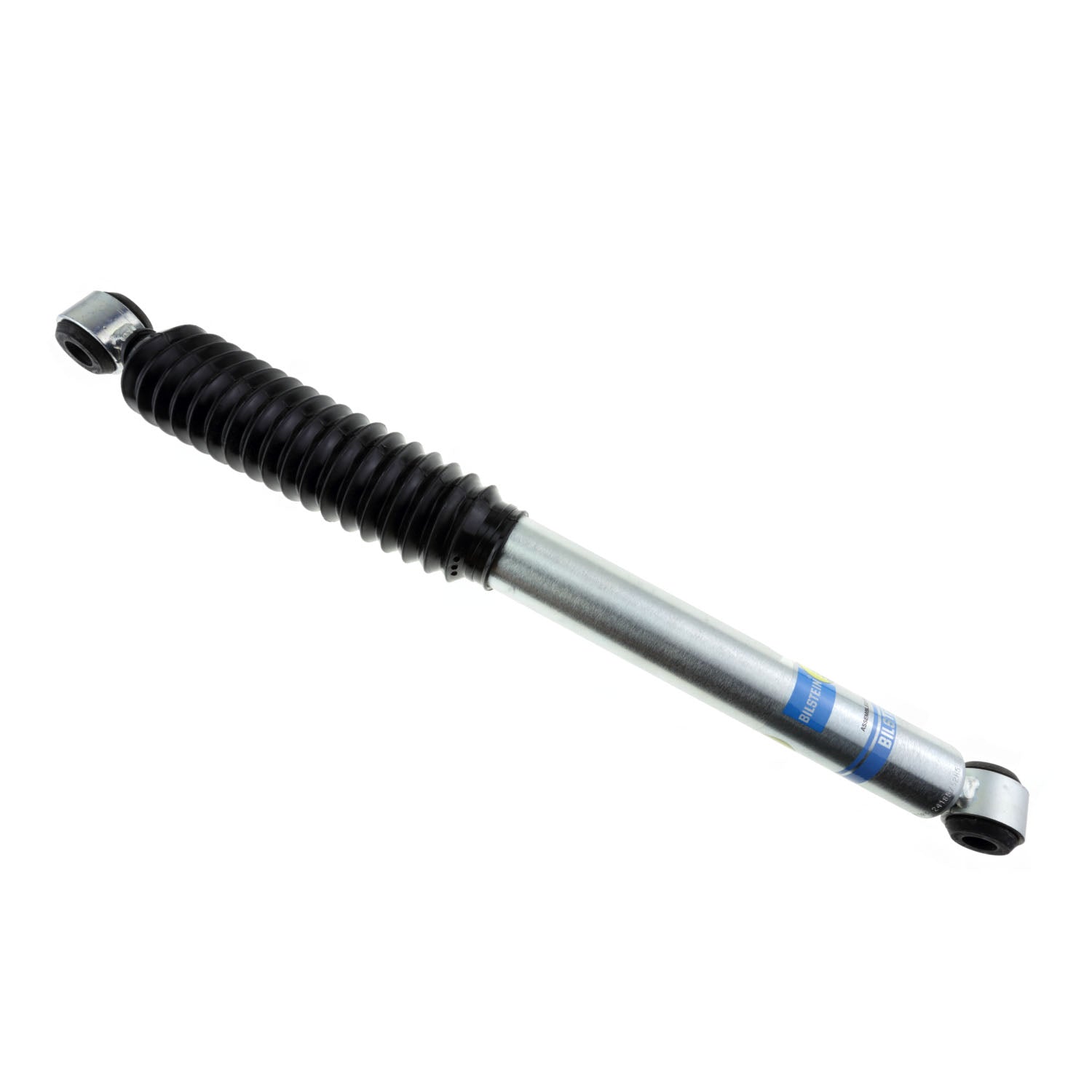

The Bilstein B8 shocks are built for a 1986-1995 Toyota Pickup (N50/N60/N80) that has been lifted or leveled, valved for the taller ride height rather than fighting it.
Built in Germany to original-equipment standards and finished to survive road salt and grit, this is a bolt-in part with no modification required. Backed by Bilstein's limited lifetime warranty.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Part Number | 24-185752 |
| Part Name | Shock Absorber |
| UPC | 651860453880 |
| Vehicle | 1986-1995 Toyota Pickup |
| Chassis Code | N50/N60/N80 |
| Drivetrain | 4WD |
| Adjustable Damping | Non-Adjustable |
| Body Design | Smooth Body (Non-Coilover) |
| Boot Included | Black Bellows |
| Collapsed Length | 16 in. (406.5mm) |
| Extended Length | 25.63 in. (651mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 19mm |
| Piston Diameter | 46mm |
| Vehicle Placement | Rear |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 |
| Shaft Diameter | 14mm |
| Spring Seat Included | No |
| Stroke/Travel Length | 9.63 in. (244.6mm) |
| Upper Mount Type | Eye 19mm |
| Notes | Fits Vehicles With 3-4" Rear Lift |
