Product Details

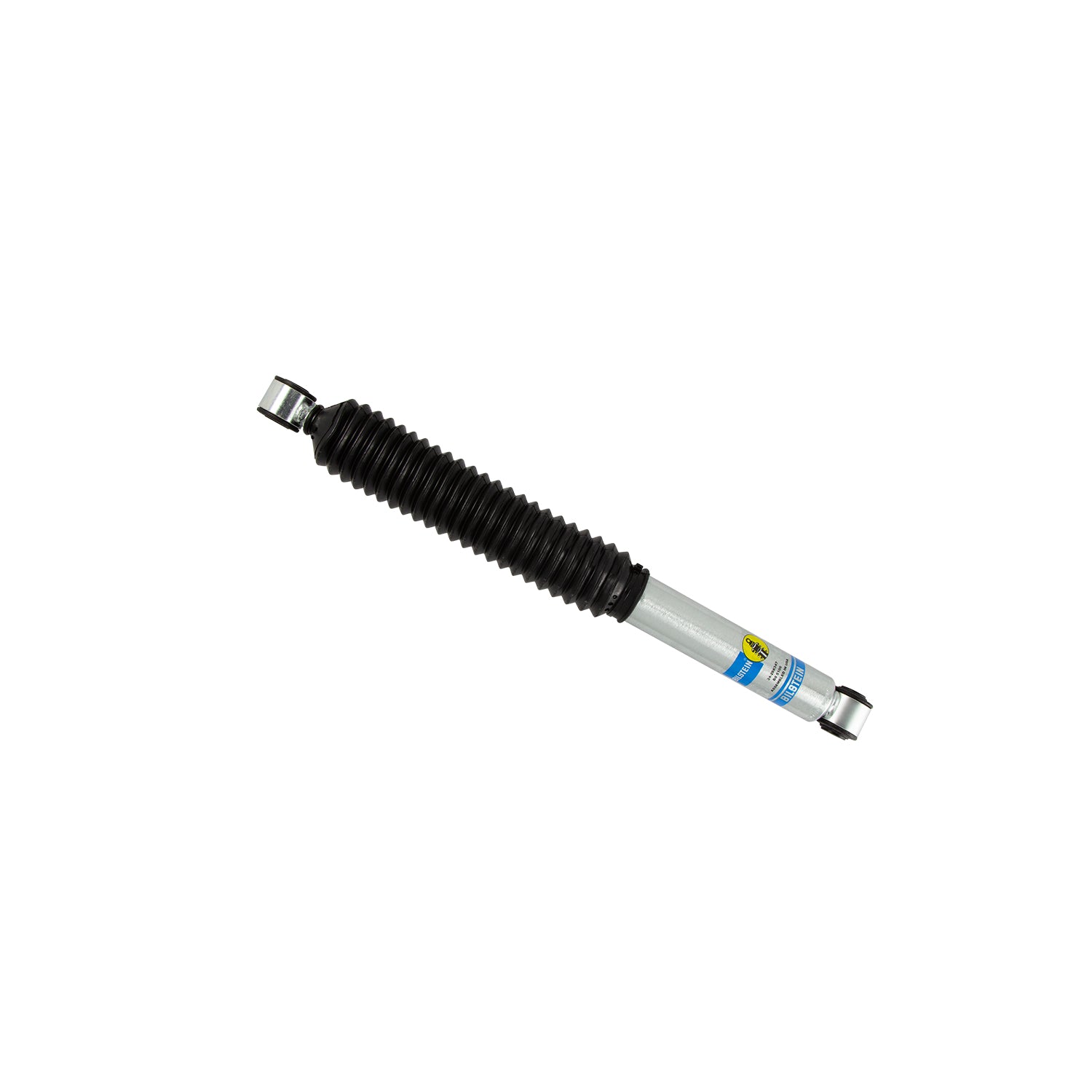

Lifting or leveling a 2017-2024 Nissan TITAN (A61) changes what the dampers have to do. The Bilstein B8 shocks are built for that taller stance and stay composed on rough ground.
Bilstein invented the monotube gas damper and has been building suspension in Germany since 1954. Every unit is built to the same standard the company supplies to the manufacturers themselves, and it is backed by a limited lifetime warranty.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Part Number | 24-288347 |
| Part Name | Shock Absorber |
| UPC | 651860831077 |
| Vehicle | 2017-2024 Nissan TITAN |
| Chassis Code | A61 |
| Drivetrain | 4WD |
| Adjustable Damping | Non-Adjustable |
| Body Design | Smooth Body (Non-Coilover) |
| Boot Included | Black Bellows |
| Collapsed Length | 15.94 in. (405mm) |
| Extended Length | 24.61 in. (625.2mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14mm |
| Piston Diameter | 46mm |
| Vehicle Placement | Rear |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 |
| Shaft Diameter | 14mm |
| Spring Seat Included | No |
| Stroke/Travel Length | 8.67 in. (220.2mm) |
| Upper Mount Type | Eye 14mm |
| Notes | Fits Vehicles With 0-1" Rear Lift |
