Product Details

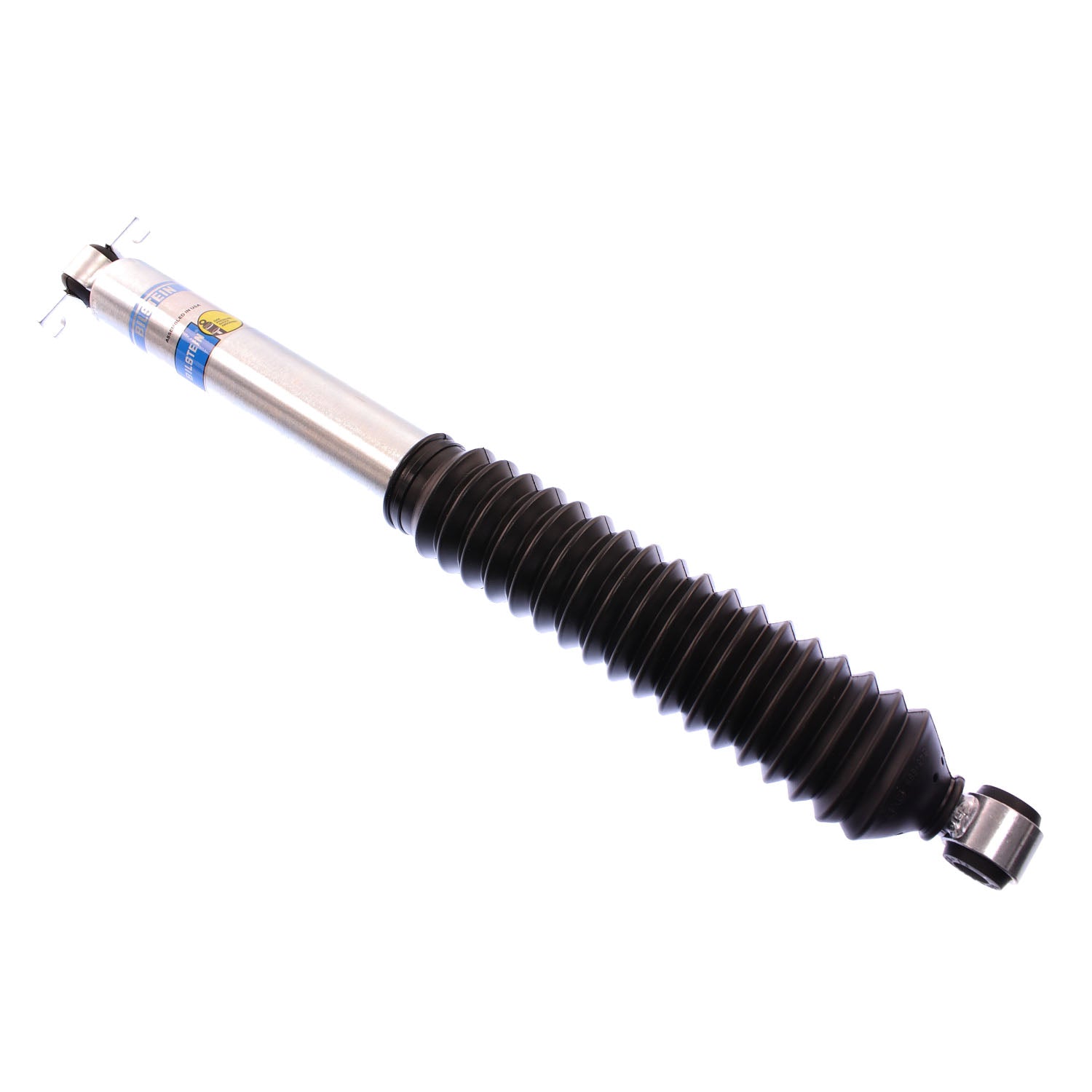

The Bilstein B8 shocks are built for a 1984-1990 Jeep Wagoneer (SJ) that has been lifted or leveled, valved for the taller ride height rather than fighting it.
This is a direct-fit part. It mounts in the original locations with the original hardware, so nothing needs modifying, and it carries Bilstein's limited lifetime warranty.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Part Number | 33-066868 |
| Part Name | Shock Absorber |
| UPC | 651860649641 |
| Vehicle | 1984-1990 Jeep Wagoneer |
| Chassis Code | SJ |
| Drivetrain | 4WD |
| Adjustable Damping | Non-Adjustable |
| Body Design | Smooth Body (Non-Coilover) |
| Boot Included | Black Bellows |
| Collapsed Length | 14.88 in. (378mm) |
| Extended Length | 23.84 in. (605.5mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 16mm |
| Piston Diameter | 46mm |
| Vehicle Placement | Rear |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 |
| Shaft Diameter | 14mm |
| Spring Seat Included | No |
| Stroke/Travel Length | 8.96 in. (227.6mm) |
| Upper Mount Type | Bar Pin |
| Notes | Fits Vehicles With 3.5-4" Rear Lift |
