Product Details

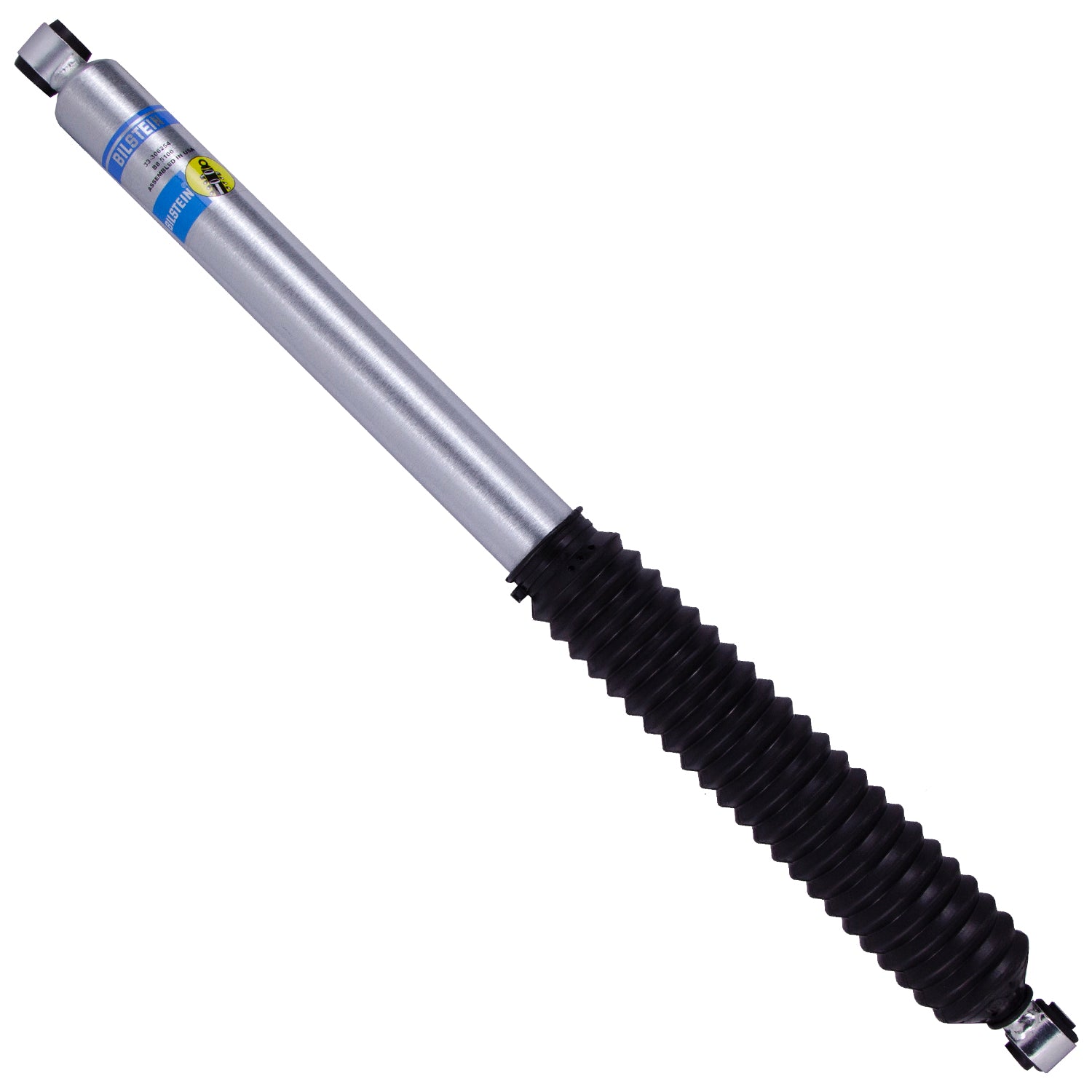

The Bilstein B8 shocks are built for a 2017-2026 Ford F-350 Super Duty (P558) that has been lifted or leveled, valved for the taller ride height rather than fighting it.
Inside is Bilstein's monotube design, with the gas and oil separated by a floating piston. That keeps damping consistent when the road turns rough and the unit gets hot, where a lesser damper would go soft.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Part Number | 33-306254 |
| Part Name | Shock Absorber |
| UPC | 651860853581 |
| Vehicle | 2017-2026 Ford F-350 Super Duty |
| Chassis Code | P558 |
| Drivetrain | 4WD |
| Adjustable Damping | Non-Adjustable |
| Body Design | Smooth Body (Non-Coilover) |
| Boot Included | Black Bellows |
| Collapsed Length | 20.08 in. (510mm) |
| Extended Length | 31.6 in. (802.7mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.1mm |
| Piston Diameter | 46mm |
| Vehicle Placement | Rear |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 |
| Shaft Diameter | 14mm |
| Spring Seat Included | No |
| Stroke/Travel Length | 11.52 in. (292.6mm) |
| Upper Mount Type | Eye 16mm |
| Notes | Fits Vehicles With 1.5-3" Rear Lift |
