Product Details

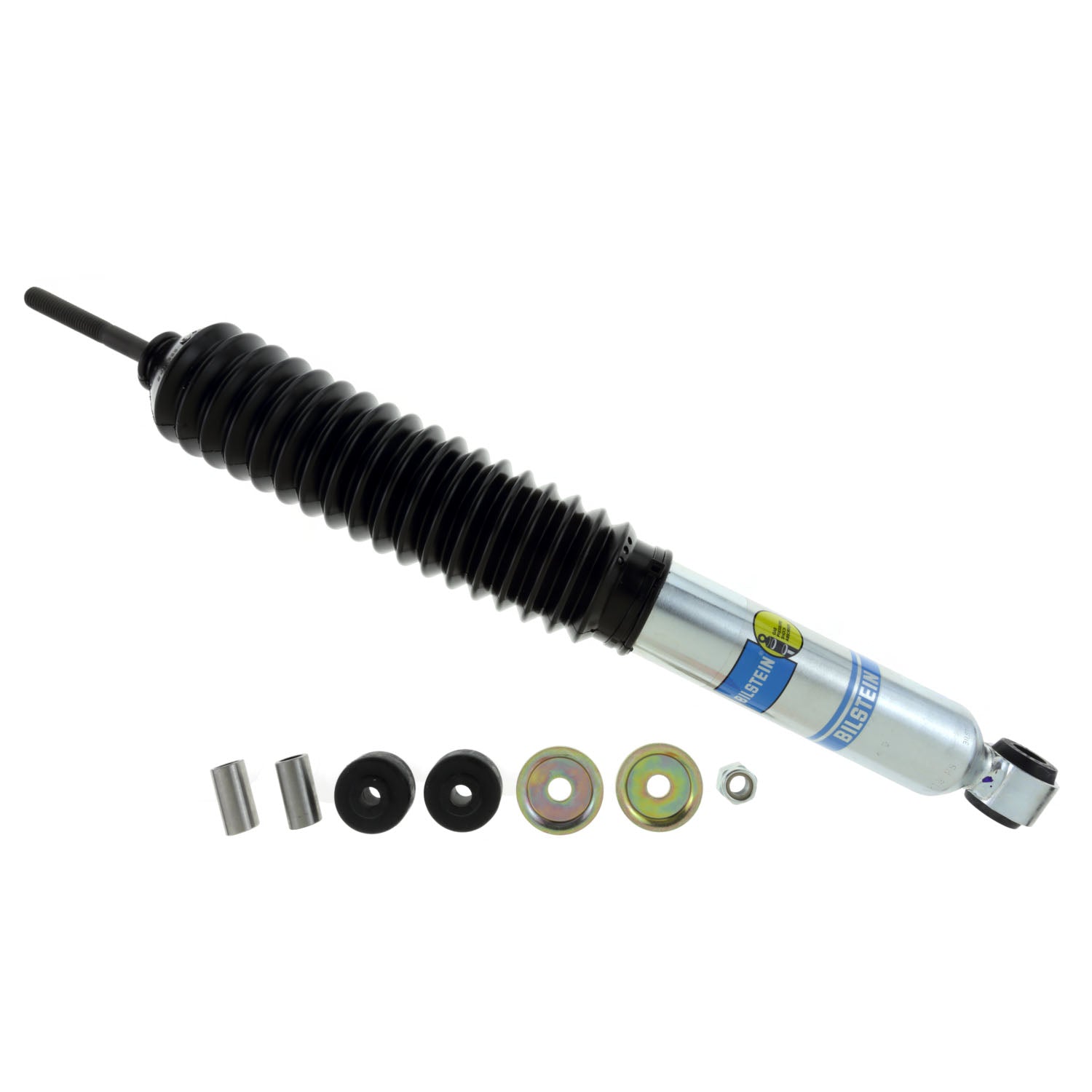

Lifting or leveling a 1991-1994 Ford Explorer (UN46) changes what the dampers have to do. The Bilstein B8 shocks are built for that taller stance and stay composed on rough ground.
Built in Germany to original-equipment standards and finished to survive road salt and grit, this is a bolt-in part with no modification required. Backed by Bilstein's limited lifetime warranty.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Part Number | 24-185493 |
| Part Name | Shock Absorber |
| UPC | 651860453583 |
| Vehicle | 1991-1994 Ford Explorer |
| Chassis Code | UN46 |
| Drivetrain | RWD/4WD |
| Adjustable Damping | Non-Adjustable |
| Body Design | Smooth Body (Non-Coilover) |
| Boot Included | Black Bellows |
| Collapsed Length | 12.17 in. (309mm) |
| Extended Length | 18.98 in. (482.2mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 16mm |
| Piston Diameter | 46mm |
| Vehicle Placement | Front |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 |
| Shaft Diameter | 14mm |
| Spring Seat Included | No |
| Stroke/Travel Length | 6.81 in. (173mm) |
| Upper Mount Type | Stem |
| Notes | Fits Vehicles With 0-1.5" Front Lift |
