Product Details

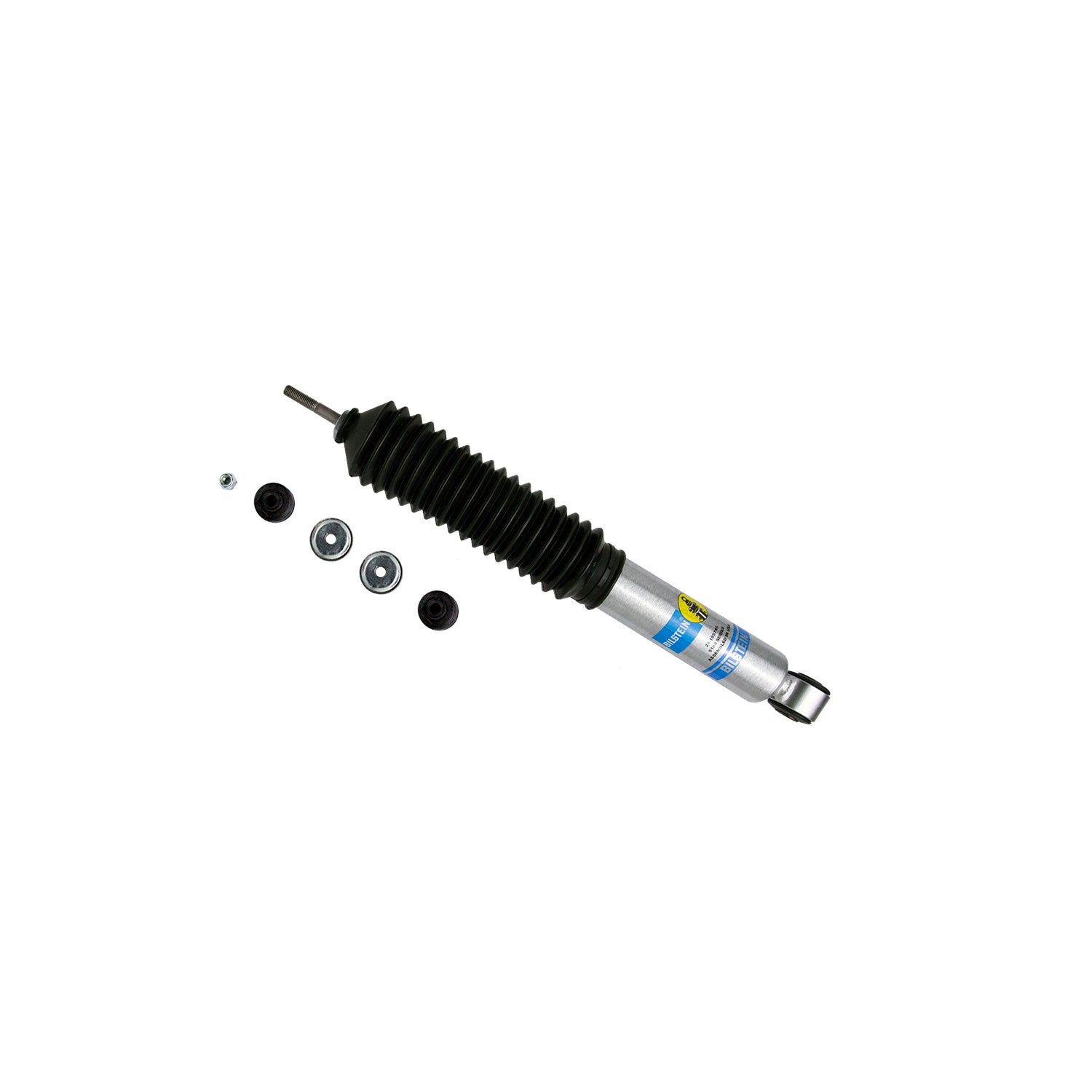

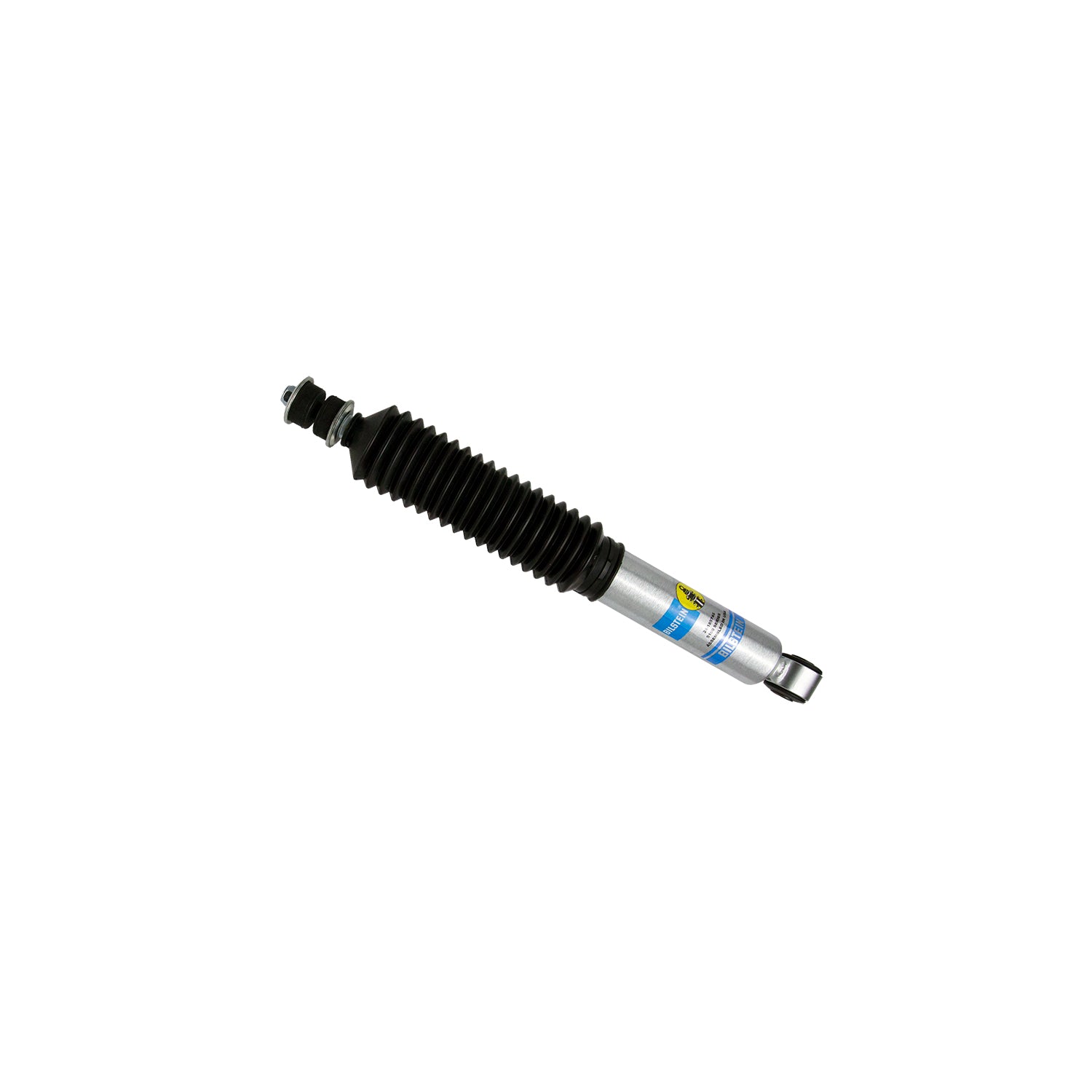

Lifting or leveling a 1986-1995 Toyota 4Runner (N60/N130) changes what the dampers have to do. The Bilstein B8 shocks are built for that taller stance and stay composed on rough ground.
Inside is Bilstein's monotube design, with the gas and oil separated by a floating piston. That keeps damping consistent when the road turns rough and the unit gets hot, where a lesser damper would go soft.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Part Number | 24-185745 |
| Part Name | Shock Absorber |
| UPC | 651860453873 |
| Vehicle | 1986-1995 Toyota 4Runner |
| Chassis Code | N60/N130 |
| Drivetrain | 4WD |
| Adjustable Damping | Non-Adjustable |
| Body Design | Smooth Body (Non-Coilover) |
| Boot Included | Black Bellows |
| Collapsed Length | 11.67 in. (296.5mm) |
| Extended Length | 17.95 in. (456mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 16mm |
| Piston Diameter | 46mm |
| Vehicle Placement | Front |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 |
| Shaft Diameter | 14mm |
| Spring Seat Included | No |
| Stroke/Travel Length | 6.28 in. (159.5mm) |
| Upper Mount Type | Stem |
| Notes | Fits Vehicles With 3-4" Front Lift |
