Product Details

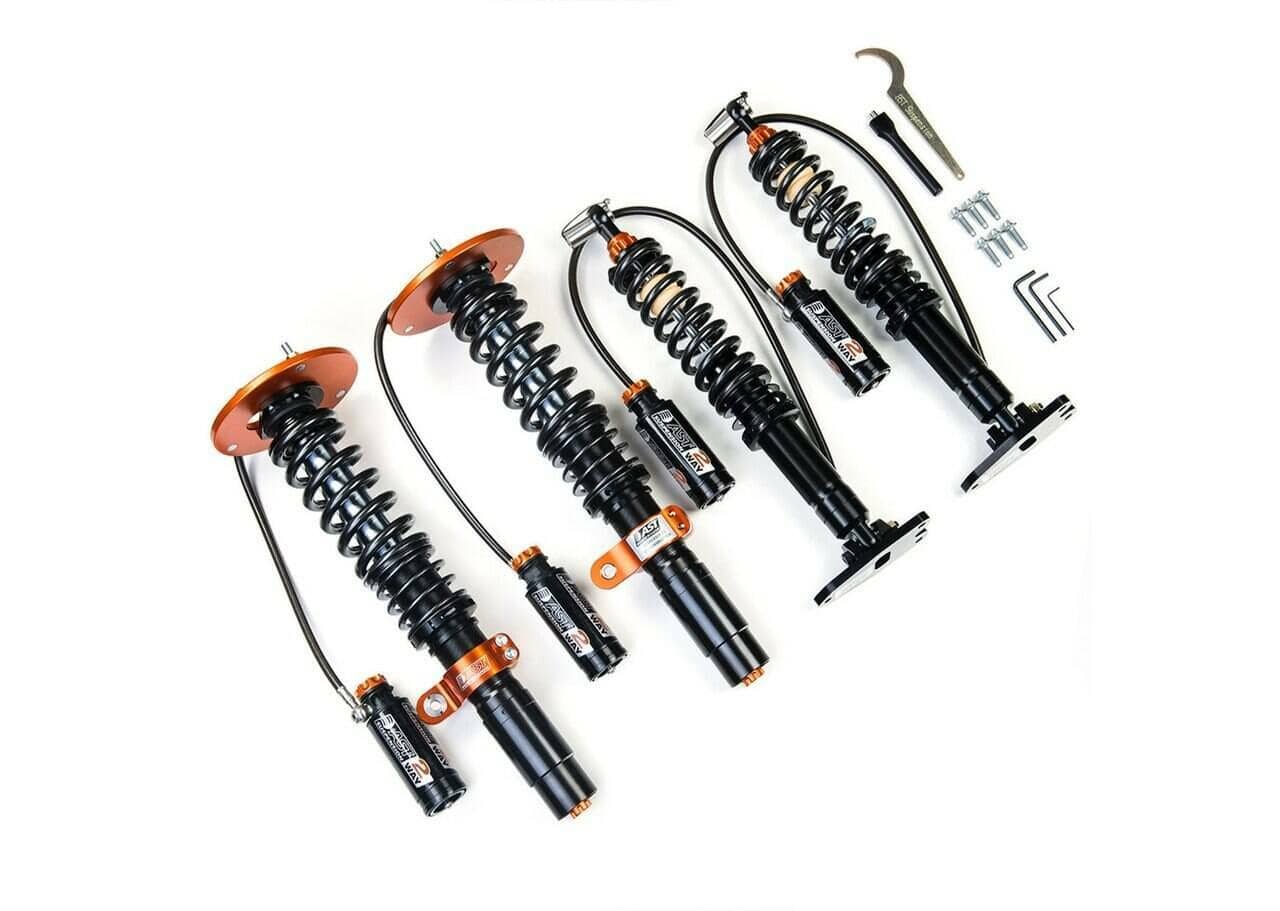

The 5200 Series for the 1994-1997 Mazda MX-5 Miata 1.8 16V RWD (NA/NB) are 2-way adjustable shock absorbers which are based upon competition 3-way adjustable shock absorbers. The 5200 shock absorbers are adjustable in compression and rebound.
The design of the compression adjuster is an evolution of the compression adjuster we provided for the American Grand-Am series for the last few years. The 5200 shock absorbers were designed to achieve a quick and easy set up, allowing separate adjustment of compression and rebound.
The 5200 Series AST uses an external canister. Throughout testing and competitions, the 5200 has been praised for its performance and capabilities, surpassing other major, more expensive brands and setting a new standard of 2 way damper. Its no surprise that the 5200 is fast becoming a favorite damper amongst race teams and track day enthusiasts world wide.
Standard Features
- High end, track ready suspension that is totally streetable.
- Fully upgradeable to 5300 spec.
- Rebound and Compression Adjustable (Doubles), with a remote reservoir.
- Remote reservoirs allow additional travel and heat dissipation.
- 44.5mm diameter shaft struts are inverted and offer exceptional strength, which in turn reduces geometry change under corner and braking monoevers.
- Aluminum cylinder, threaded body shocks, factory mounting style.
- New low friction seal on all AST dampers.
- Spherical lower eye shock mounts.
- Reservoir with hose or piggyback (piggyback examples: 2008 STI; BMW E36 rears).
- Spherical upper shock mount assemblies.
- Synthetic hydraulic fluid.
- Optional DLC (diamond like carbon) coated shafts.
- Optional DDP (double digressive piston).
- Double Digressive Pistons are recommended for use on the non-driven wheels.
- 4WD/FWD vehicles: DD pistons for both rear axle struts/shocks.
- RWD vehicles: DD pistons for both front axle struts/shocks.
- Fully service and rebuildable.
- Revalvable for specific characteristics.
Specifications
| Part Number | RIV-M1206S |
| Part Name | 5200 Series Coilovers |
| Vehicle | 1994-1997 Mazda MX-5 Miata 1.8 16V RWD |
| Chassis Code | NA/NB |
| Ride-Height Adjustable | Yes |
| Damping Adjustment | 2-Way |
| Adjustable Droplinks Available - Front | No |
| Adjustable Droplinks Available - Rear | No |
| Adjustable Droplinks Required - Front | No |
| Adjustable Droplinks Required - Rear | No |
| DDP Pistons Available | Yes |
| DDP Pistons Included | No |
| DLC Coated Shafts Available | Yes |
| DLC Coated Shafts Included | No |
| QDC Included | No |
| Ratio - Front | 50% |
| Ratio - Rear | 50% |
| Top Mounts - Front | Included |
| Top Mounts - Rear | Included |
| Strut/Shock Type - Rear | Double Wishbone Strut |
| Spring Kit Include | Yes |
| Strut/Shock Type - Front | Double Wishbone Strut |
| Quantity | Full Set (Front & Rear) |
Vehicle Fitment
- 1994 Mazda MX-5 Miata 1.8 16V RWD (NA/NB)
- 1995 Mazda MX-5 Miata 1.8 16V RWD (NA/NB)
- 1996 Mazda MX-5 Miata 1.8 16V RWD (NA/NB)
- 1997 Mazda MX-5 Miata 1.8 16V RWD (NA/NB)
