Product Details

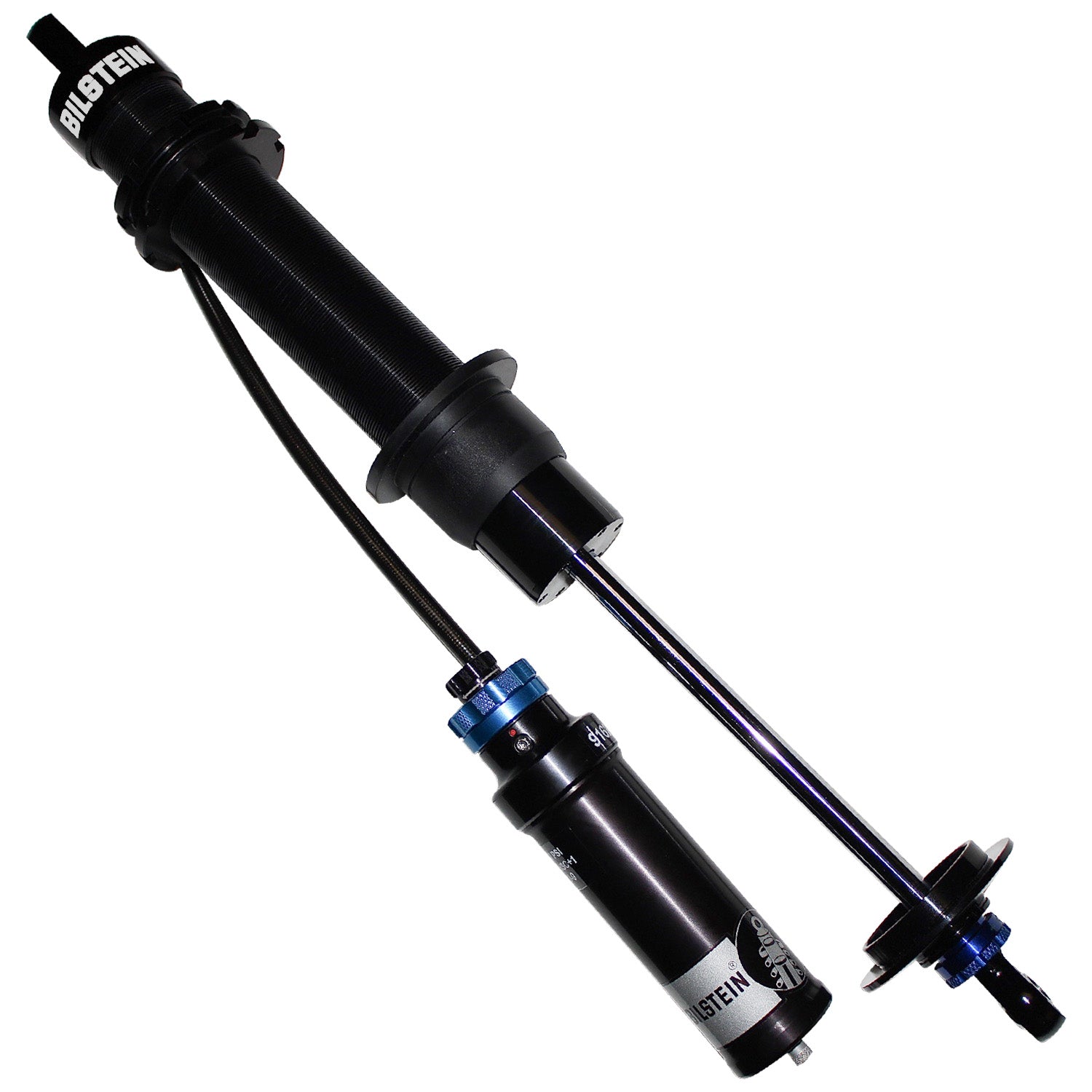

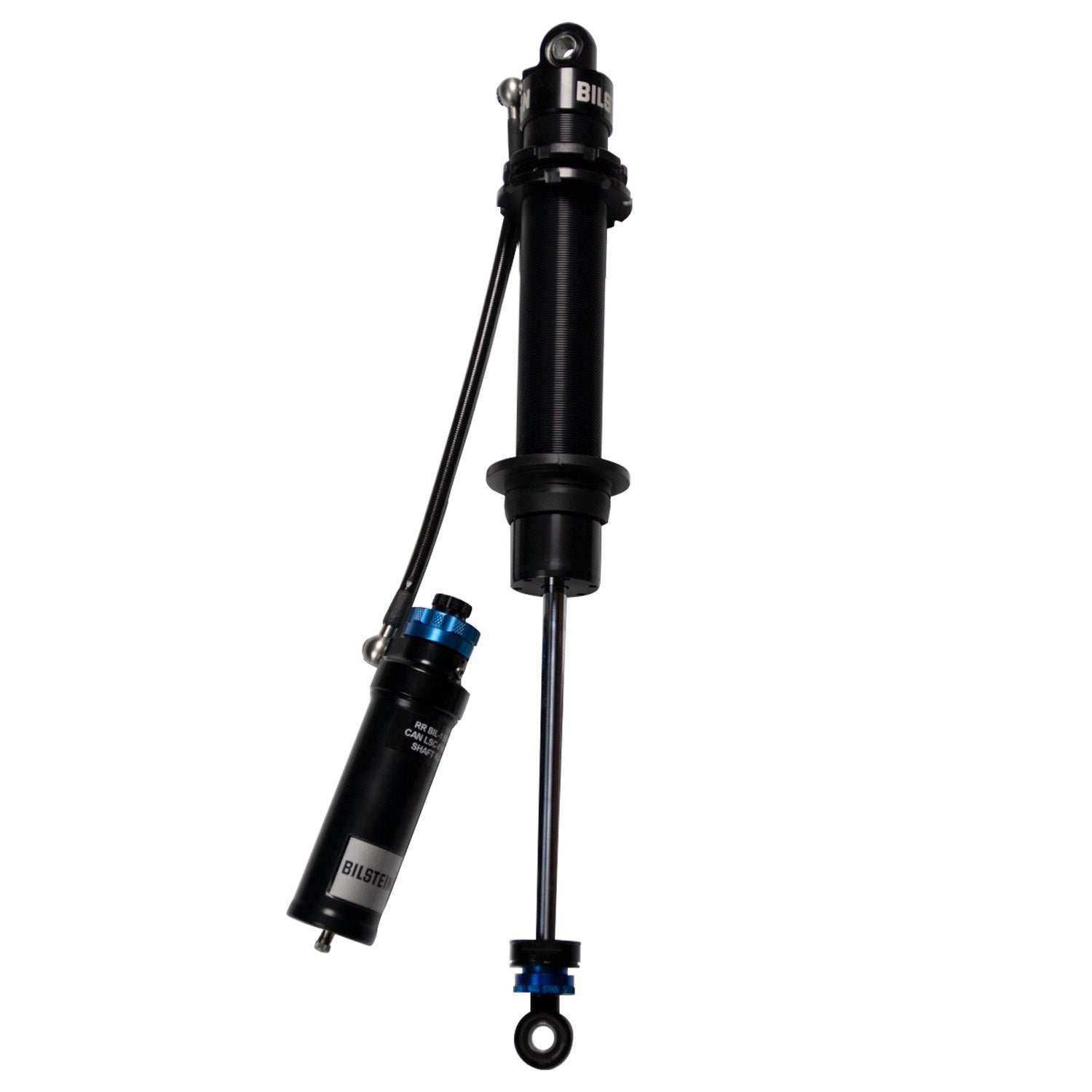

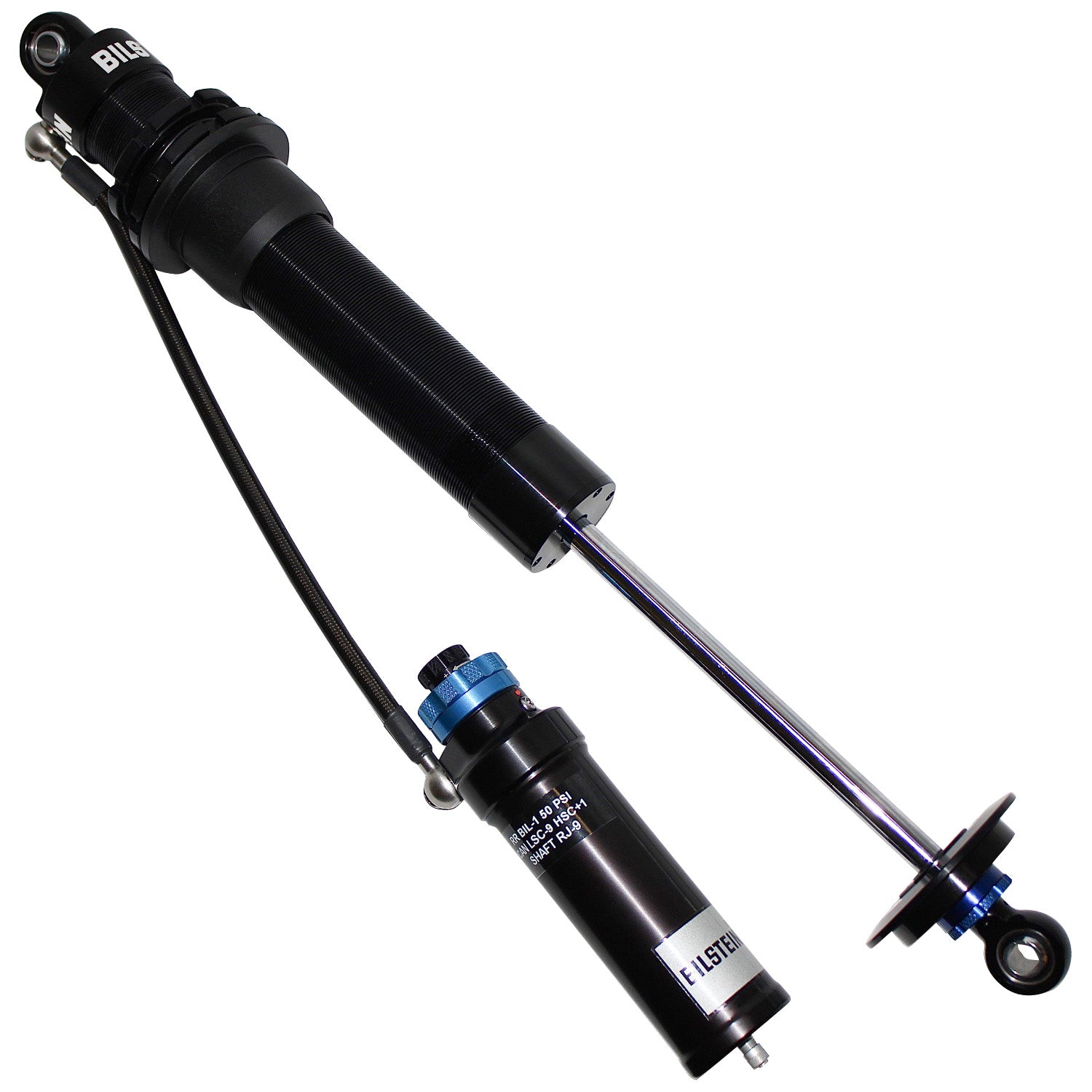

The Bilstein AS2-R Series shock absorber is sold for custom and motorsport builds. There is no vehicle lookup here: you select on dimension, mounting, and the damping you want.
Bilstein invented the monotube gas damper and has built suspension in Germany since 1954. The same engineering goes into a universal part as into an OE contract, and it carries a limited lifetime warranty.
Features
- Championship-winning tuning options
- All dampers feature 46mm aluminum monotube designs for light weight and hard anodized for durability
- Low friction rod guides for minimum rod drag
Specifications
| Part Number | 33-311593 |
| Part Name | Shock Absorber |
| UPC | 651860872544 |
| Adjustable Damping | Triple Adjustable - Rebound and High and Low Speed Compression |
| Body Design | Threaded Body Screw Top (Coilover) |
| Body Material | Aluminum |
| Boot Included | No |
| Collapsed Length | 15.33 in. (389mm) |
| Extended Length | 23.18 in. (589mm) |
| Finish | Clear Anodized |
| Internal Design | Monotube |
| Lower Mount Type | 1/2 in. Heim |
| Piston Diameter | 46mm |
| Piston Type | Linear |
| Vehicle Placement | Rear Right |
| Segment | Motorsports |
| Series | AS2-R Series |
| Shaft Diameter | 14mm |
| Spring Hardware | B4-MKT-0001A00 |
| Spring Hardware 2 | E4-MSG-0096A00 |
| Spring Seat Included | Yes |
| Stroke/Travel Length | 7.85 in. (199.4mm) |
| Upper Mount Type | 1/2 in. Heim |
