Product Details

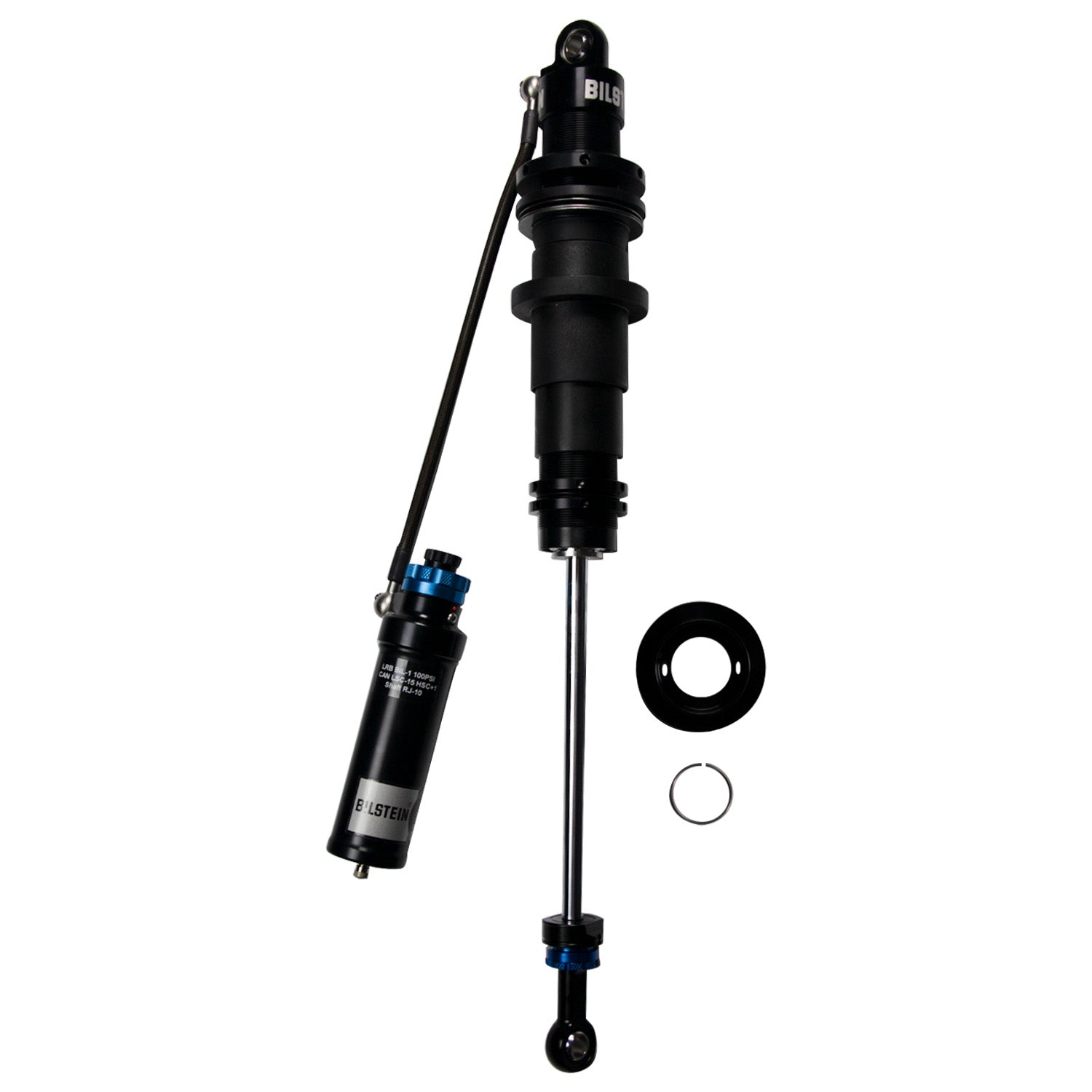

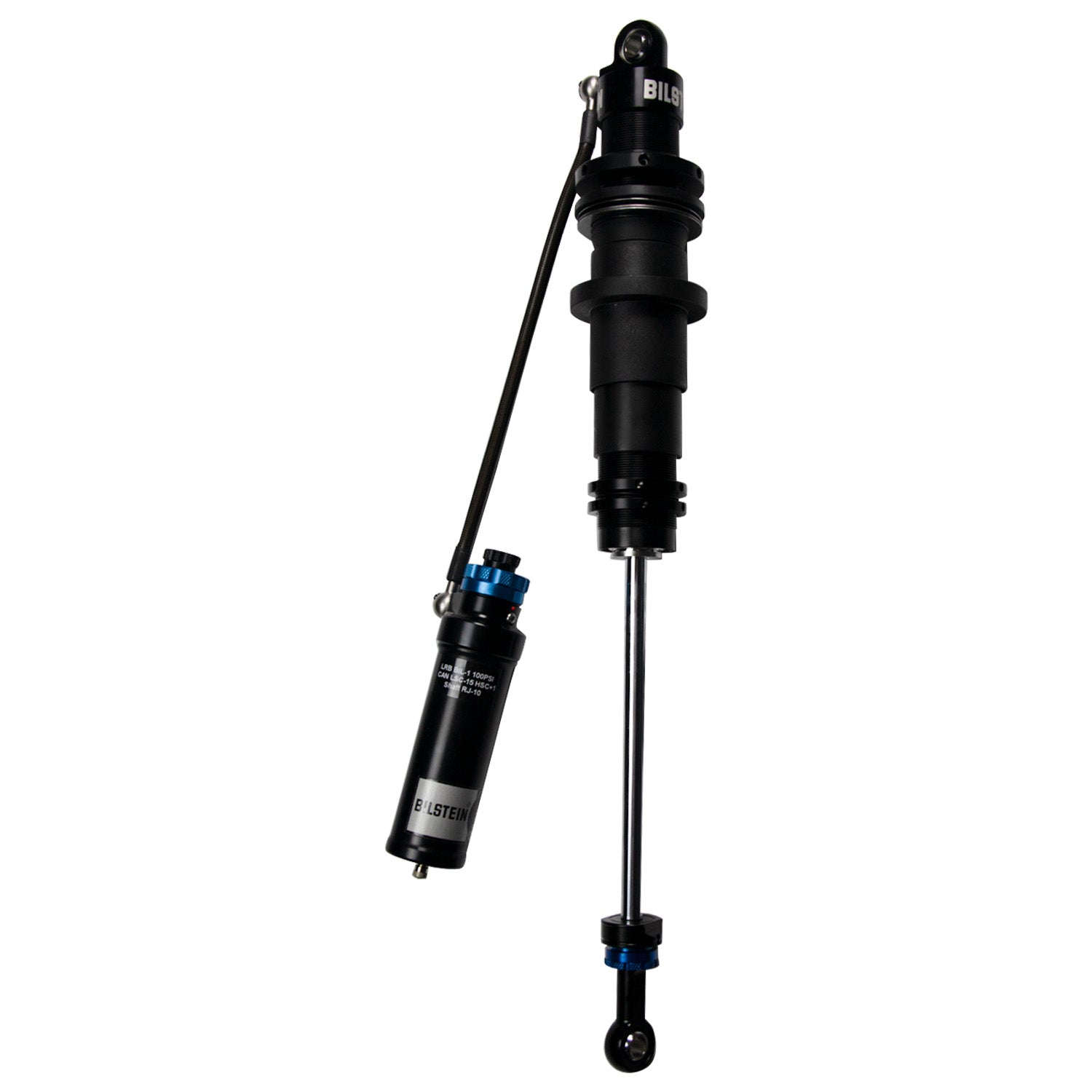

The Bilstein AS2-R Series shock absorber is specified by dimension rather than by vehicle, here at 17.33 in. collapsed. It is the part you reach for when the build does not match a catalog application and you need a damper sized to the car you actually have.
Inside is Bilstein's monotube design, gas and oil separated by a floating piston. That is what keeps the damping honest when the surface turns rough and the temperature climbs.
Features
- Championship-winning tuning options
- All dampers feature 46mm aluminum monotube designs for light weight and hard anodized for durability
- Low friction rod guides for minimum rod drag
Specifications
| Part Number | 33-330518 |
| Part Name | Shock Absorber |
| UPC | 651860903507 |
| Adjustable Damping | Triple Adjustable - Rebound and High and Low Speed Compression |
| Body Design | Threaded Body Screw Top (Coilover) |
| Body Material | Aluminum |
| Boot Included | No |
| Collapsed Length | 17.33 in. (440.2mm) |
| Extended Length | 26.2 in. (665.5mm) |
| Finish | Clear Anodized |
| Internal Design | Monotube |
| Lower Mount Type | 1/2 in. Heim |
| Piston Diameter | 46mm |
| Piston Type | Digressive/High Flow Linear |
| Vehicle Placement | Rear Left |
| Segment | Motorsports |
| Series | AS2-R Series |
| Shaft Diameter | 14mm |

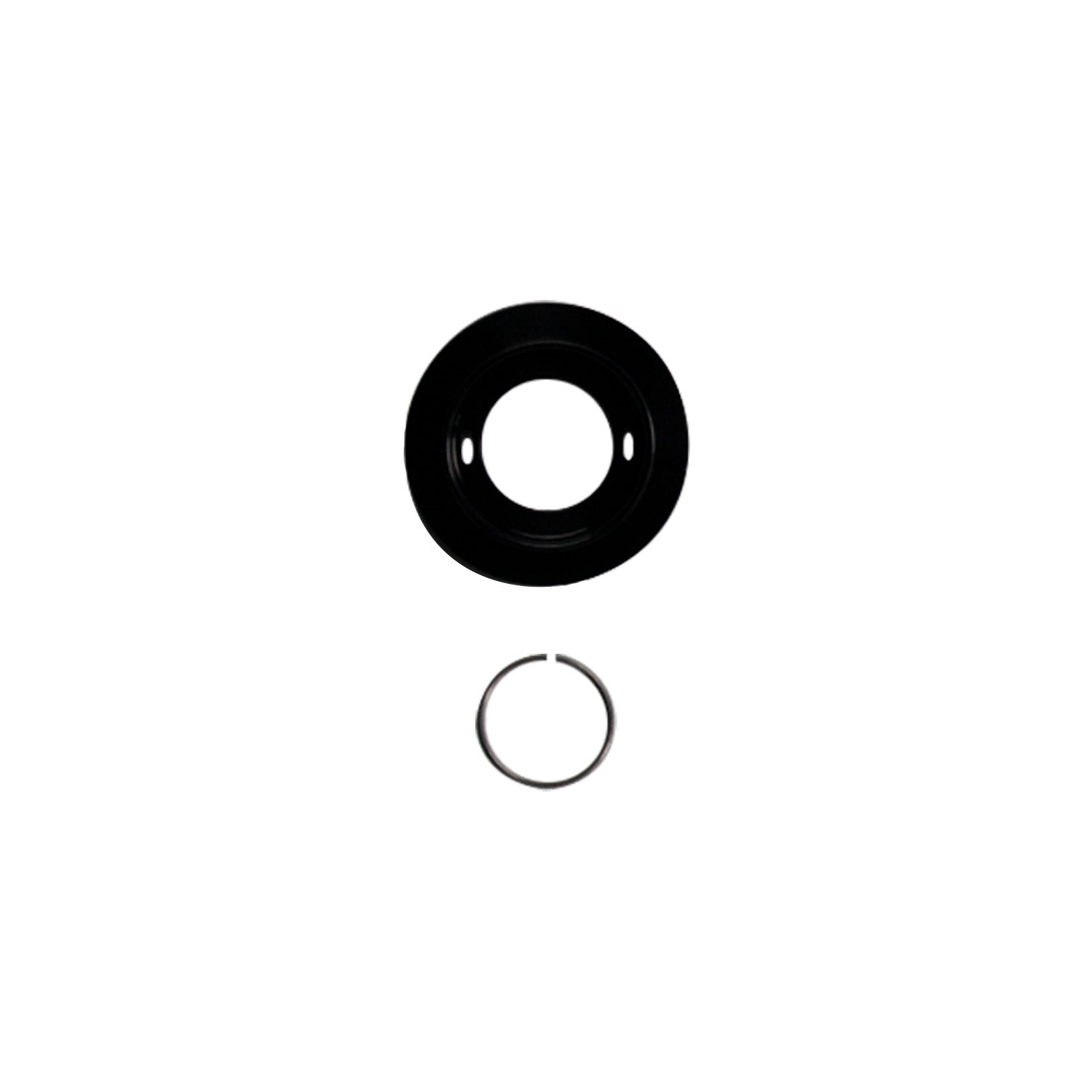

| Spring Seat Included | Yes |
| Stroke/Travel Length | 8.87 in. (225.3mm) |
| Upper Mount Type | 1/2 in. Heim |
