Product Details

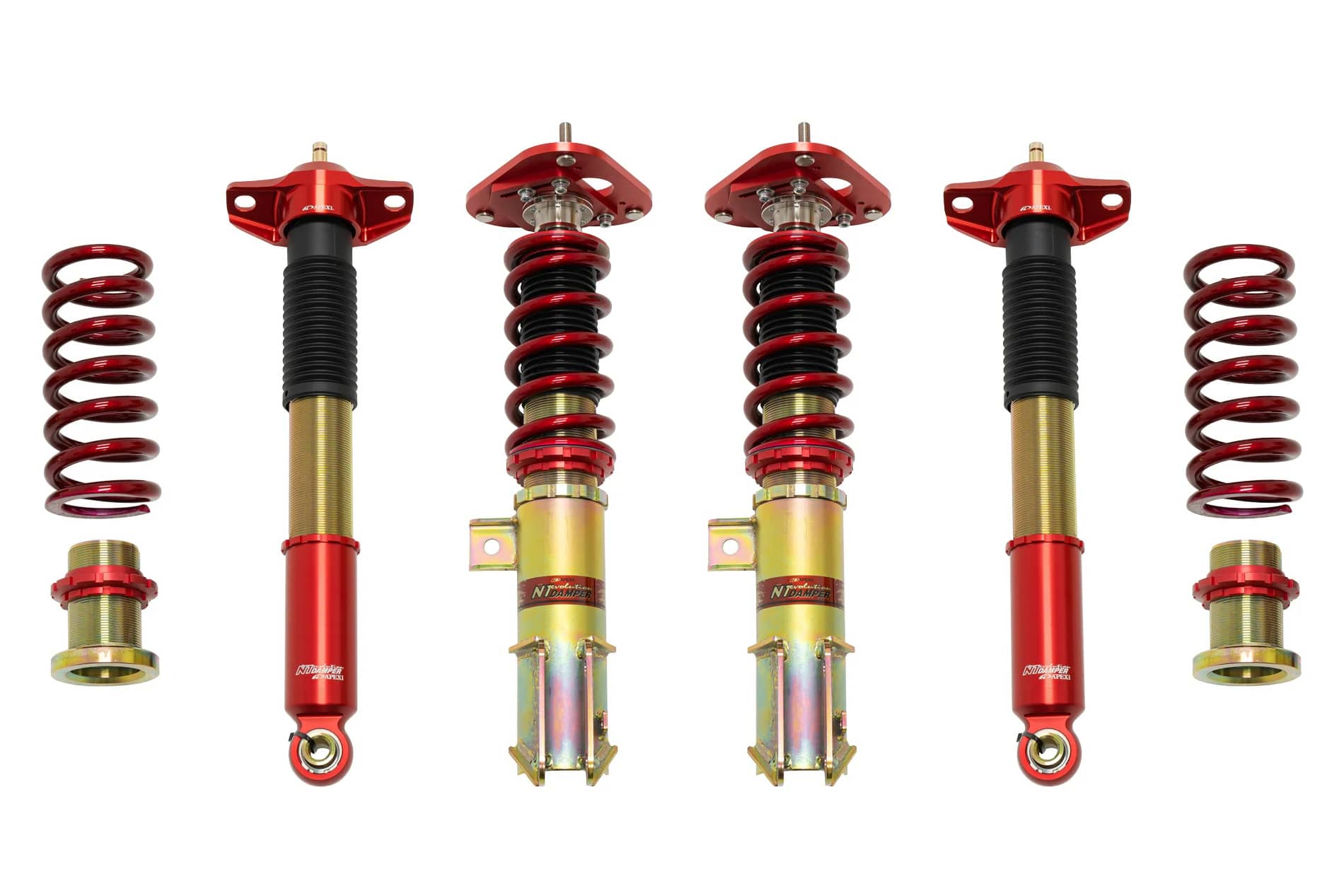

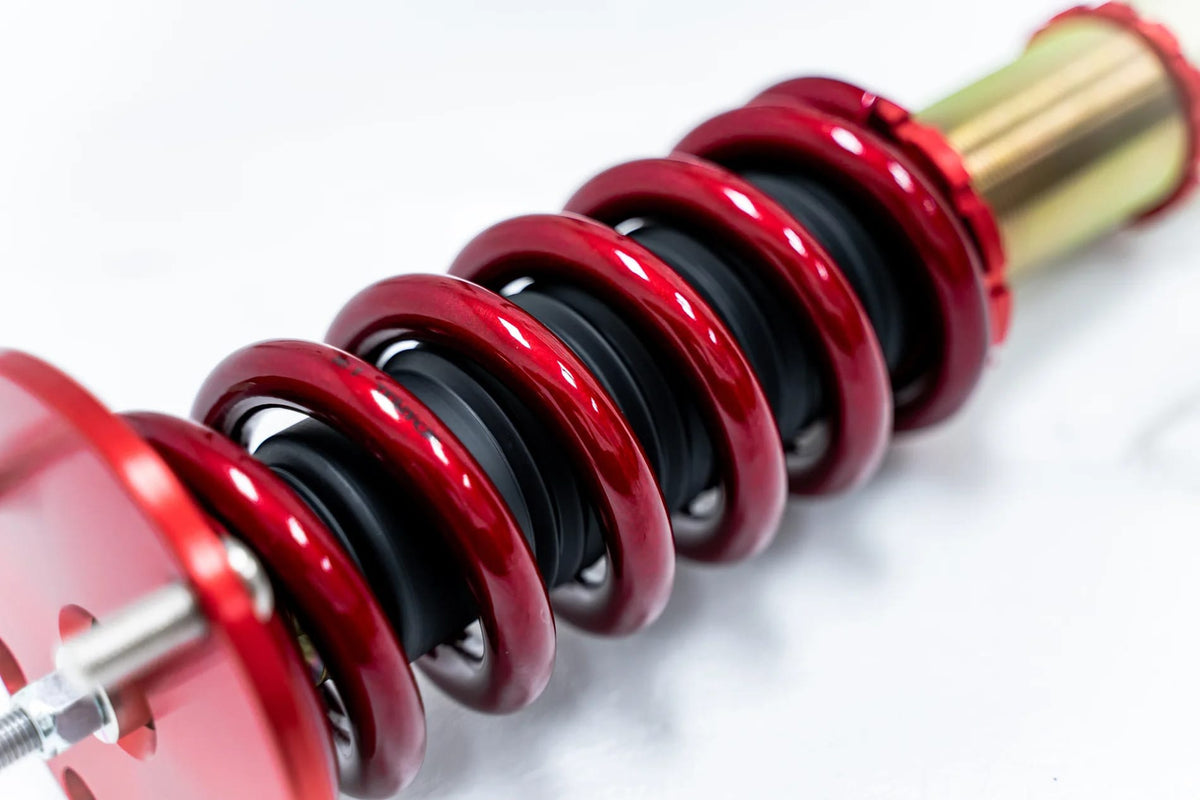

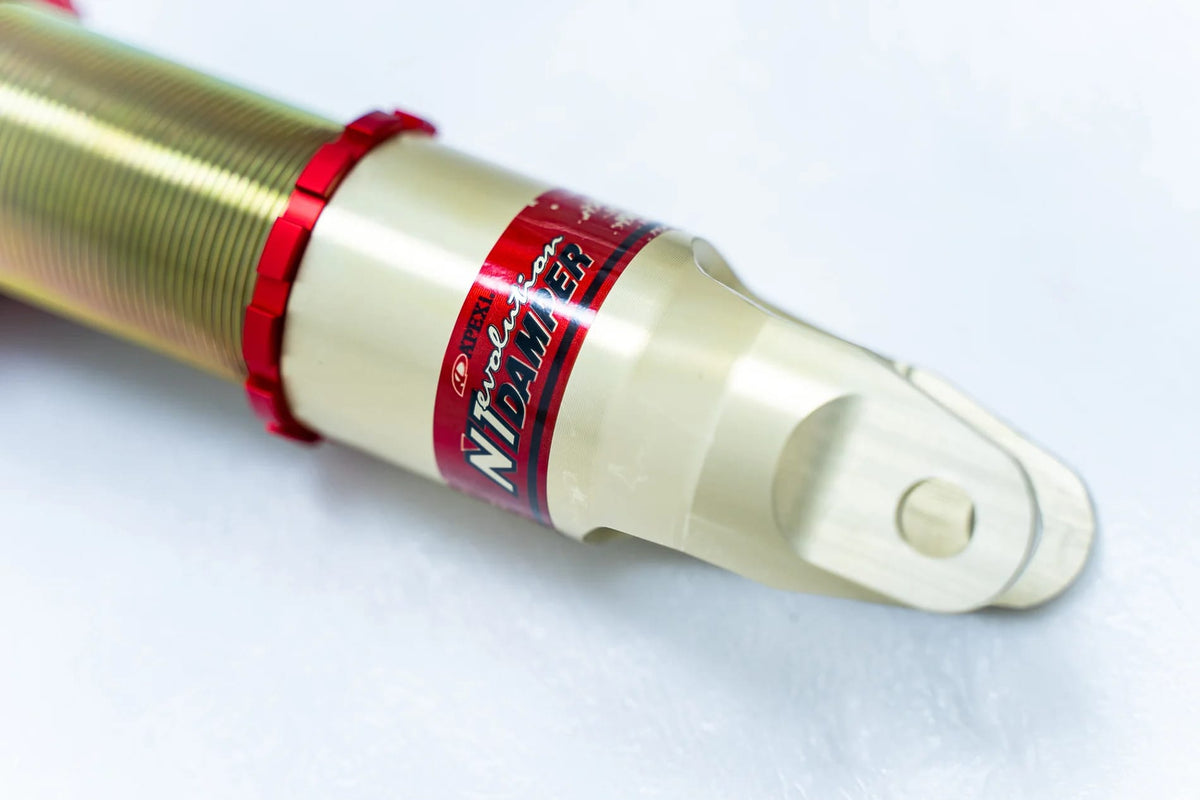

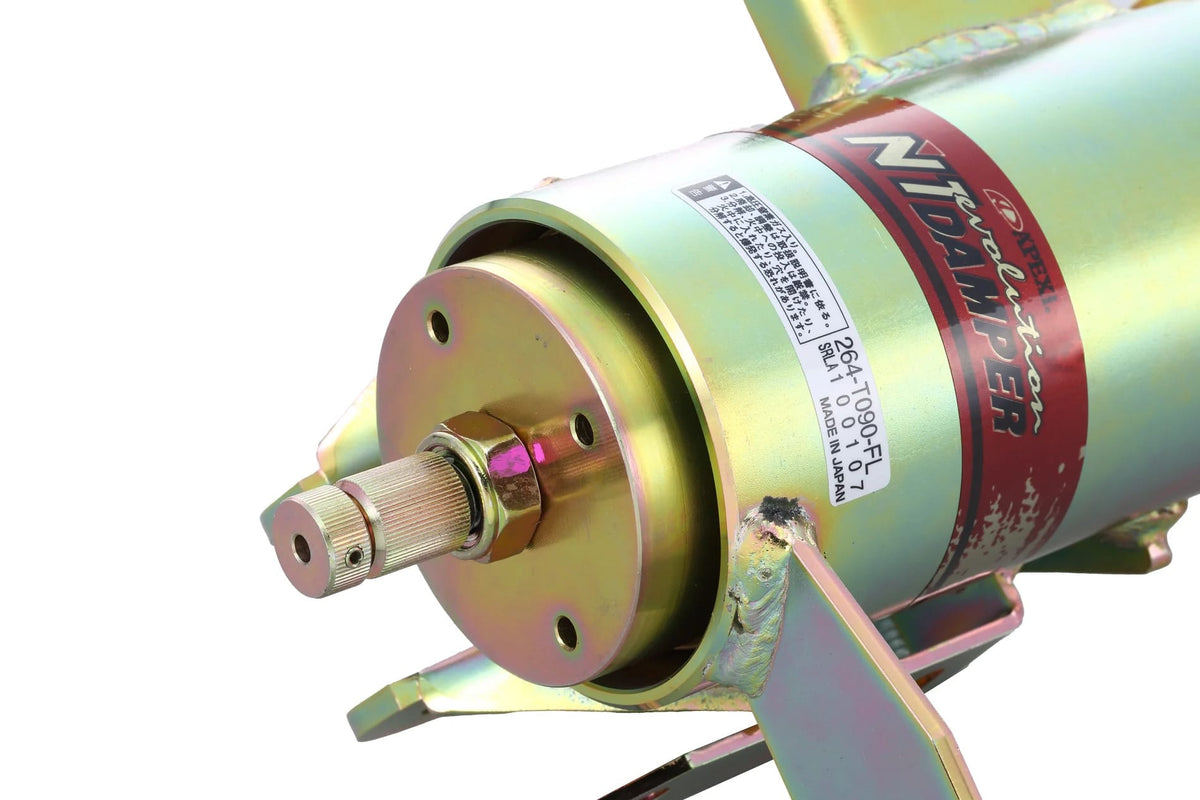

Upgrade your 2023+ Nissan Z with APEXi N1 Evolution Coilovers. The N1 Evolution Damper represents the pinnacle of APEXi suspension engineering, featuring a dedicated 46mm resin-bonded piston developed exclusively for this system. Precision-tuned spring rates and damping deliver exceptional handling and body control while maintaining usable ride quality for street driving.
The N1 Evolution Damper prioritizes damping control over raw stiffness, delivering confident handling on winding roads, stable control during spirited driving, and an excellent balance between comfort and performance. Available in Sports Standard specification for enthusiast street driving, or as a Special Order Setting with fully custom-built damping and spring rates tailored to specific motorsport disciplines — including circuit racing, drift, gymkhana, rally, and drag.
Every N1 Evolution kit features monotube construction for consistent fade-free performance, a threaded-body design for precise ride height adjustment, and high-performance upper mounts for improved steering response. Bolt-on installation with no modifications required. APEXi's factory overhaul and rebuild services keep your dampers performing at their peak for years to come.
Features
- 46mm resin-bonded piston — exclusive to the N1 Evolution series
- Monotube damper construction for consistent, fade-free performance

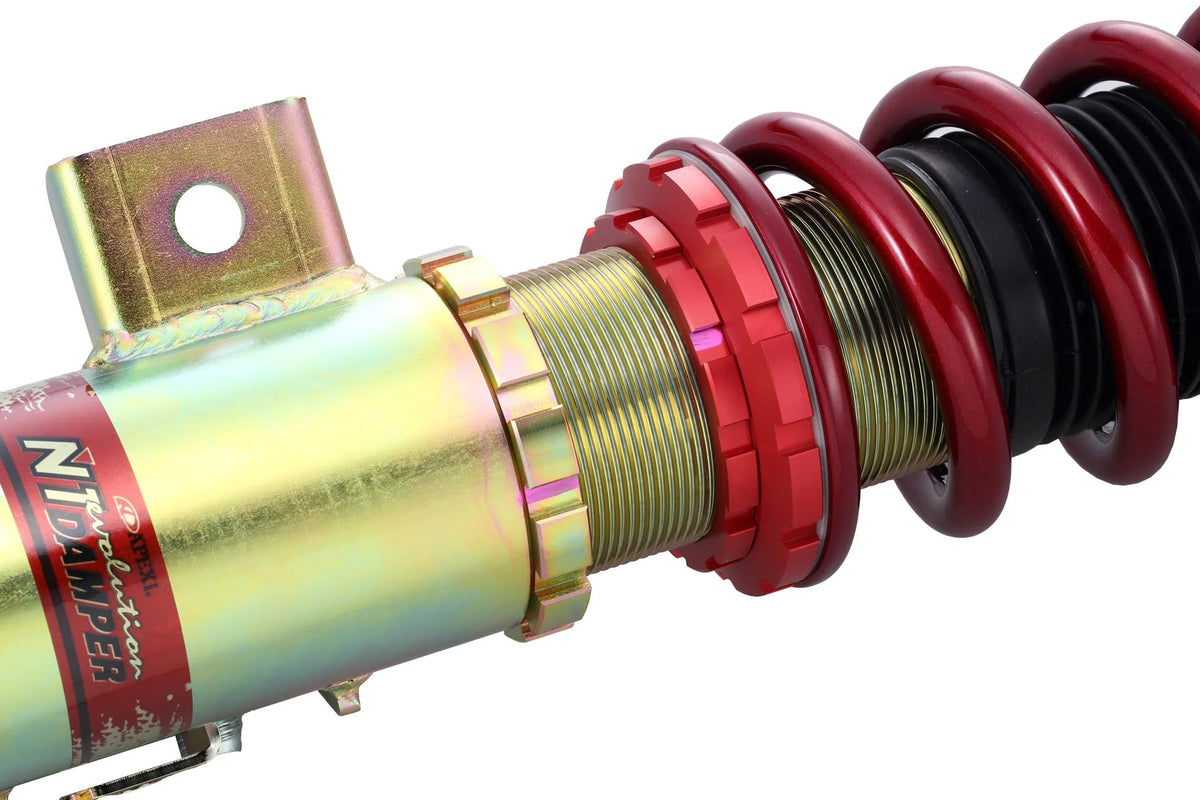

- Threaded-body design for precise ride height adjustment
- Available in Sports Standard or fully custom Special Order Setting

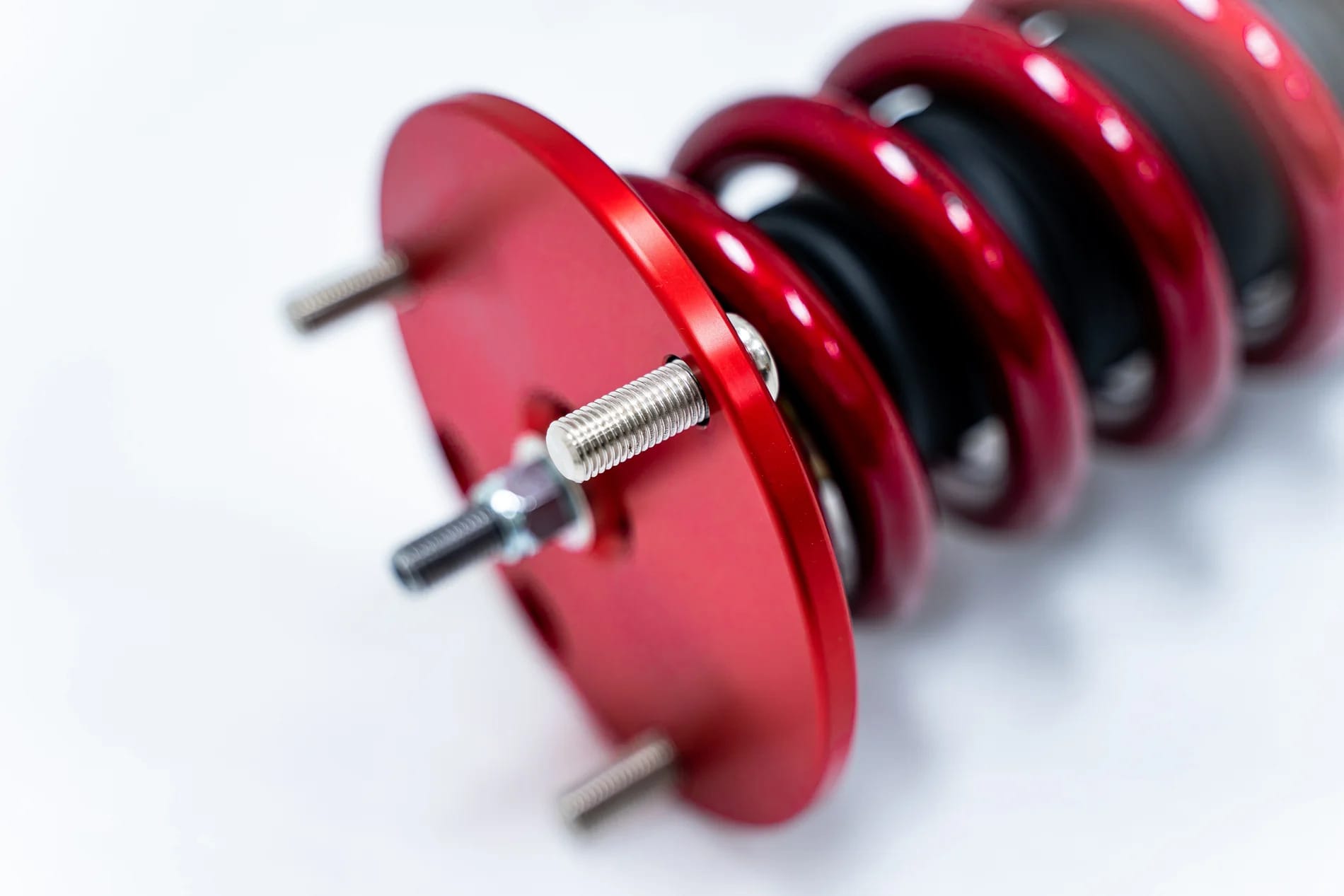

- High-performance upper mounts (pillow-ball and/or rubber bushing options)
- Camber adjustment plate included on applicable vehicles
- Factory overhaul and rebuild services available
Specifications
| Part Number | 264CN060 |
| Part Name | APEXi N1 Evolution Coilovers |
| Vehicle | 2023+ Nissan Z |
| Chassis Code | RZ34 |
| Engine | VR30DDTT |
| Damper Piston Diameter | 46mm |
| Damping Adjustment | 25 Levels |
| Spring Rate - Front | 12K |
| Spring Rate - Rear | 10K |
| Spring Length - Front | 9" |
| Spring Length - Rear | 8" |
| Suspension Design - Front | True Coilover |
| Suspension Design - Rear | Divorced |
| Camber Adjustment - Front | Not applicable |
| Camber Adjustment - Rear | Not applicable |
| Ride Height Adjustment - Front | +10 ~ -78mm |
| Ride Height Adjustment - Rear | +2 ~ -55mm |
Vehicle Fitment
- 2023 Nissan Z (RZ34)
- 2024 Nissan Z (RZ34)
- 2025 Nissan Z (RZ34)
