Product Details
The 360 Bearing Upper is a bearing-equipped upper spring seat. As the suspension strokes, a spring winds and unwinds, and that twist fights the damper instead of letting it work. The bearing lets the spring rotate freely, so the stroke is smoother, the spring feels softer, and ride quality improves. It also quiets the creak strut cars make when the steering is turned. Supplied as a pair with two Super Thrust Sheets included.
Why Use a 360 Bearing?
- Removes spring twist resistance, so the damper works against the road instead of the spring
- Smoother stroke and a softer ride without changing spring rate
- Quiets the steering creak strut cars are known for

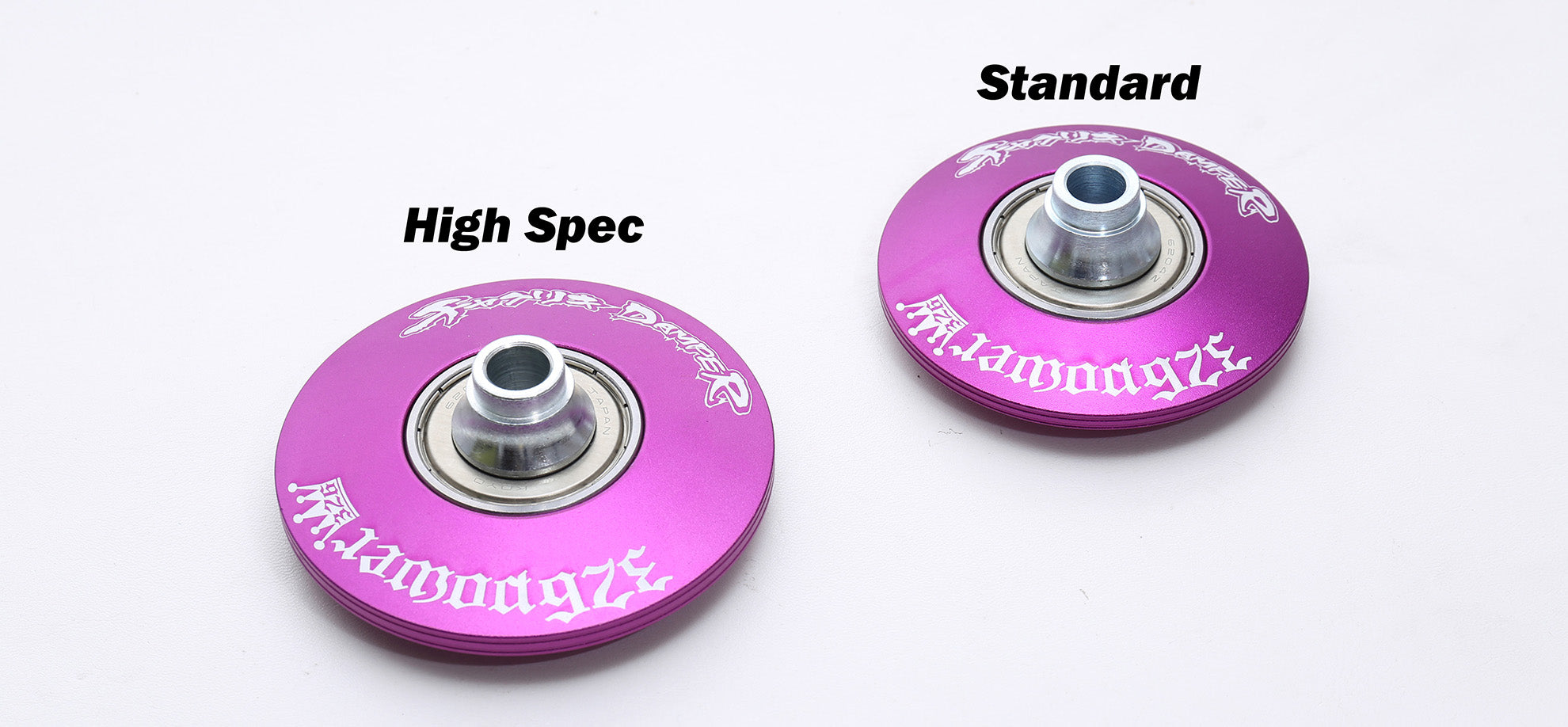

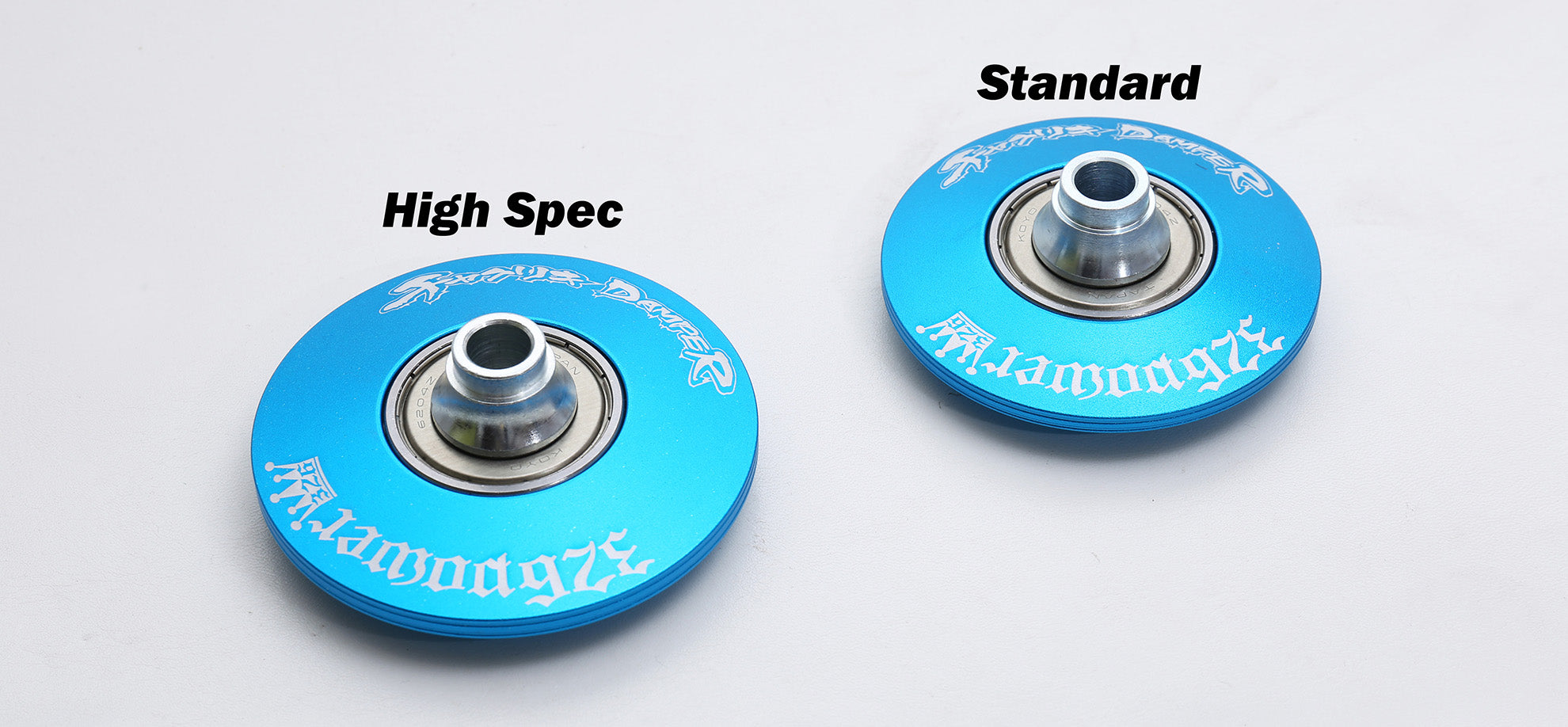

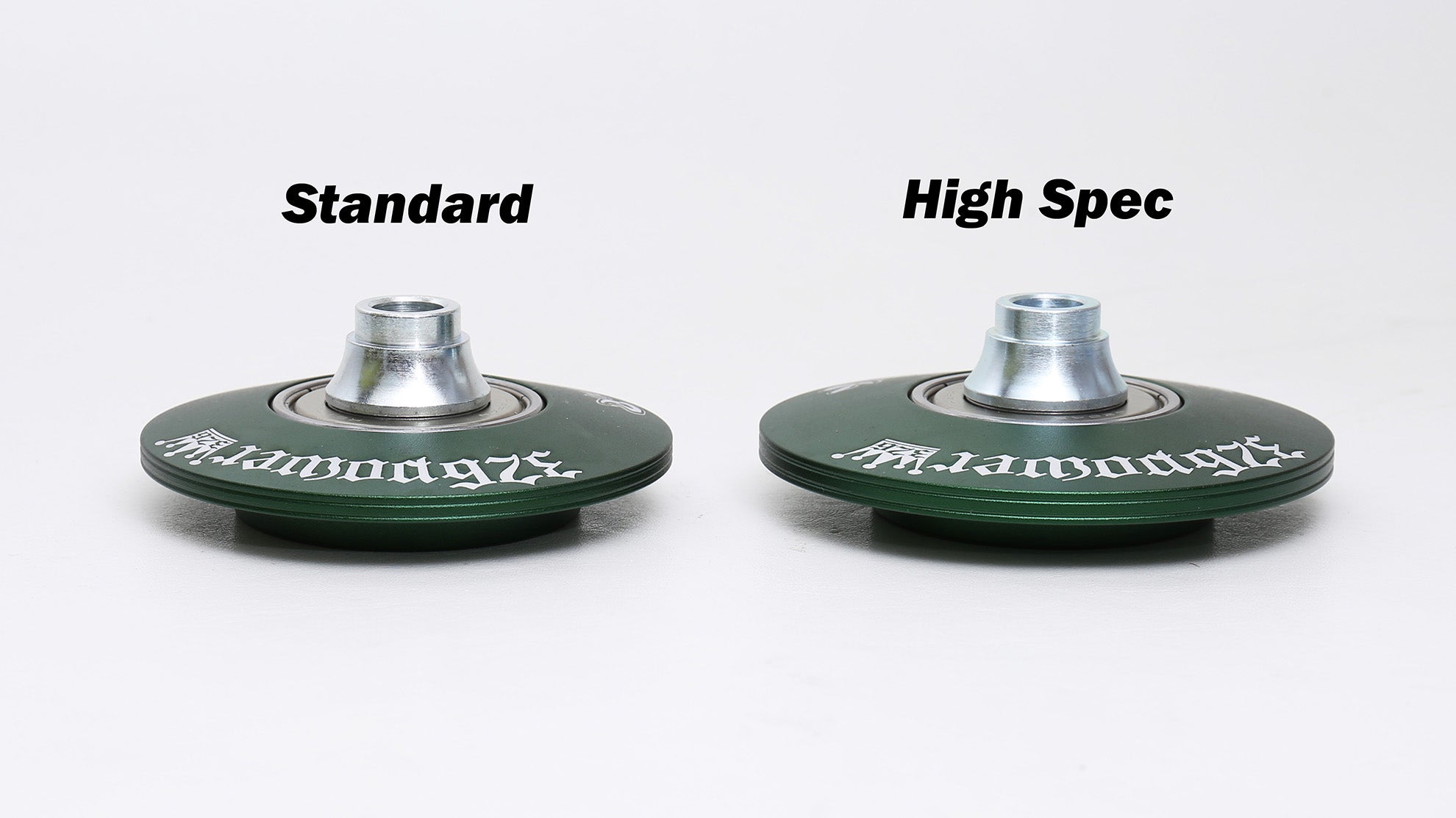

- Standard measures roughly 88mm across and 35mm tall; High Spec roughly 98mm and 37mm
- Includes two Super Thrust Sheets
Fitment note: some cars cannot take an upper seat at the rear, including the RB1 Odyssey, Mazda MX-5 Miata (NA through ND) and RX-8. Where 34mm of space is available, 326POWER recommends fitting two 360 Bearing Lowers, one at each end of the spring, instead.
Specifications
| Part Name | 326POWER 360 Bearing (Upper) |
| Position | Upper Spring Seat |
| Standard Dimensions | Approx. 88mm diameter, 5.5mm thick, 35mm tall |
| High Spec Dimensions | Approx. 98mm diameter, 5.7mm thick, 37mm tall |
| Included | 2 Bearings, 2 Super Thrust Sheets |
| Color | Supplied at random, not selectable |
| Space Required | 17mm per bearing |
| Material | Anodized Aluminum |
| Country of Origin | Japan |
| Quantity | 2 Bearings (Pair) |

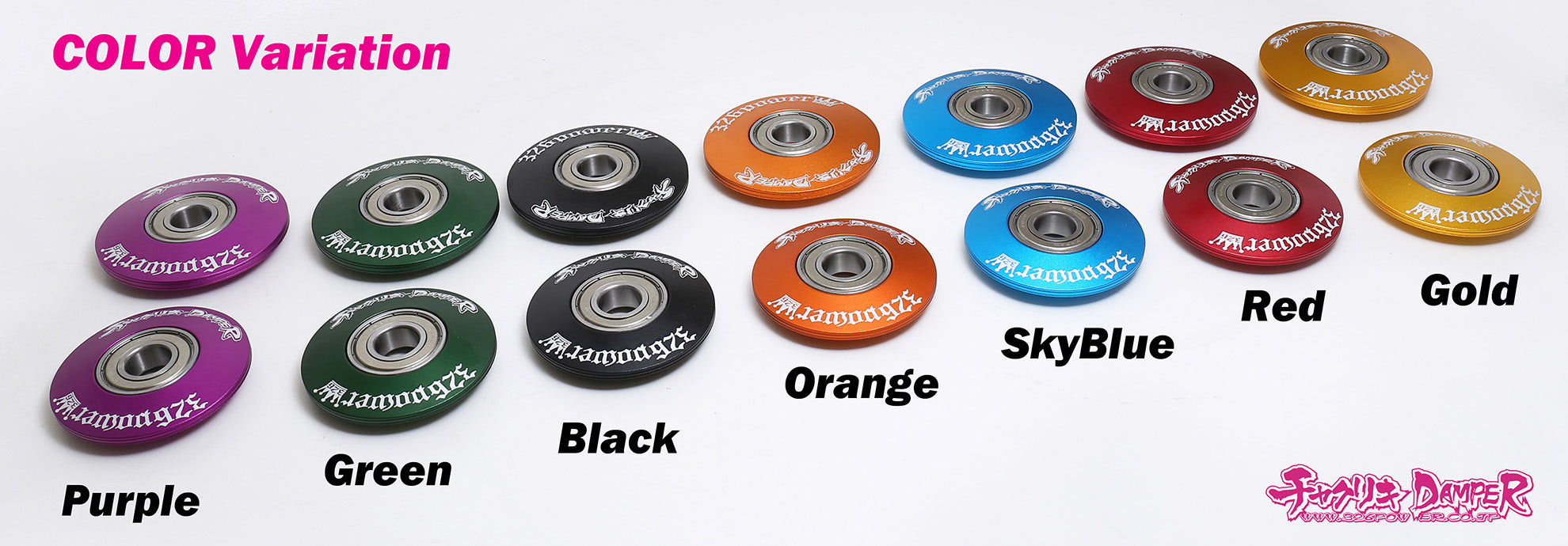

| Note | Colors supplied at random from purple, green, black, orange, sky blue, red and gold. Pair it with the 360 Bearing Lower for the full effect. |
