Product Details

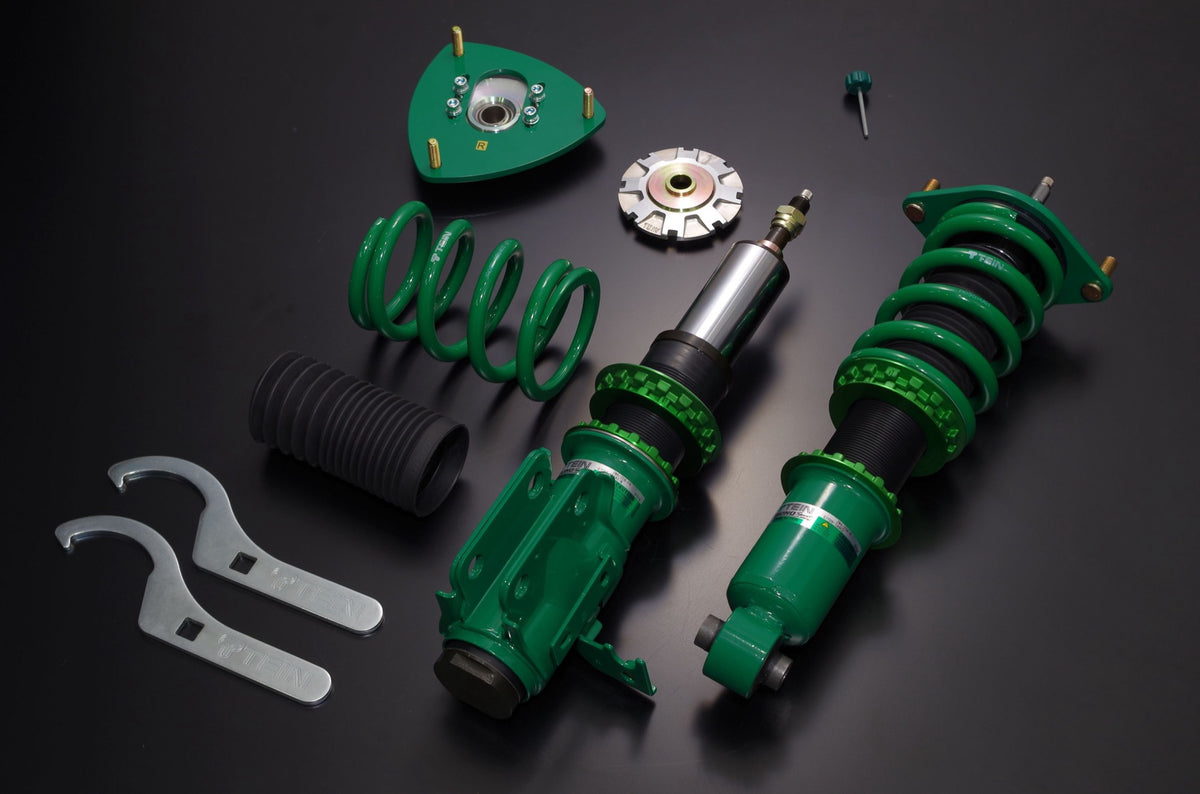

The TEIN Mono Sport Coilovers for the 2022-2026 Toyota GR86 (ZN8) are tuned for driving pleasure on winding roads and track days, yet stay comfortable enough for the street thanks to a wide range of damping adjustment. Ride height changes with little or no change in ride quality.
Mono Sport uses a monotube damper for consistent oil stability and linear damping, with TEIN's ADVANCE M.S.V. sub-valve system to widen the adjustable range. The dampers can be fully disassembled, so TEIN's revalving service is available, and the kit is backed by TEIN's 1-year warranty.
Features
- 16-Level Damping Adjustment - Compression and rebound together, with ADVANCE M.S.V. for a wider adjustable range.
- Monotube Damper - Consistent oil stability and linear damping.
- Fully Rebuildable - TEIN's revalving service can change the damping to your preference.
- Upper Mounts Included - Vehicle-specific reinforced rubber or pillowball mounts; pillowball front mounts add camber adjustment.
- Full-Length Ride Height Adjustment - Includes an adjusting wrench.
- EDFC Compatible - Works with TEIN EDFC controllers (sold separately).
- Rustproof Finish - TEIN green powder coat on the mounts and brackets.
Specifications
| Part Number | GSTD8-71SS4 |
| Part Name | TEIN Mono Sport Coilovers |
| Vehicle | 2022-2026 Toyota GR86 |
| Quantity | 4 Coilovers (2 Front, 2 Rear) |
| Placement | Front & Rear |
| Chassis Code | ZN8 |
| Drivetrain | RWD |
| Damping Adjustment | 1-Way (16 levels) |
| Ride-Height Adjustable | Yes |
| Spring Rate - Front | 8 kg/mm (448 lbs/in) |
| Spring Rate - Rear | 9 kg/mm (504 lbs/in) |
| Top Mounts - Front | Camber Adjustable Mount |
| Top Mounts - Rear | Reinforced Rubber Mount |
| Ride Height Range - Front | -0.2 to -2.2 in |
| Ride Height Range - Rear | -0.2 to -3.7 in |
| EDFC Compatible | Yes |
| Notes | Rear: interior needs to be cut or removed, to avoid interference. |
