Product Details
These Fortune Auto 500 Series Super Low coilovers fit the 1985-1991 BMW 3 Series Weld On.
The Fortune Auto 500 Series Super Low Coilovers for the 1985-1991 BMW 3 Series Weld On (E30) are purpose-built for aggressive fitment and stance while maintaining ride quality. These E30 3 coilovers feature Fortune Auto's Generation 8 monotube damper technology with 24-step adjustable damping and extended drop capability, giving you full control over your BMW 3 Series Weld On suspension setup. Custom-built and dyno-tested in the USA, every set is matched specifically for your E30 and backed by a 5-year limited warranty.
Generation 8 Technology
- High Flow Digressive™ Pistons — Lightweight billet construction for maximum damper sensitivity and the perfect balance of comfort and control
- Extended Drop Capability — Designed for aggressive lowering while maintaining full damper stroke and ride quality
- Radial Bearing Mounts — Koyo Japan bearings for noise-free operation and smoother steering response (MacPherson applications)
- Premium Chrome Silicon Springs — Superior alloy for better performance, longevity, and ride quality
- Bright Dip Anodized Components — Chemical polishing process that protects against corrosion and oxidation

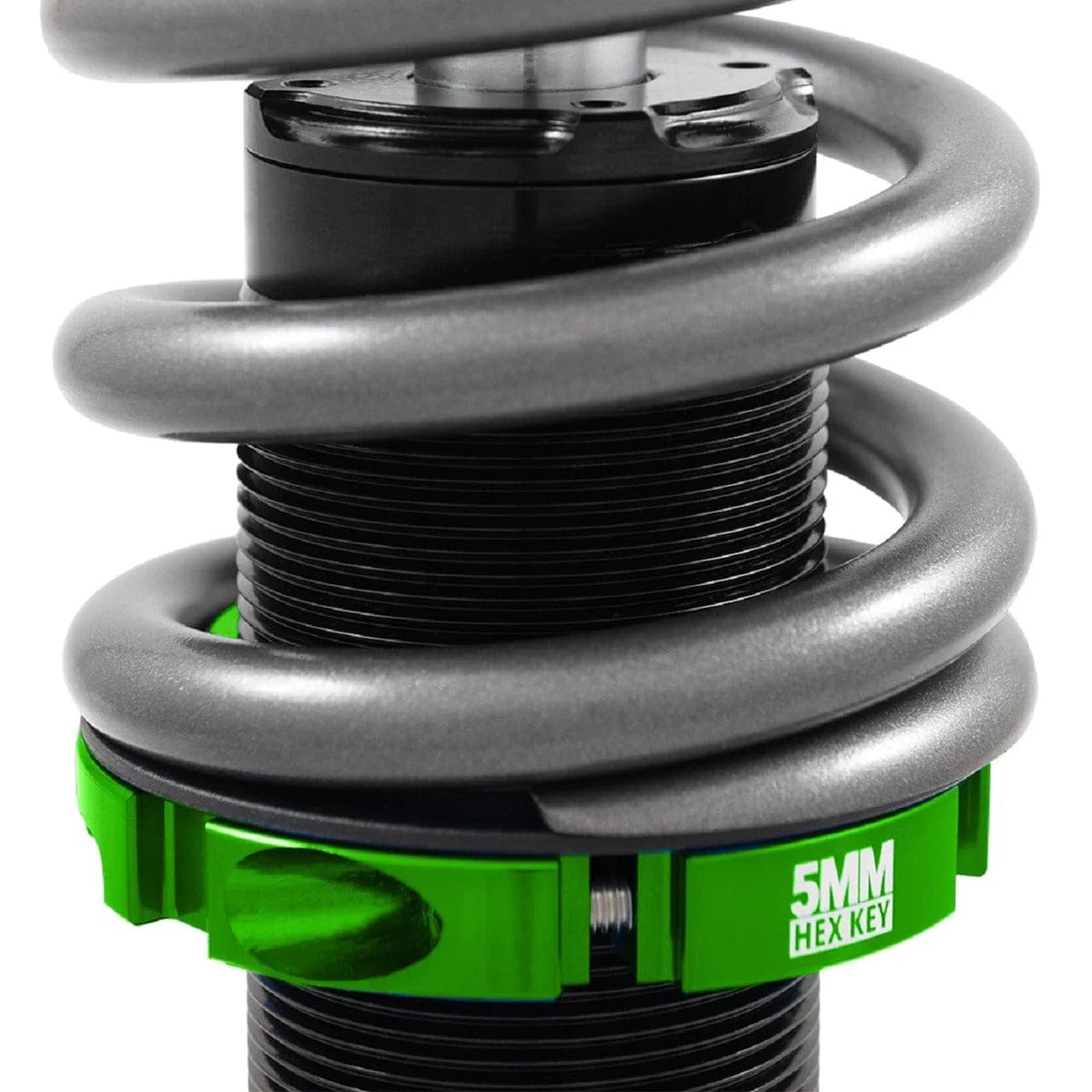

- Laser Etched Hardware — Top plates, spring perches, and locking rings labeled with hex key sizes for easy setup
- Lower Mount Locking Ring Clamps — Now standard for easier adjustment and less prone to coming loose in high mechanical grip applications
Features
- FA Synthetic Shock Oil
- High Flow Digressive Piston Technology™
- Extended Drop Capability for Aggressive Fitment
- Lower Mount Locking Ring Clamps
- Radial Bearing Mounts Standard on MacPherson Applications
- Premium Chrome Silicon Springs
- Custom Built and Dyno Tested
- 5 Year Limited Manufacturer's Warranty
- 24-Step Adjustable Dampers
- Monotube Damper with High Pressure Nitrogen
- T6 6061 Aluminum Mounts and Camber Plates
- Rebuildable and Revalveable at our Facility in the USA
- Modularity – Upgradeable to 2-Way or 3-Way Canister
Specifications
| Part Number | FA500SL-E30 |
| Part Name | 500 Series Super Low Coilovers |
| Vehicle | 1985-1991 BMW 3 Series Weld On |
| Chassis Code | E30 |
| Drivetrain | RWD |
| Spring Rate - Front | 10 Kg/mm |
| Spring Rate - Rear | 12 Kg/mm |
| Custom Spring Rates Available? | Y - Hyperco Included |
| Suspension Design - Front | True Coilover |
| Suspension Design - Rear | Divorced |
| Damping Adjustment | 1-Way (24-Step) |
| Ride-Height Adjustable | Yes |
| Spring Type | Chrome Silicon |
| Camber Plates Included | Yes - Front |
| Notes | Front Requires Welding |
